Multiplex Communication System - CAN for 3MZ-FE: Notes

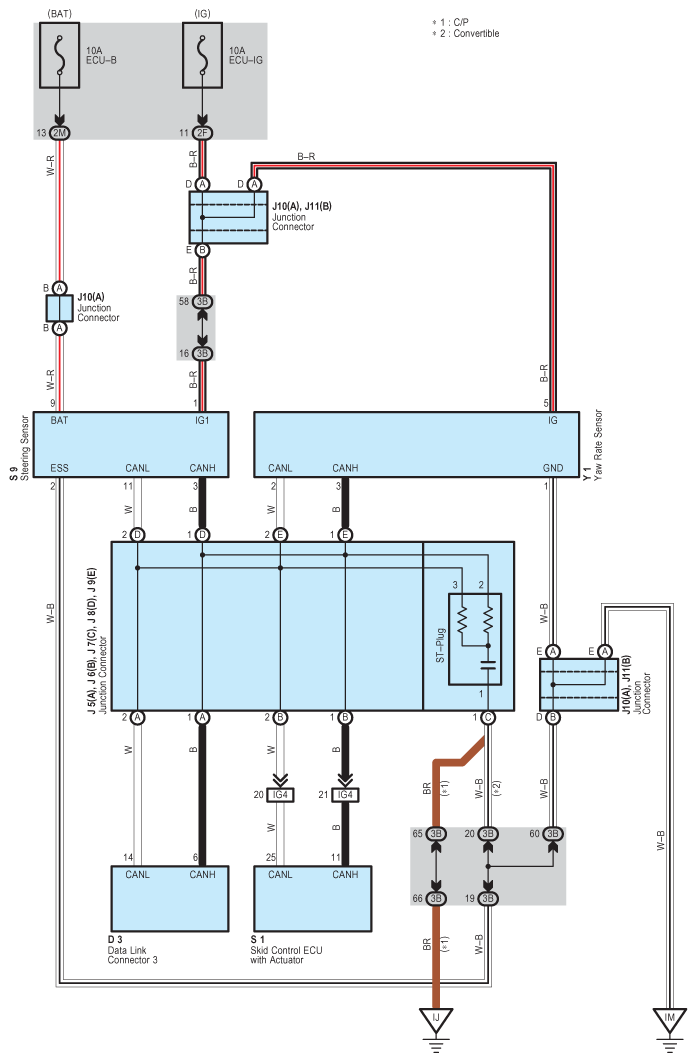

Fig 1: Multiplex Communication System Wiring Diagram - CAN (3MZ-FE)

G08787957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
