Multiplex Communication System - CAN for 2AZ-FE: Notes

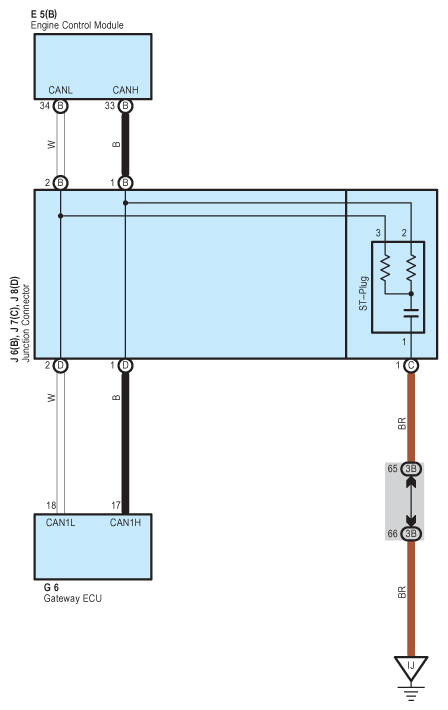

Fig 1: Multiplex Communication System Wiring Diagram - CAN (2AZ-FE)

G08787958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
