Light Auto Turn Off System: Notes

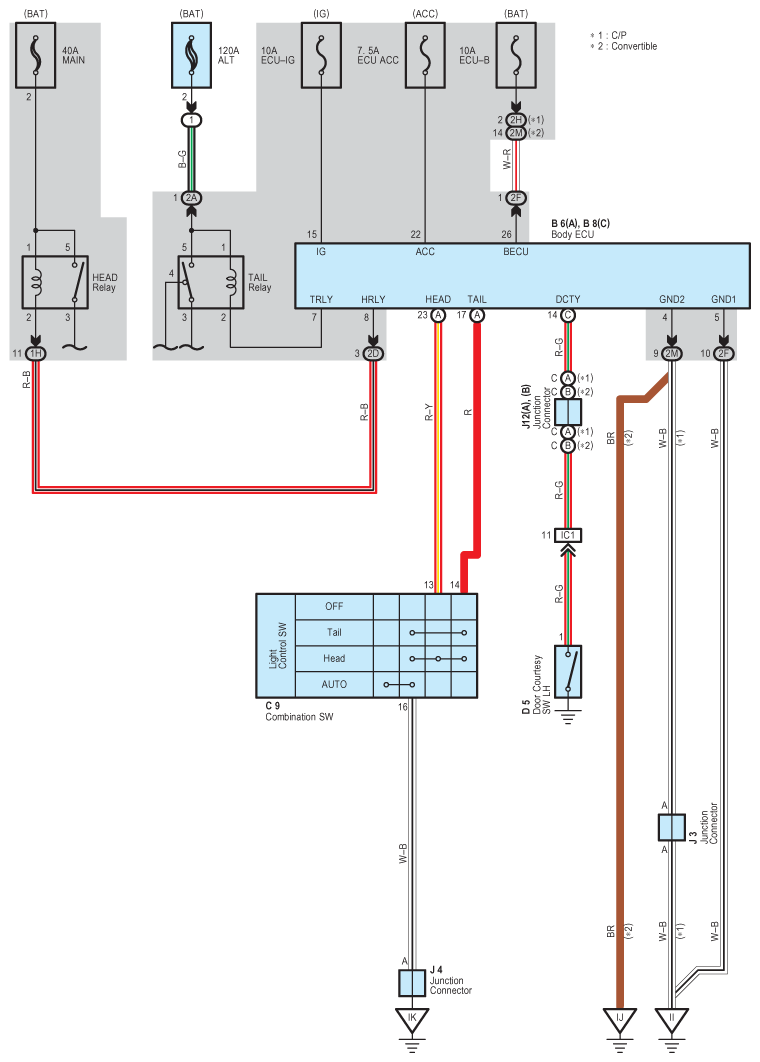

Fig 1: Light Auto Turn Off System Wiring Diagram

G08787965

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
