OEM System Circuits: Headlight: Notes

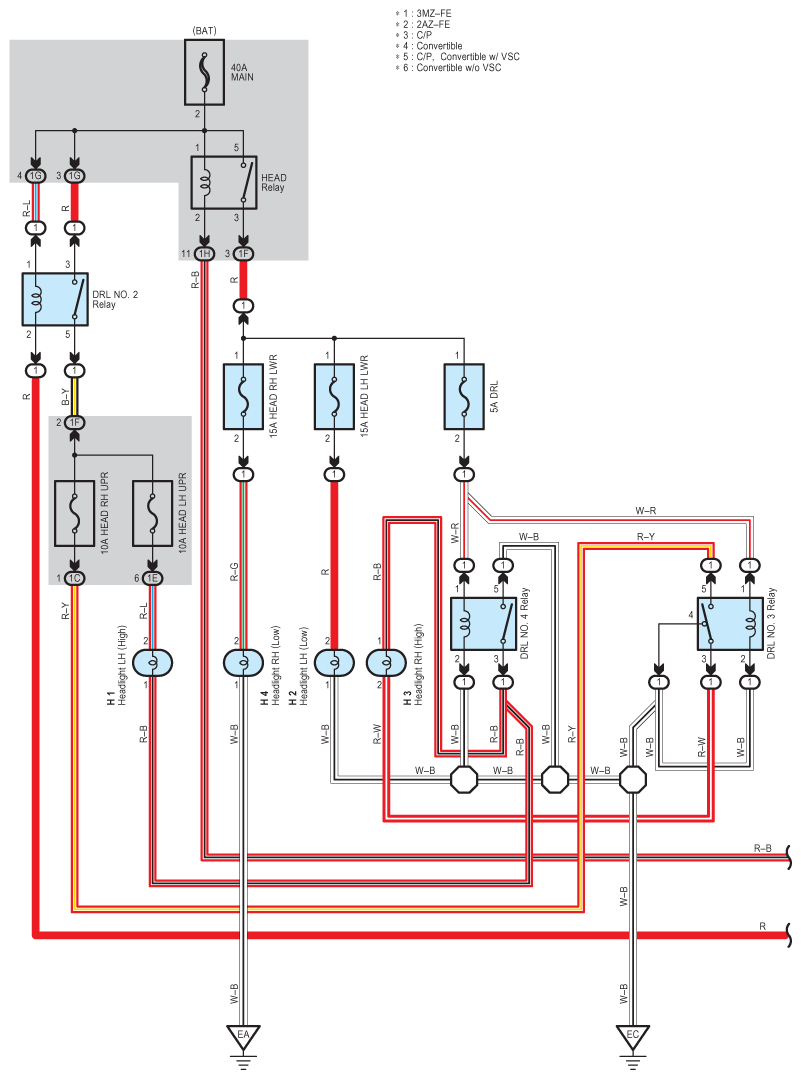

Fig 1: Headlight System Wiring Diagram (1 Of 2)
G08787961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

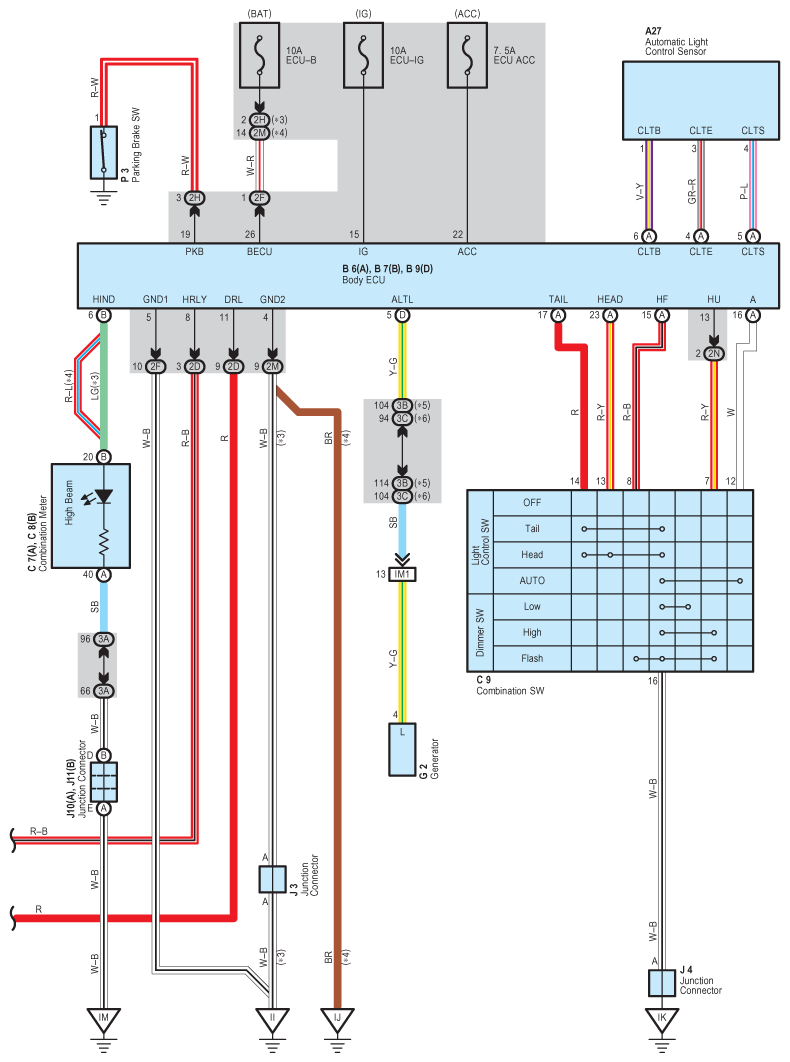

Fig 2: Headlight System Wiring Diagram (2 Of 2)
G08787962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
