Cruise Control for 3MZ-FE: Notes

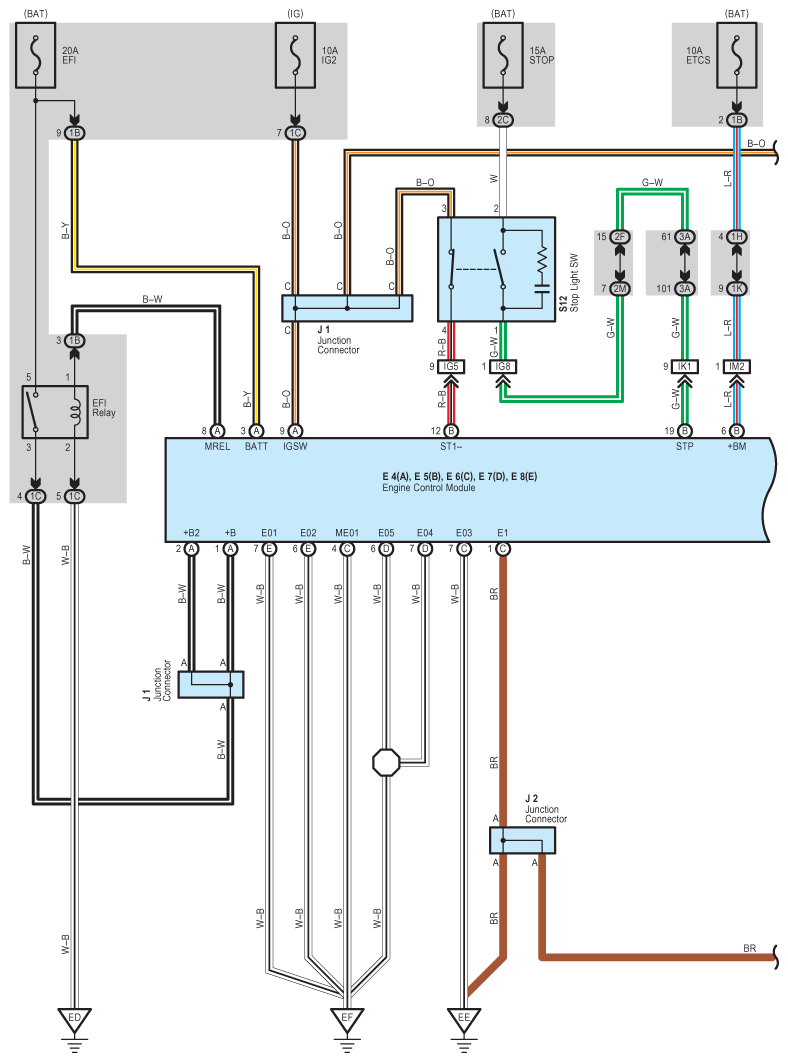

Fig 1: Cruise Control System Wiring Diagram (3MZ-FE; 1 Of 4)
G08788007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

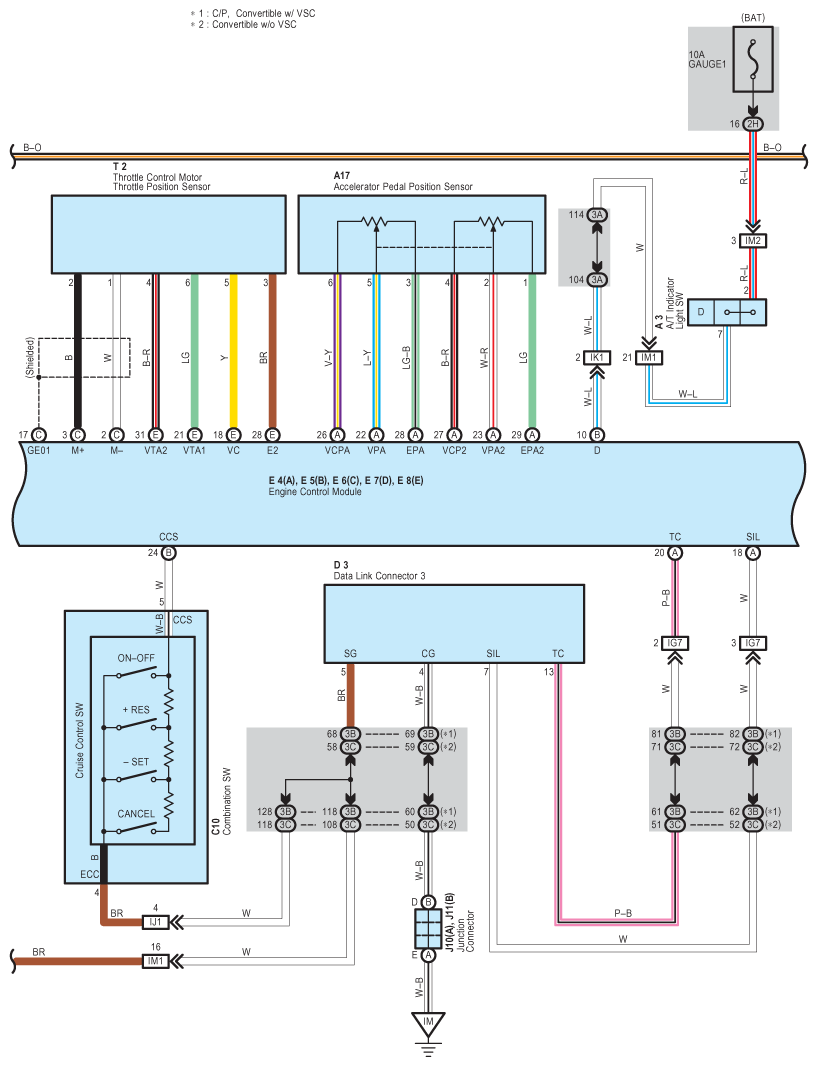

Fig 2: Cruise Control System Wiring Diagram (3MZ-FE; 2 Of 4)
G08788008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

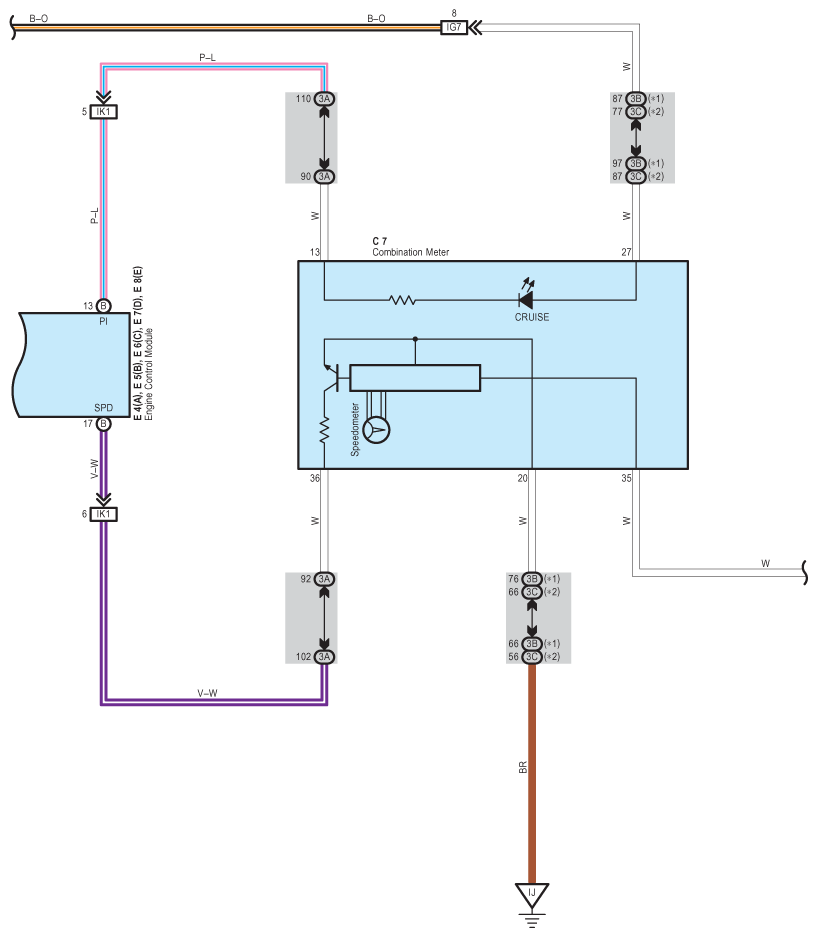

Fig 3: Cruise Control System Wiring Diagram (3MZ-FE; 3 Of 4)
G08788009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

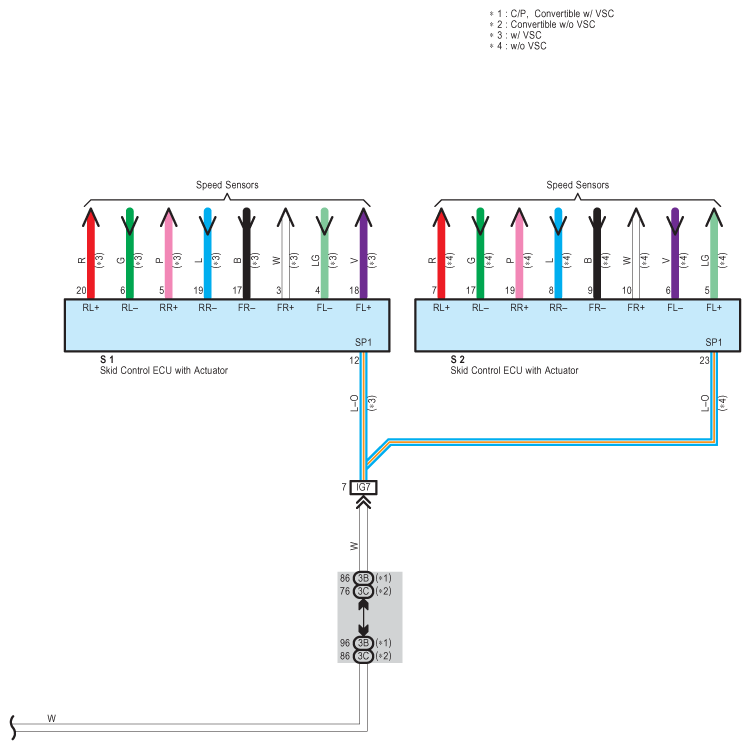

Fig 4: Cruise Control System Wiring Diagram (3MZ-FE; 4 Of 4)
G08788010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
