Convertible Roof and Power Window: Notes

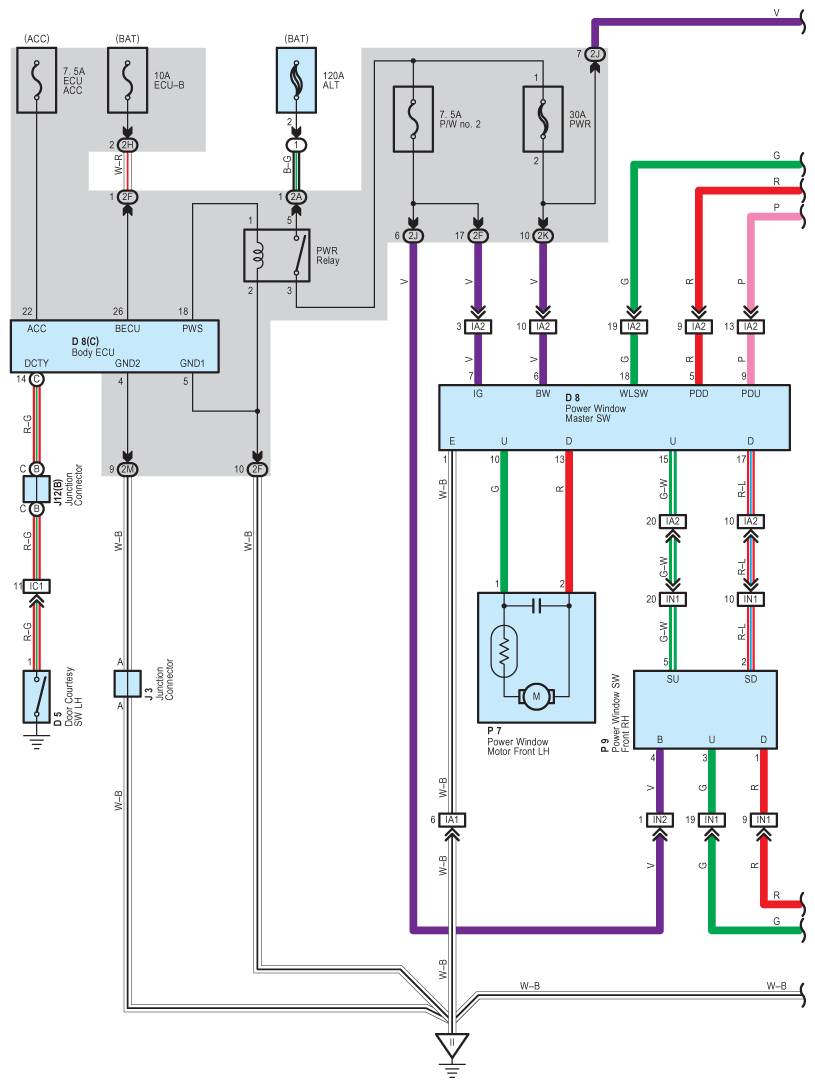

Fig 1: Convertible Roof And Power Window System Wiring Diagram (1 Of 4)
G08787989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

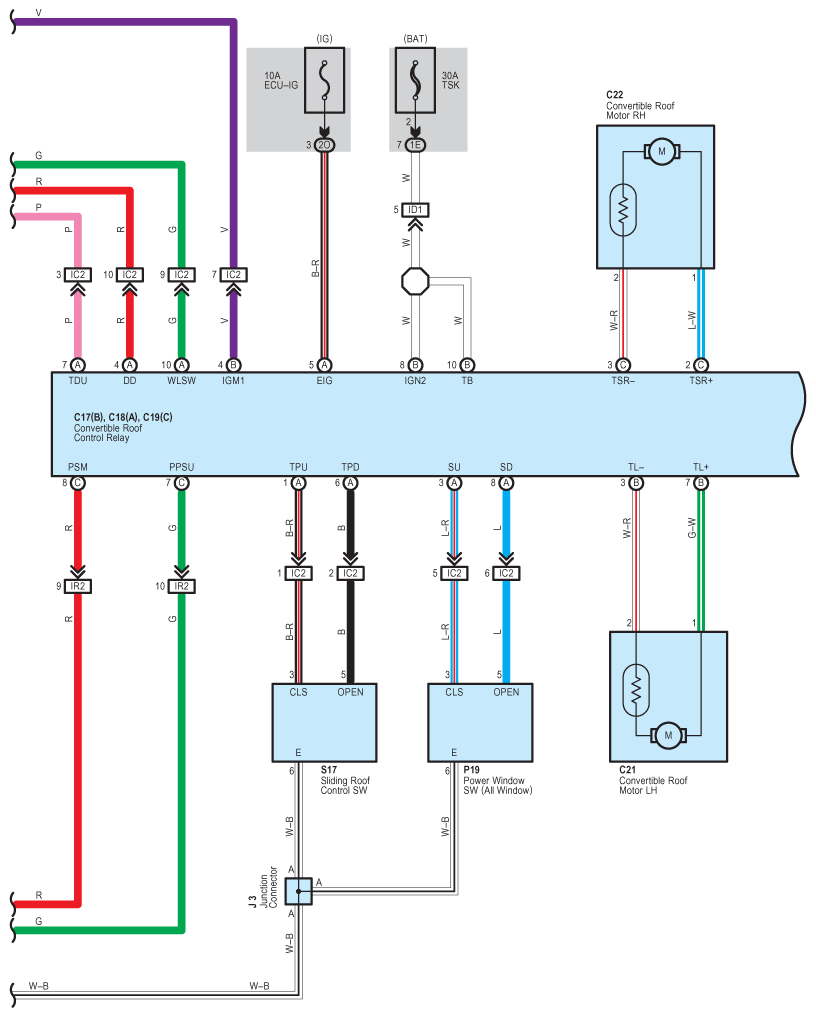

Fig 2: Convertible Roof And Power Window System Wiring Diagram (2 Of 4)
G08787990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

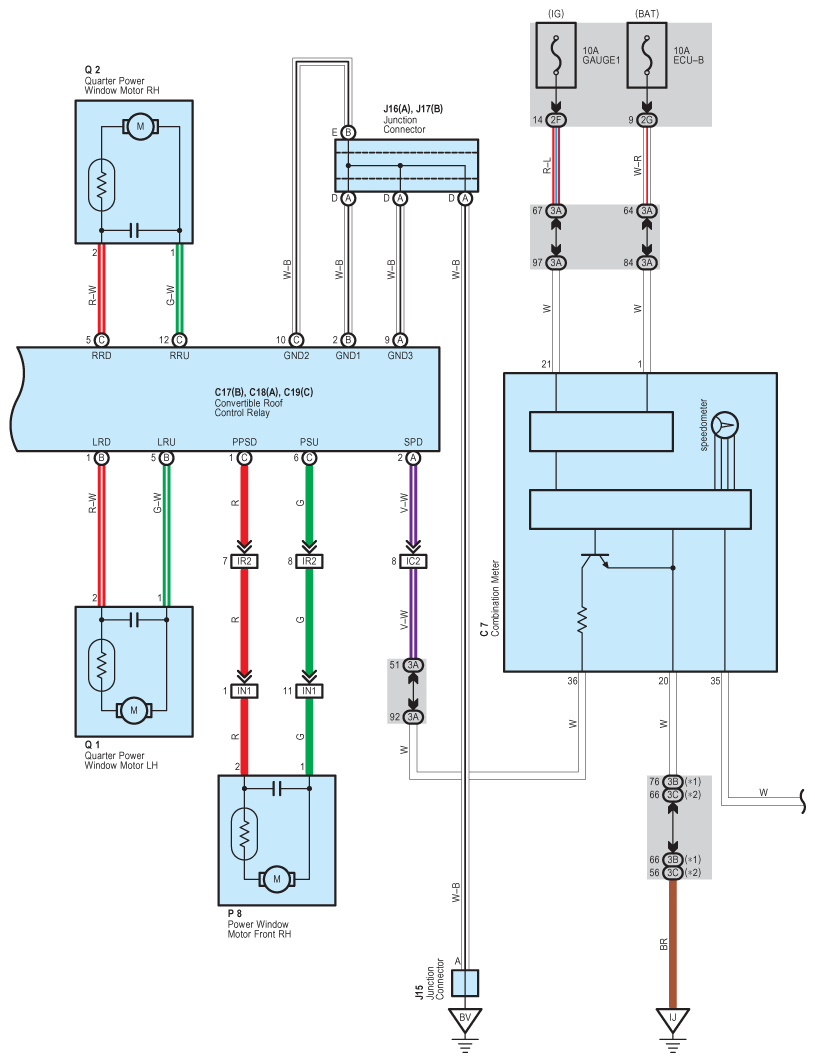

Fig 3: Convertible Roof And Power Window System Wiring Diagram (3 Of 4)
G08787991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Convertible Roof And Power Window System Wiring Diagram (4 Of 4)
G08787992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
