OEM System Circuits: Clock: Notes

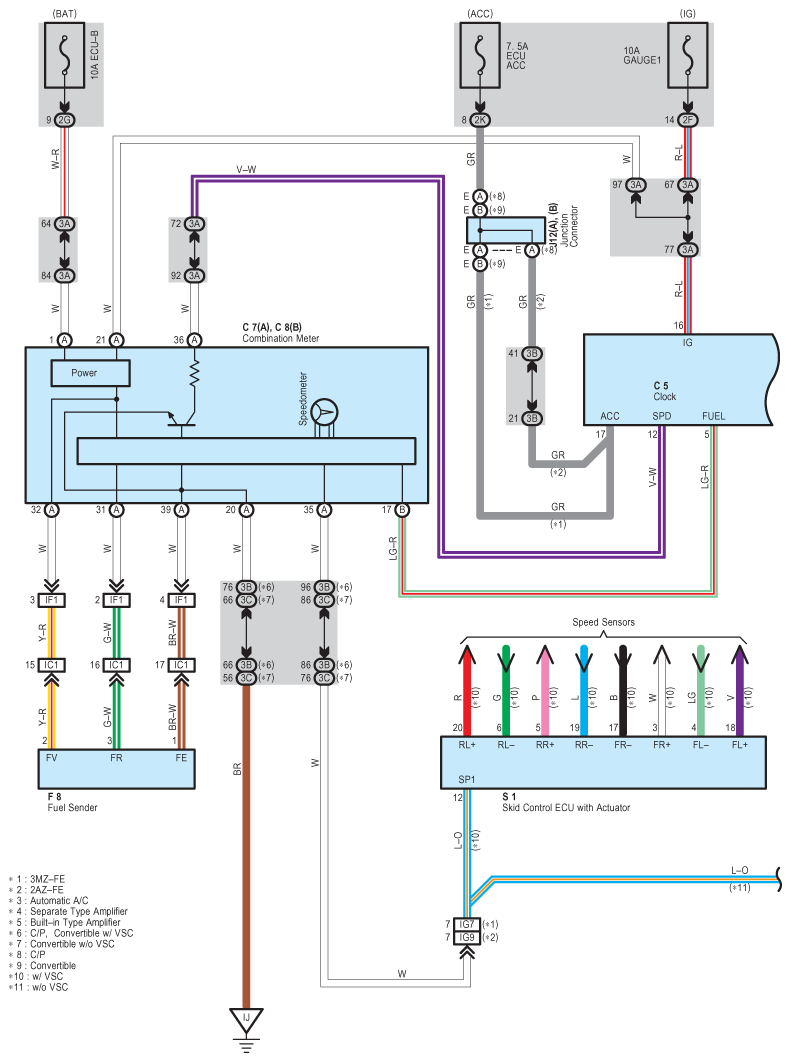

Fig 1: Clock System Wiring Diagram (1 Of 3)
G08788037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

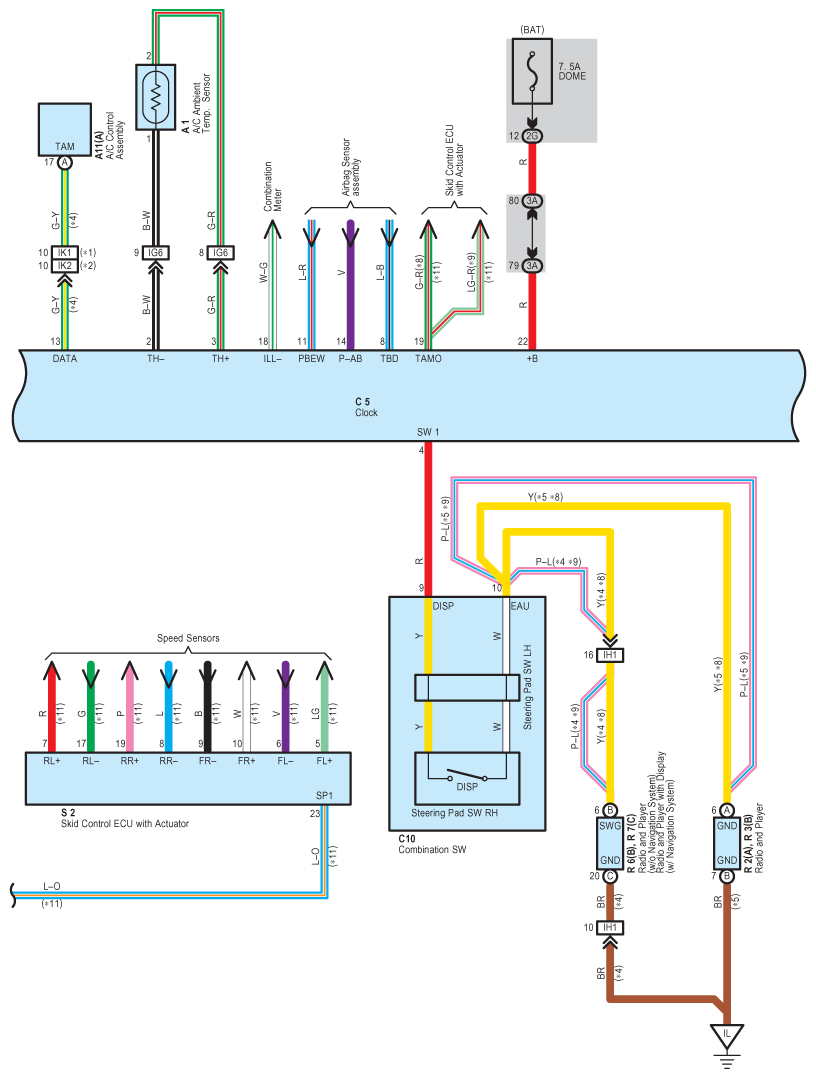

Fig 2: Clock System Wiring Diagram (2 Of 3)
G08788038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

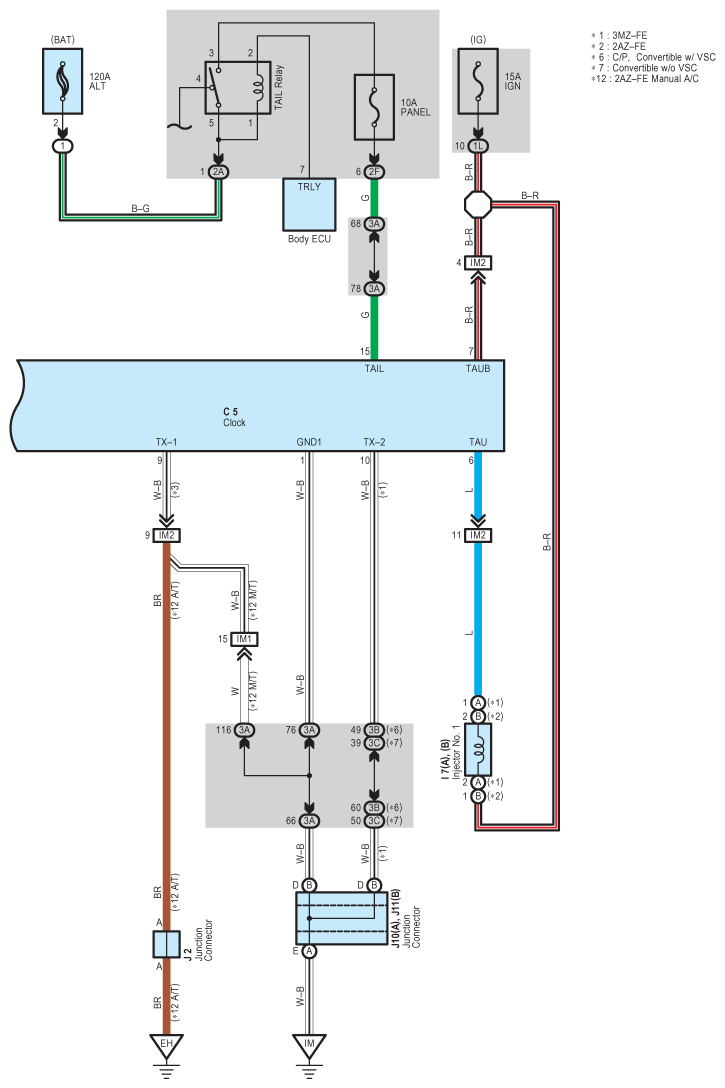

Fig 3: Clock System Wiring Diagram (3 Of 3)
G08788039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
