Automatic Glare-Resistant EC Mirror with Compass: Notes

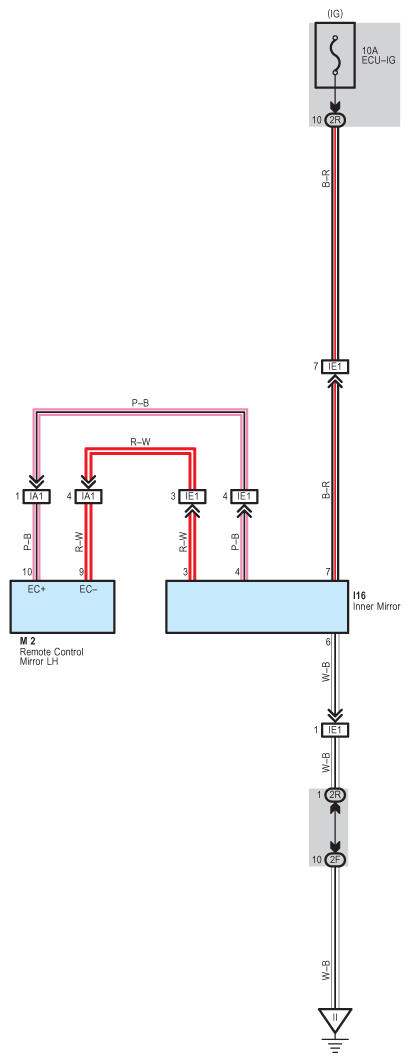

Fig 1: Automatic Glare-Resistant EC Mirror With Compass System Wiring Diagram

G08788031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
