ABS and Tire Pressure Warning System: Notes

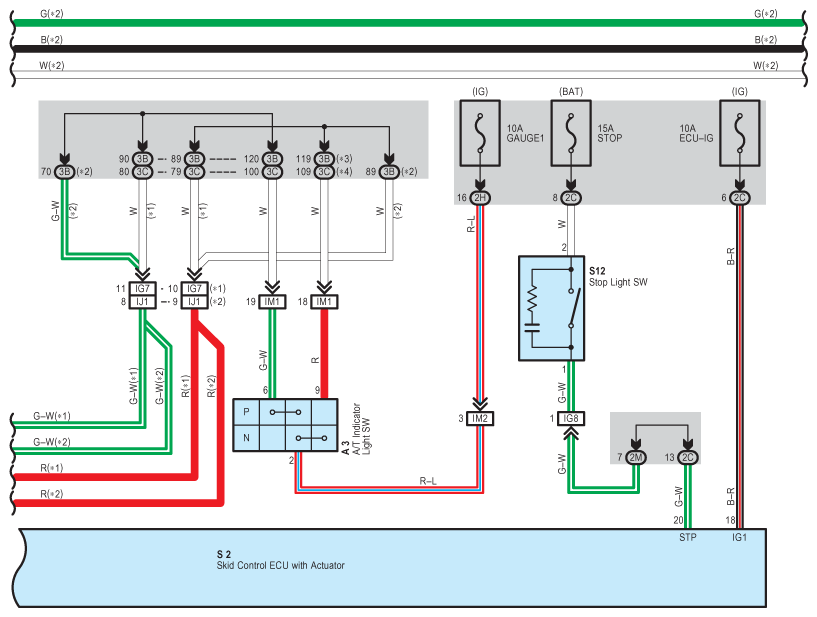

Fig 1: ABS And Tire Pressure Warning System (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

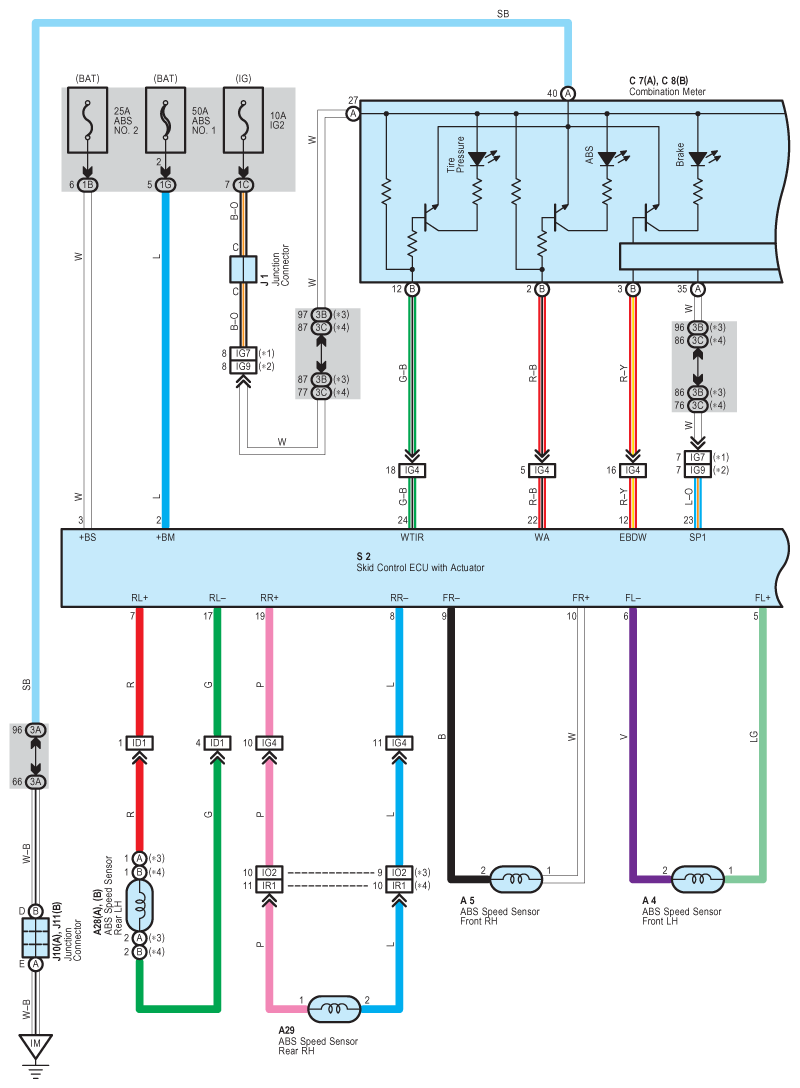

Fig 2: ABS And Tire Pressure Warning System (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

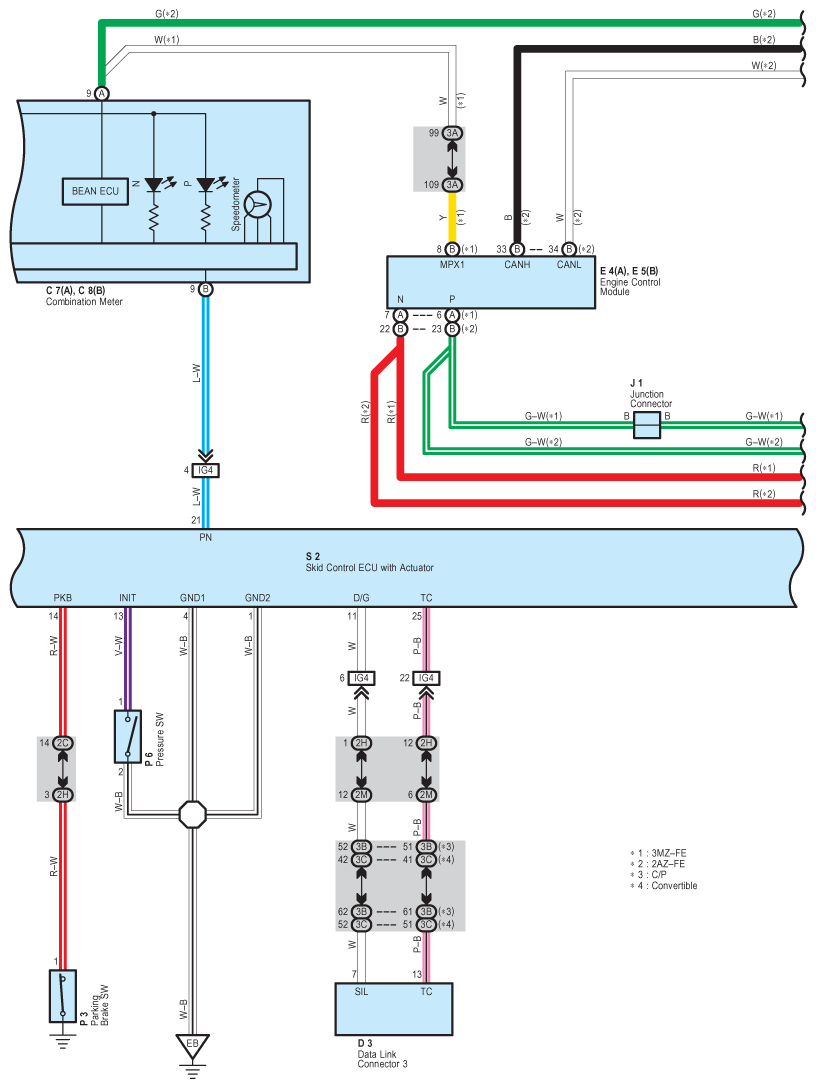

Fig 3: ABS And Tire Pressure Warning System (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

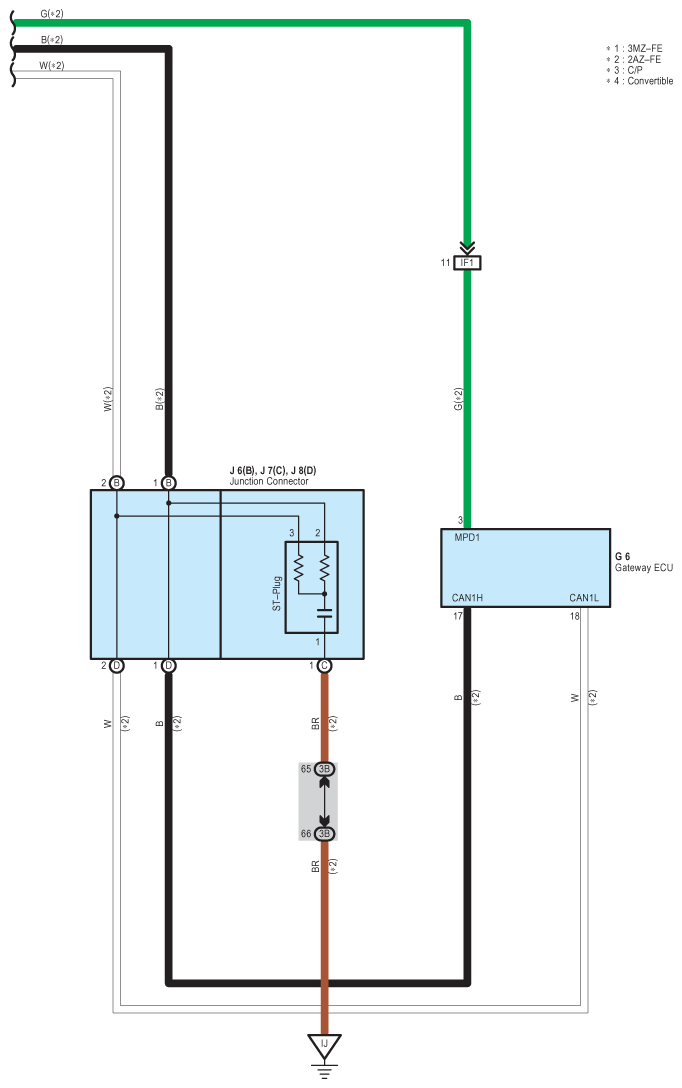

Fig 4: ABS And Tire Pressure Warning System (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
