Window Defogger System
>>
System Diagram
System Diagram

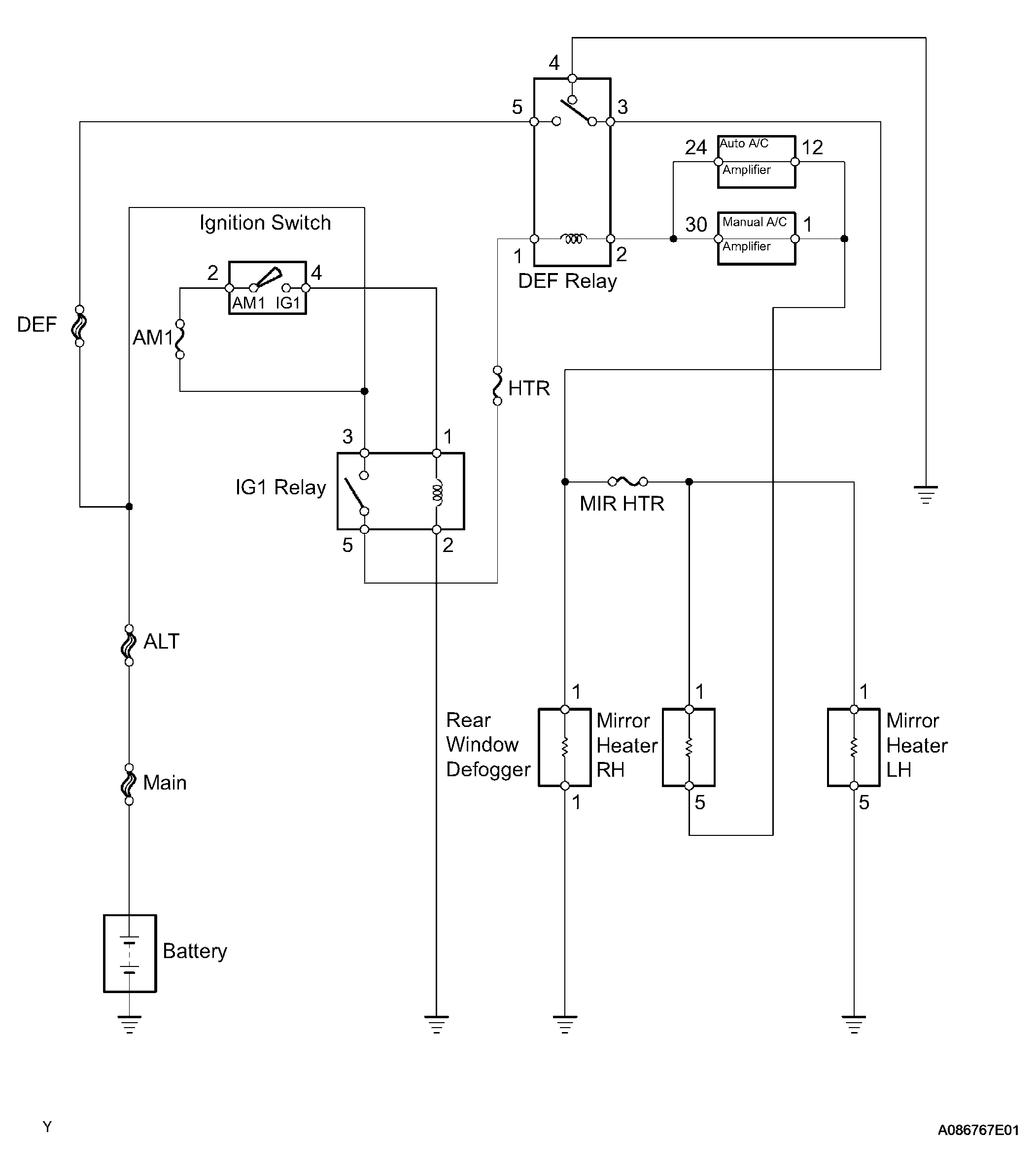

Fig 1: Window Defogger System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
