Generator ASSY (1MZ-FE/3MZ-FE): Components

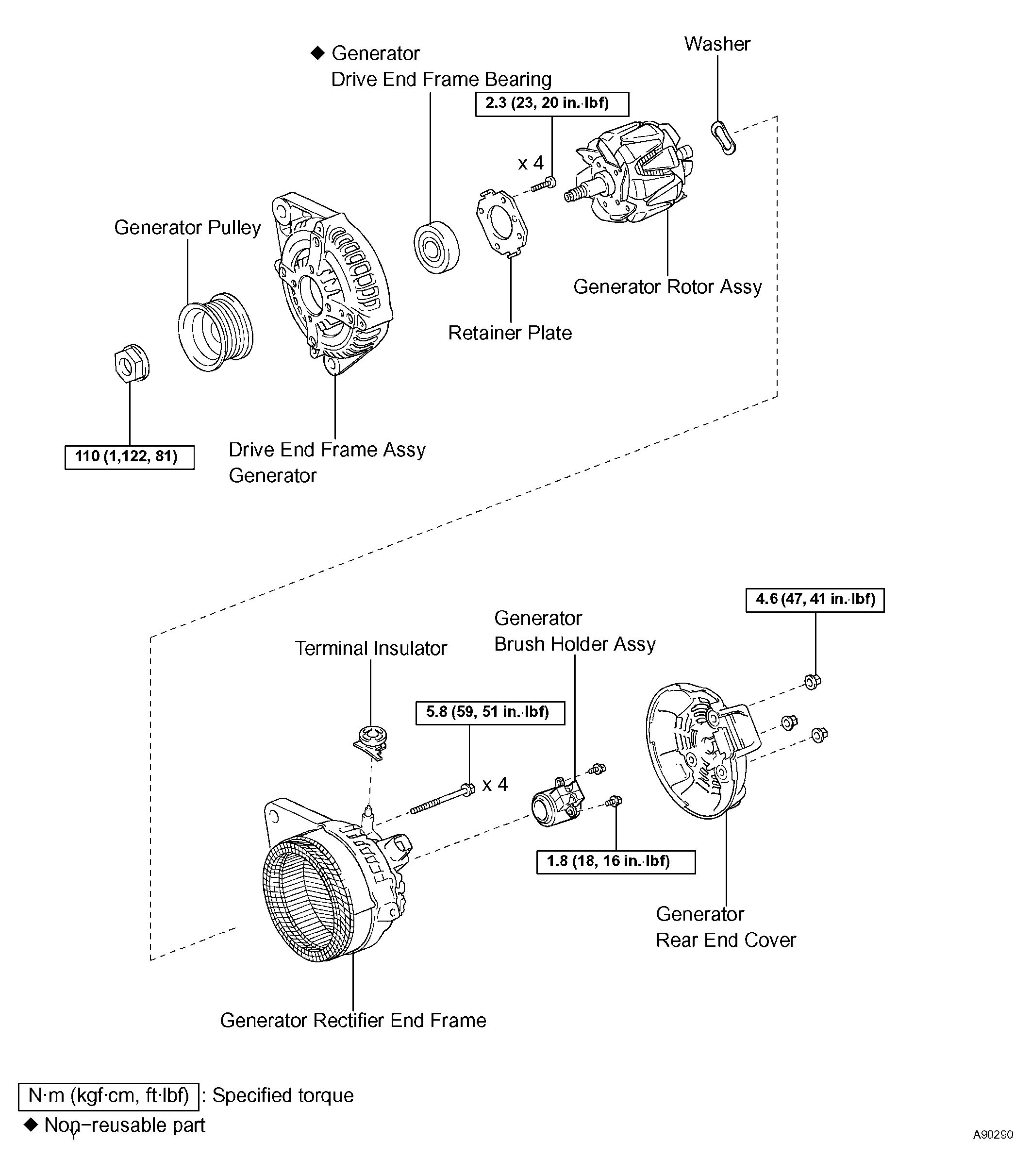

Fig 1: Identifying Generator Assy (1MZ-FE/3MZ-FE) Components
G04392791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
