Power Window: Notes

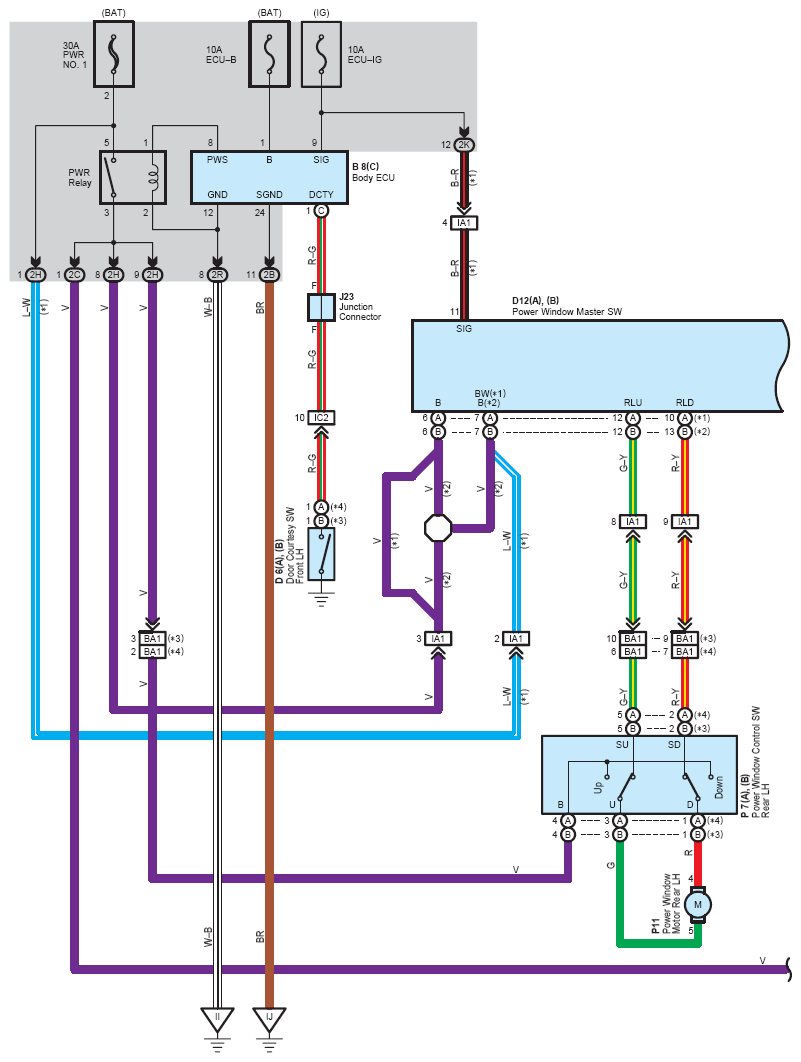

Fig 1: Power Window System Wiring Diagram (1 Of 2)
G08775611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

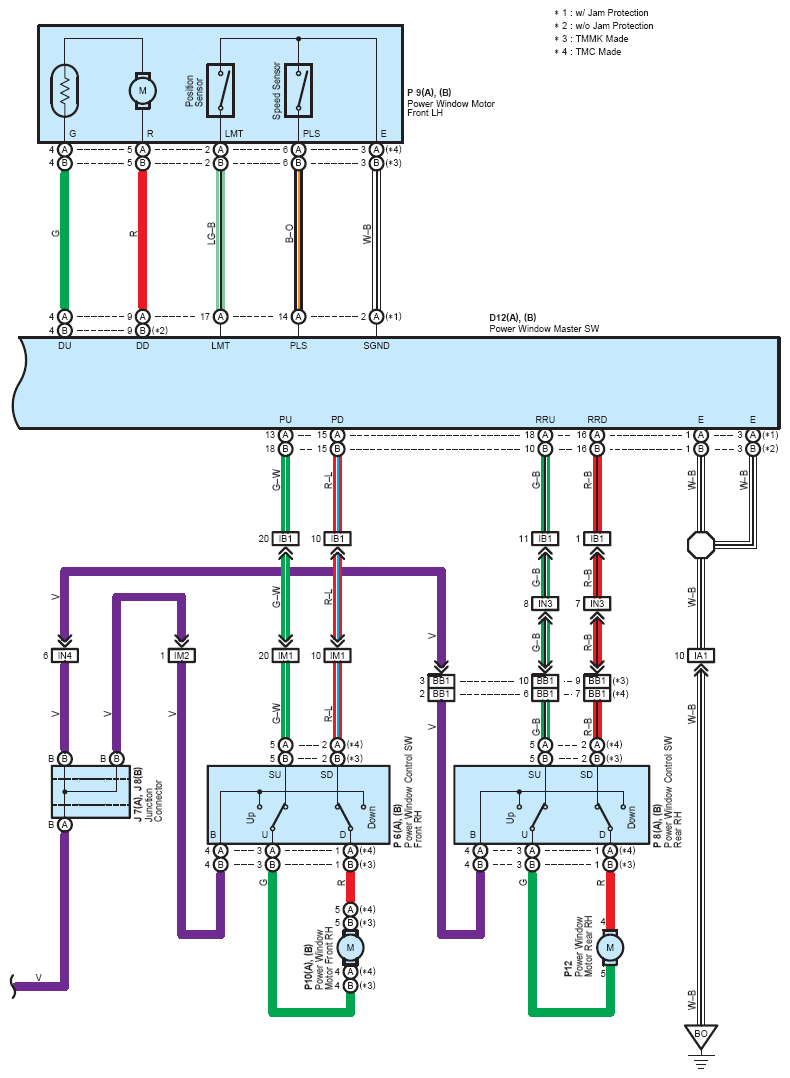

Fig 2: Power Window System Wiring Diagram (2 Of 2)
G08775612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
