Power Adjustable Pedals: Notes

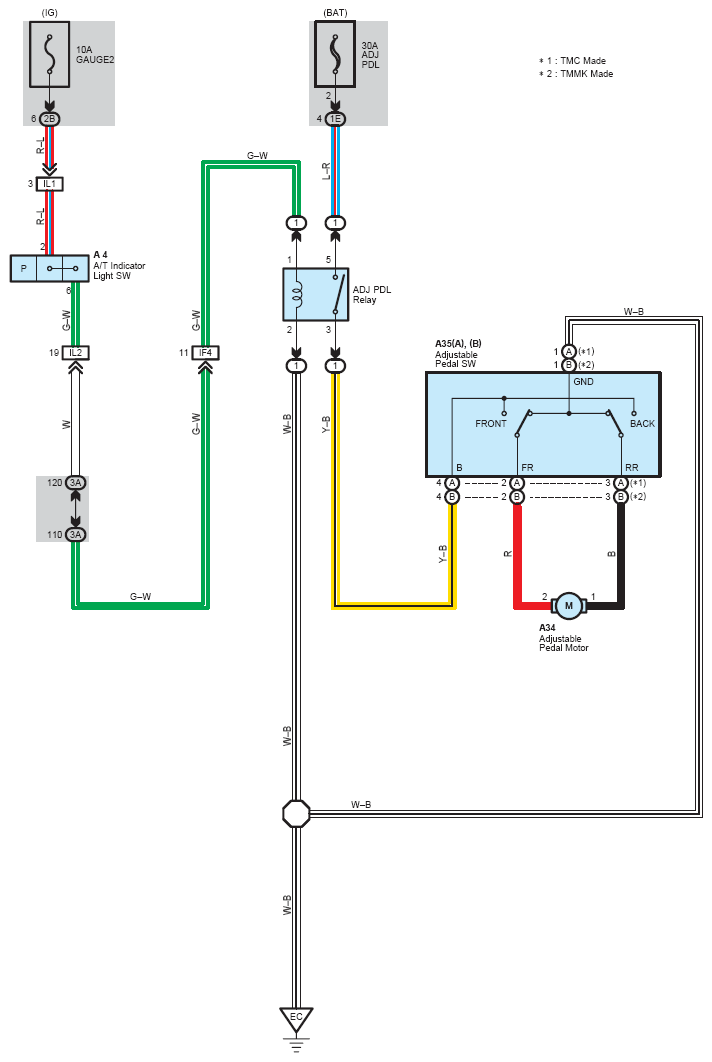

Fig 1: Power Adjustable Pedals System Wiring Diagram

G08775653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
