Light Auto Turn Off System: Notes

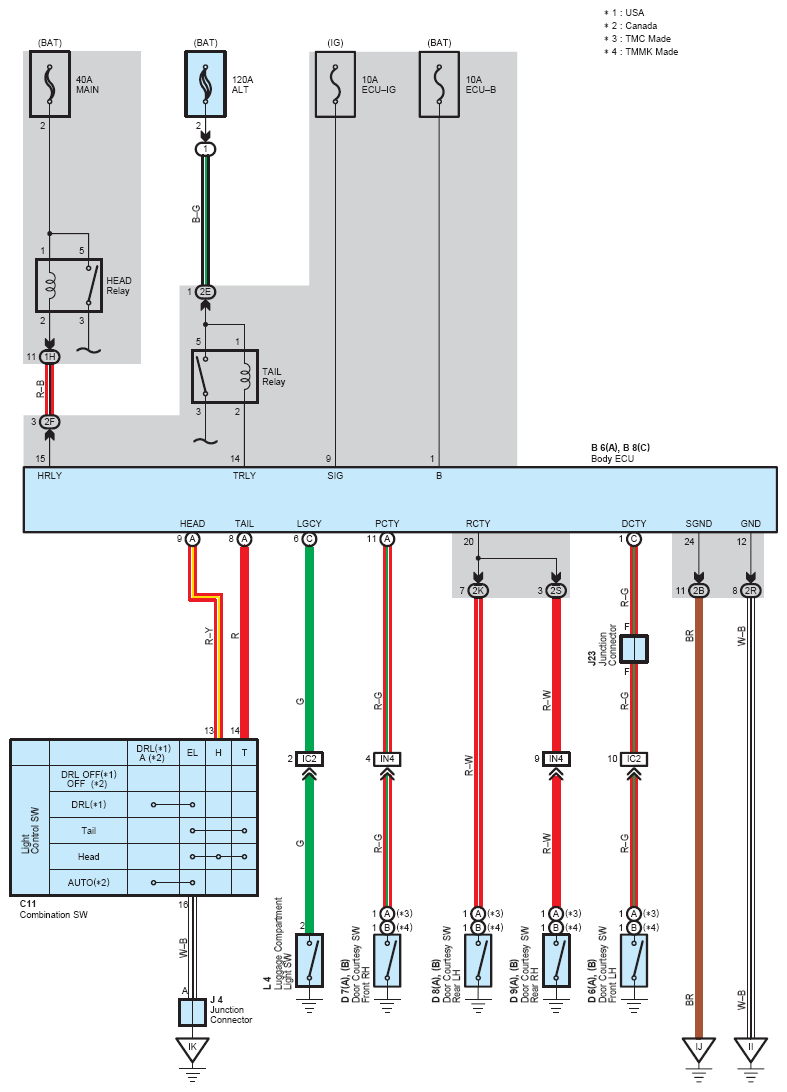

Fig 1: Light Auto Turn Off System Wiring Diagram
G08775590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
