Key Reminder: Notes

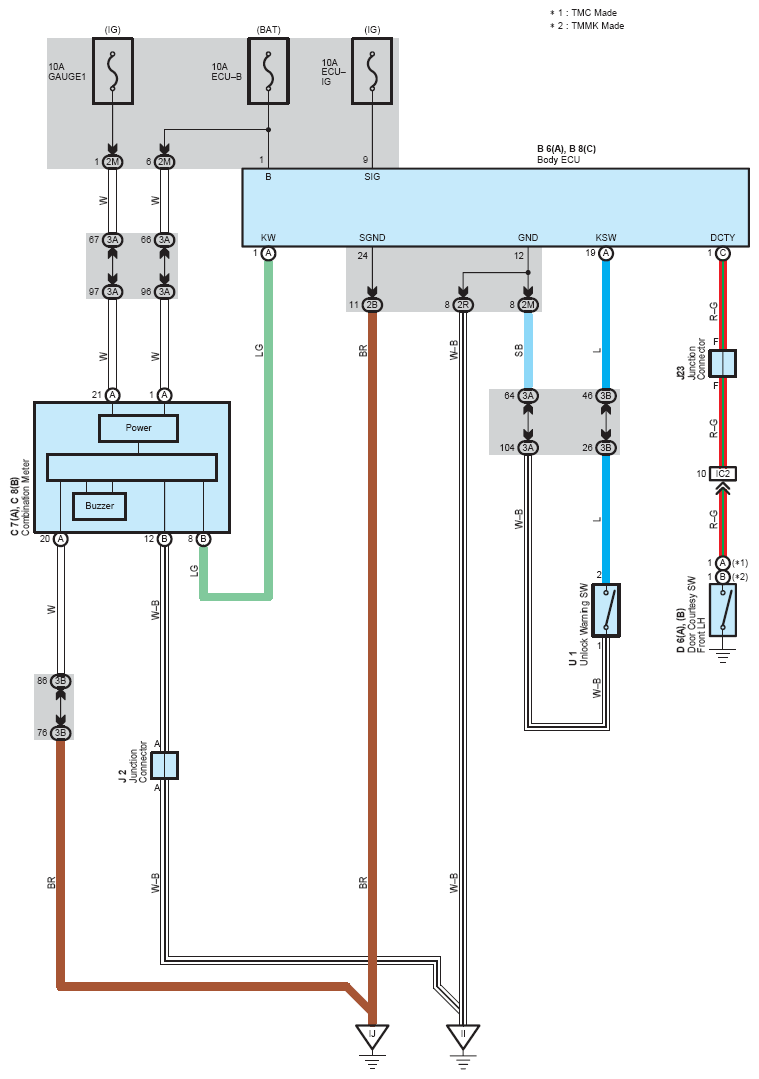

Fig 1: Key Reminder System Wiring Diagram

G08775601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
