OEM System Circuits: Clock: Notes

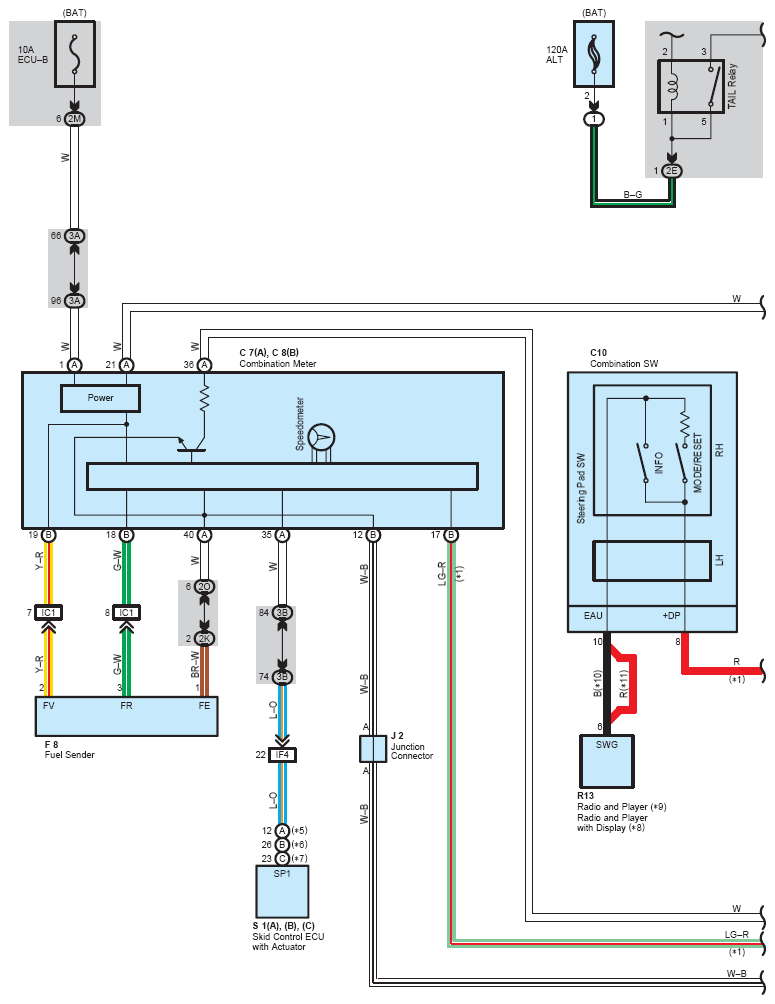

Fig 1: Clock System Wiring Diagram (1 Of 2)
G08775654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

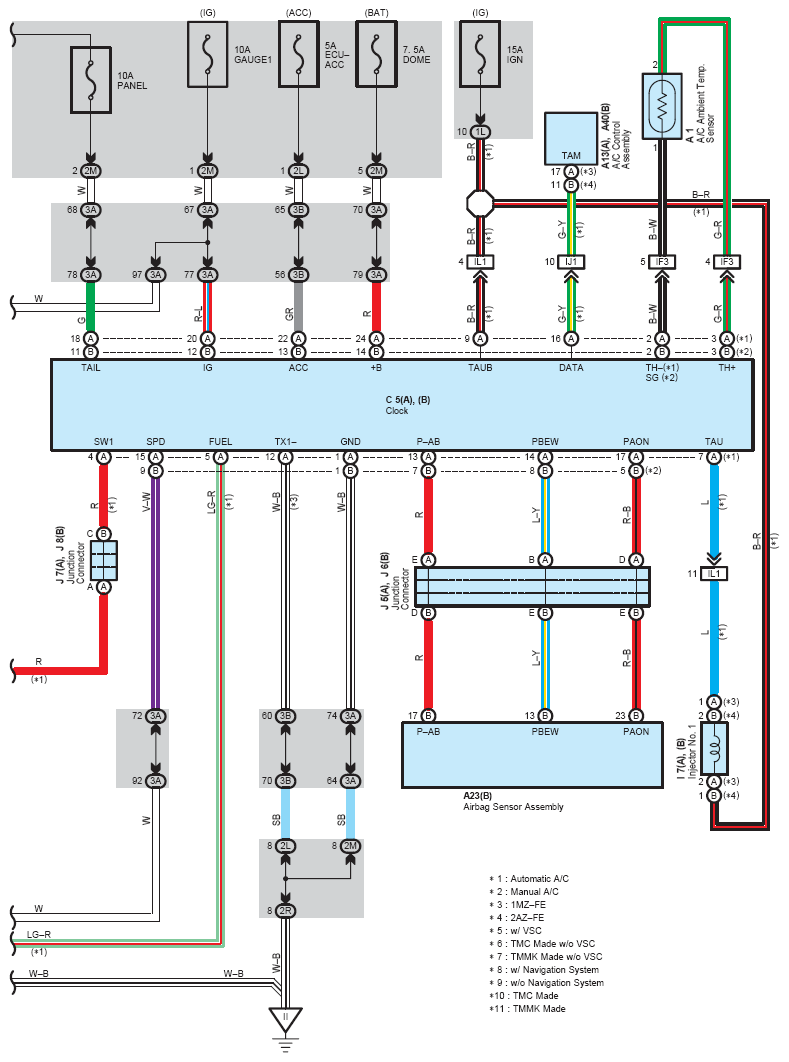

Fig 2: Clock System Wiring Diagram (2 Of 2)
G08775655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
