Fuel Tank ASSY (1MZ-FE/3MZ-FE): Components

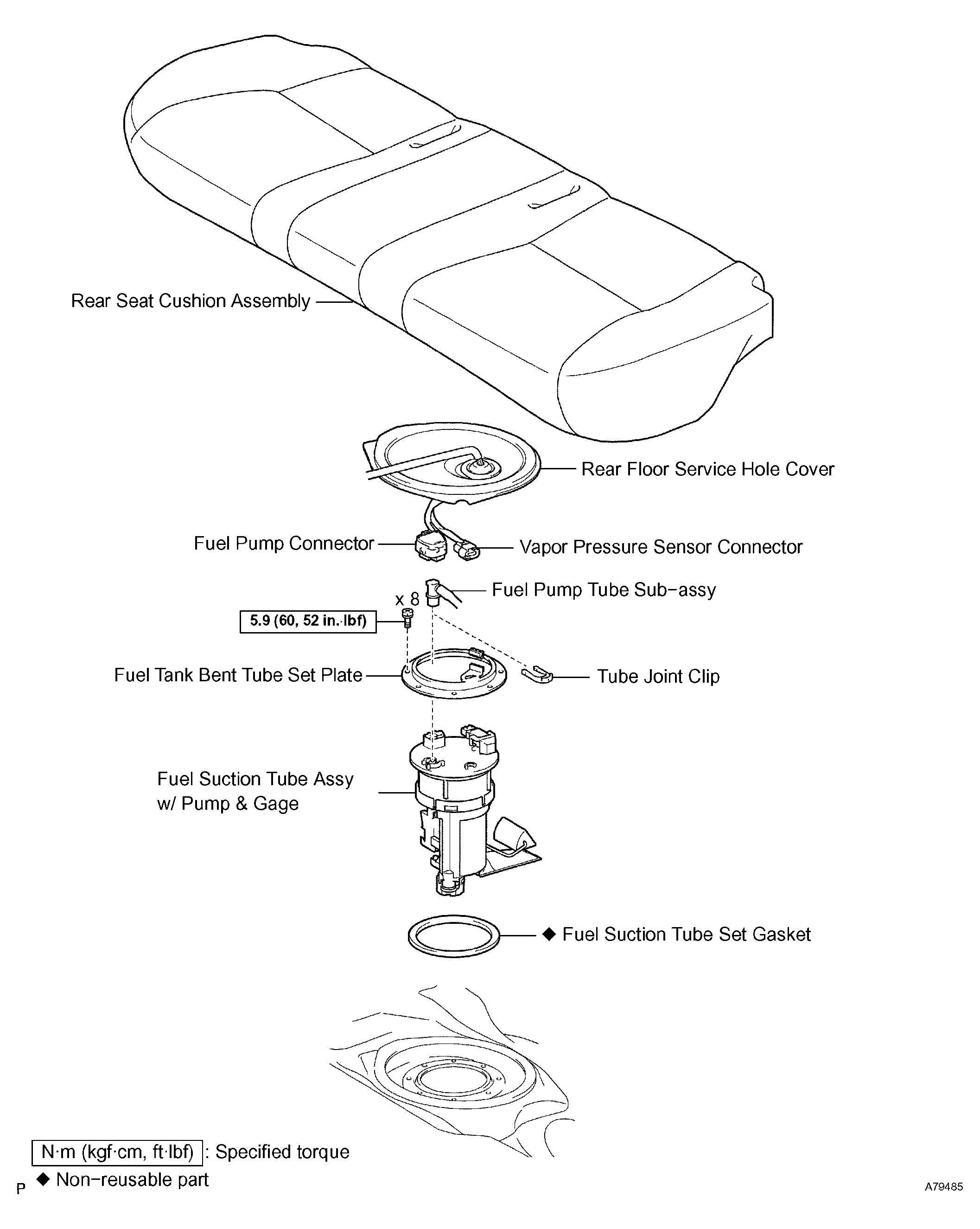

Fig 1: Identifying Fuel Tank Assembly (1MZ-FE/3MZ-FE) Components (1 Of 3)
G04391457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

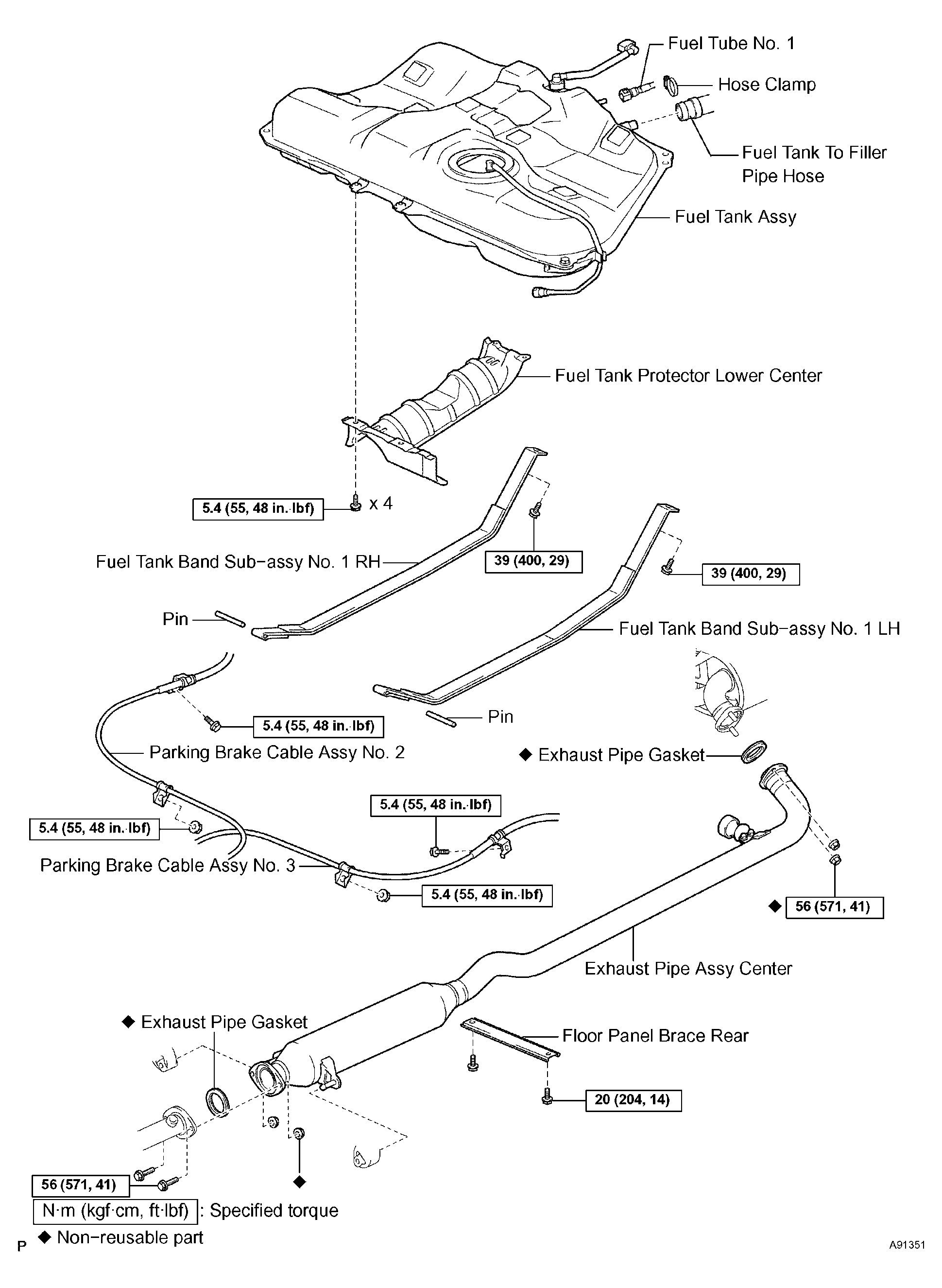

Fig 2: Identifying Fuel Tank Assembly (1MZ-FE/3MZ-FE) Components (2 Of 3)
G04391458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

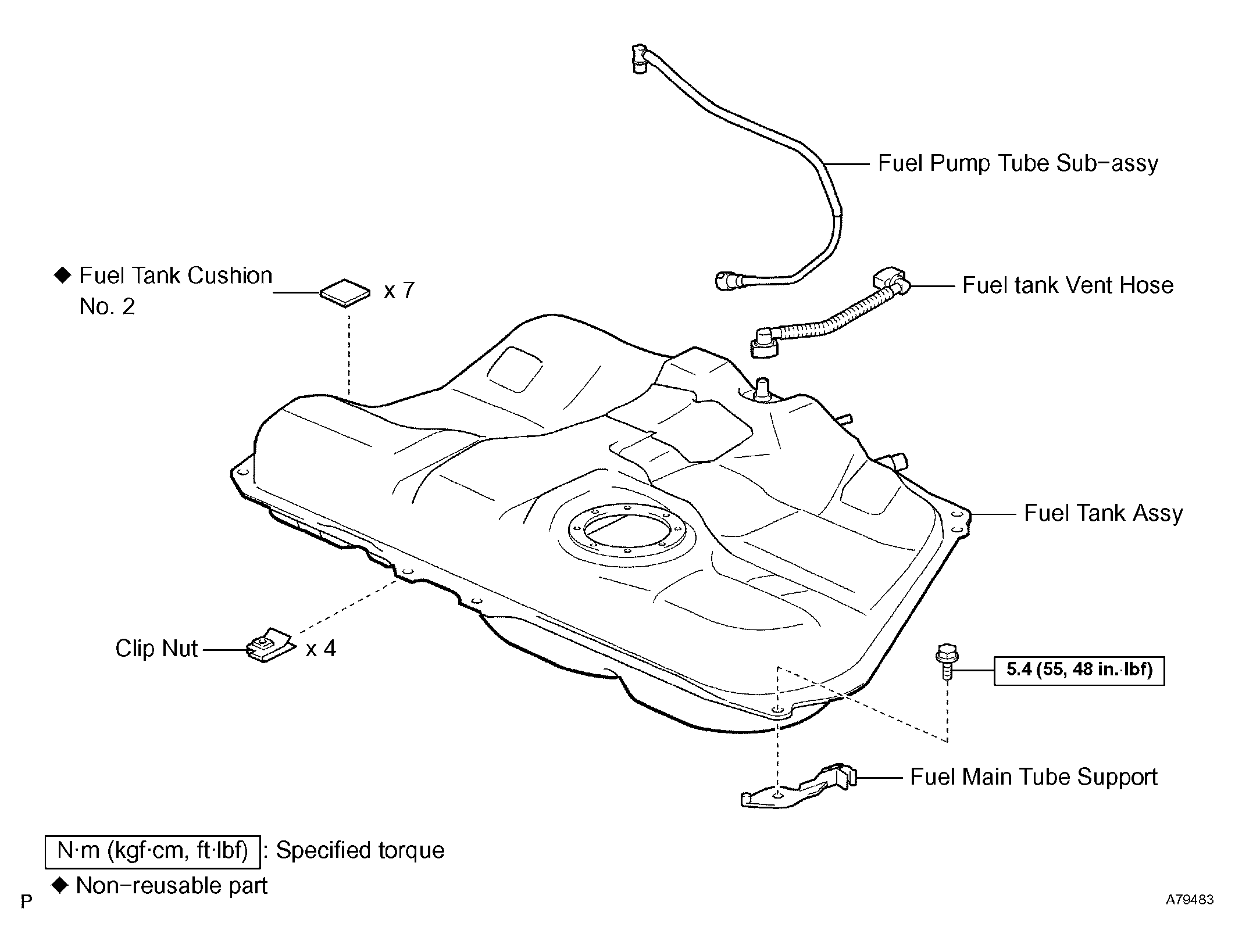

Fig 3: Identifying Fuel Tank Assembly (1MZ-FE/3MZ-FE) Components (3 Of 3)
G04391459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
