Transmission Revolution Sensor (ATM): Replacement

  1. REMOVE BATTERY
  2. REMOVE AIR CLEANER ASSY (See step 11 on  REPLACEMENT - 2AZ-FE  or step 16 on  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  3. REMOVE AIR CLEANER HOSE NO. 1 (See  REPLACEMENT - 2AZ-FE  or step 17 on  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  4. REMOVE AIR CLEANER BRACKET (See step 11 on  REPLACEMENT - 2AZ-FE  or step 18 on  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  5. REMOVE AIR CLEANER INLET NO. 1 (See  REPLACEMENT - 2AZ-FE  or step 19 on  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  6. REMOVE TRANSMISSION REVOLUTION SENSOR (NT SENSOR)
    1. Disconnect the speed sensor connector.
    2. Remove the bolt and transmission revolution sensor.

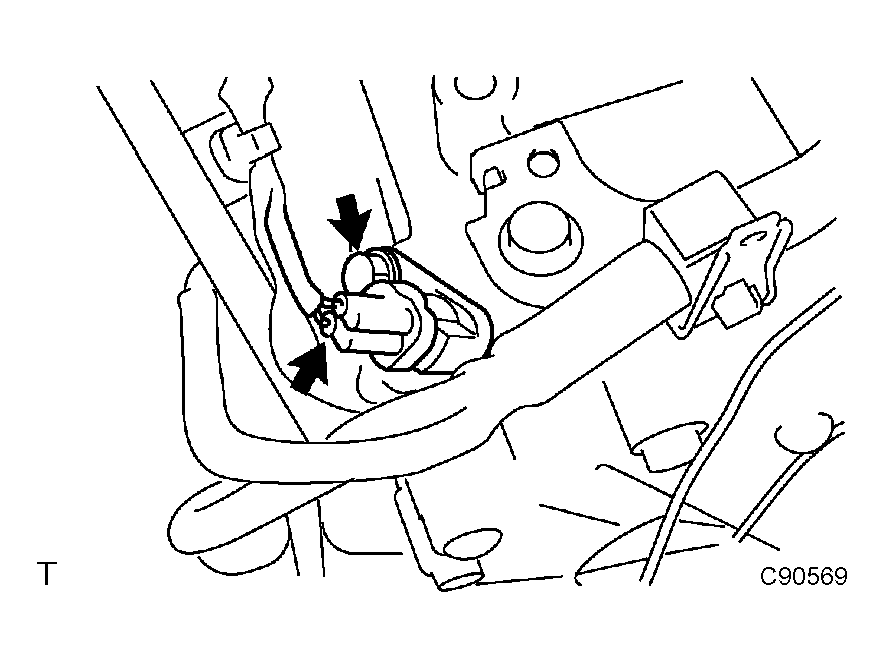

    Fig 1: Removing Bolt And Transmission Revolution Sensor
    G04393309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE TRANSMISSION REVOLUTION SENSOR (NC SENSOR)
    1. Disconnect the speed sensor connector.
    2. Remove the bolt and transmission revolution sensor.
    Fig 2: Removing Bolt And Transmission Revolution Sensor
    G04393310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL TRANSMISSION REVOLUTION SENSOR (NC SENSOR)
    1. Coat an O-ring with ATF.
    2. Install the speed sensor with the bolt.

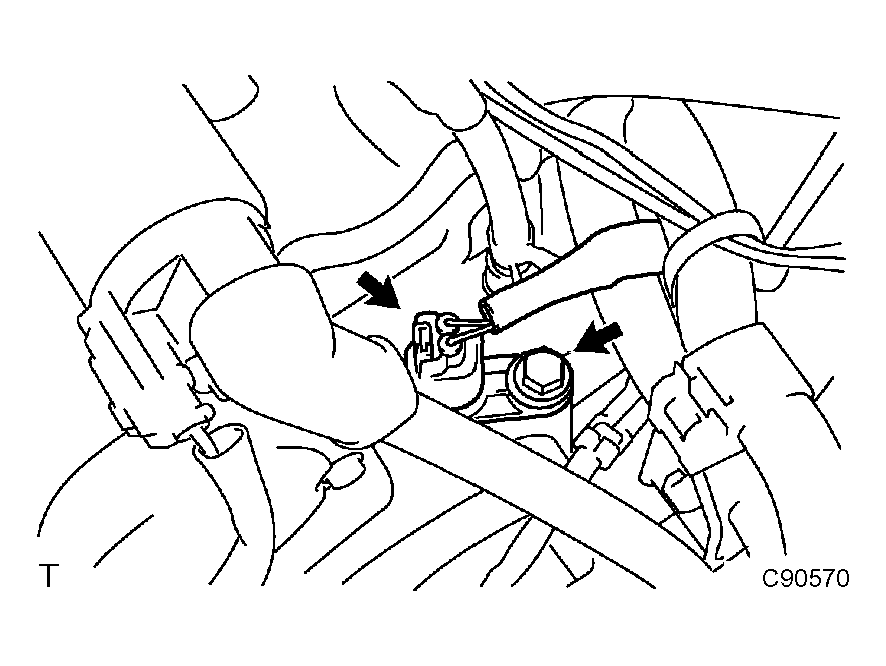

      Fig 3: Installing Speed Sensor With Bolt
      G04393311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque:

      11 N.m (110 kgf.cm, 8 ft.lbf) (U151E)

      8.8 N.m (90 kgf.cm, 78 in.lbf) (U250E)

      HINT:

      Make sure of the manufacturer's name.

    3. Connect the speed sensor connector.
  9. INSTALL TRANSMISSION REVOLUTION SENSOR (NT SENSOR)
    1. Coat an O-ring with ATF.
    2. Install the speed sensor with the bolt.

      Torque: 11 N.m (110 kgf.cm, 8 ft.lbf)

      HINT:

      Make sure of the manufacturer's name.

    3. Connect the speed sensor connector.
    Fig 4: Installing Speed Sensor With Bolt
    G04393312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL AIR CLEANER INLET NO. 1 (See  REPLACEMENT - 2AZ-FE  or  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  11. INSTALL AIR CLEANER BRACKET (See  REPLACEMENT - 2AZ-FE  or  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  12. INSTALL AIR CLEANER HOSE NO. 1 (See  REPLACEMENT - 2AZ-FE  or  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  13. INSTALL AIR CLEANER ASSY (See step 137 on  REPLACEMENT - 2AZ-FE  or step 129 on  REPLACEMENT - 1MZ-FE/3MZ-FE  )
  14. INSTALL BATTERY
