Automatic Transaxle ASSY (U151E): Components

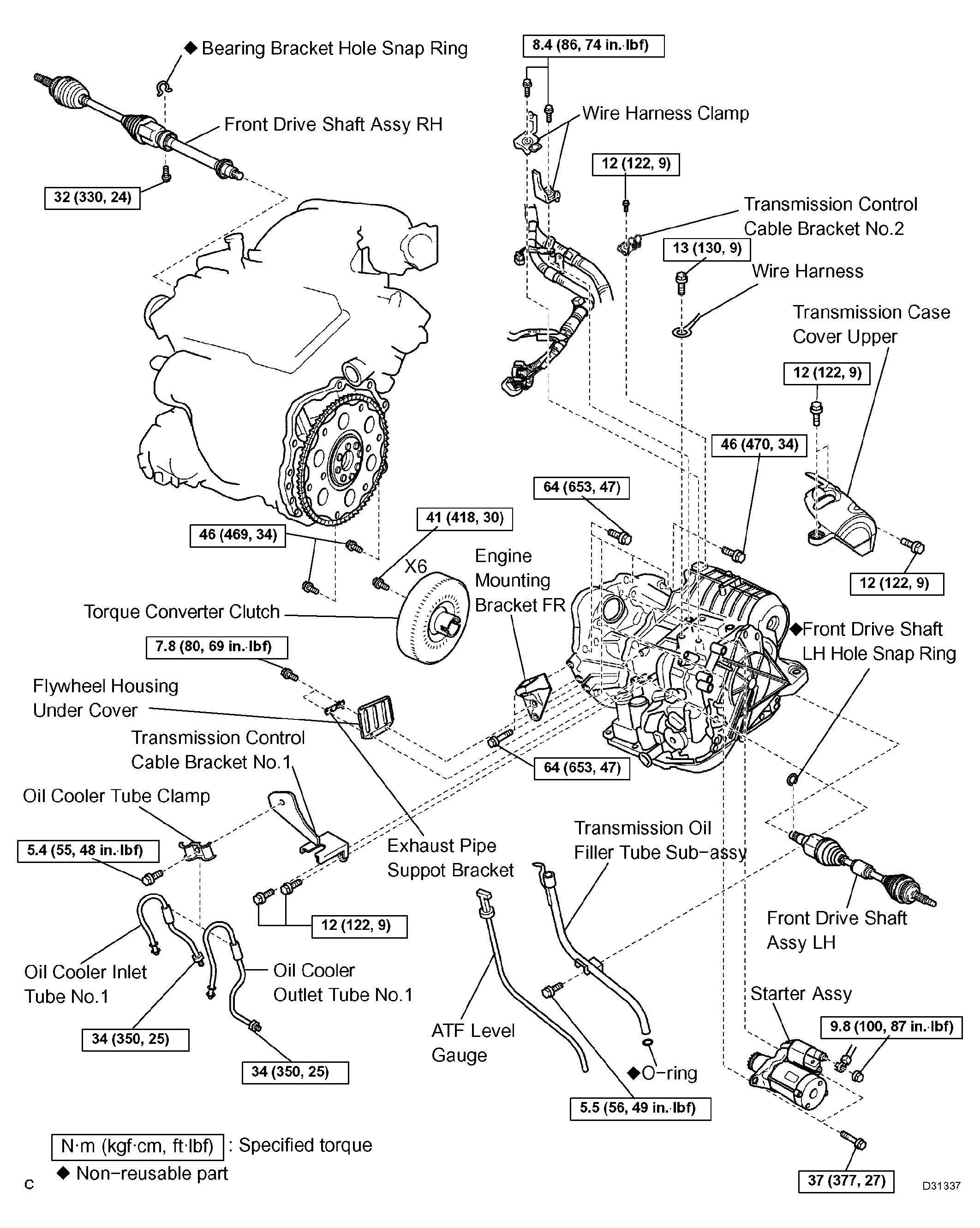

Fig 1: Identifying Automatic Transaxle Assy (U151E) Components

G04393235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
