Rear Seat Belt: Components

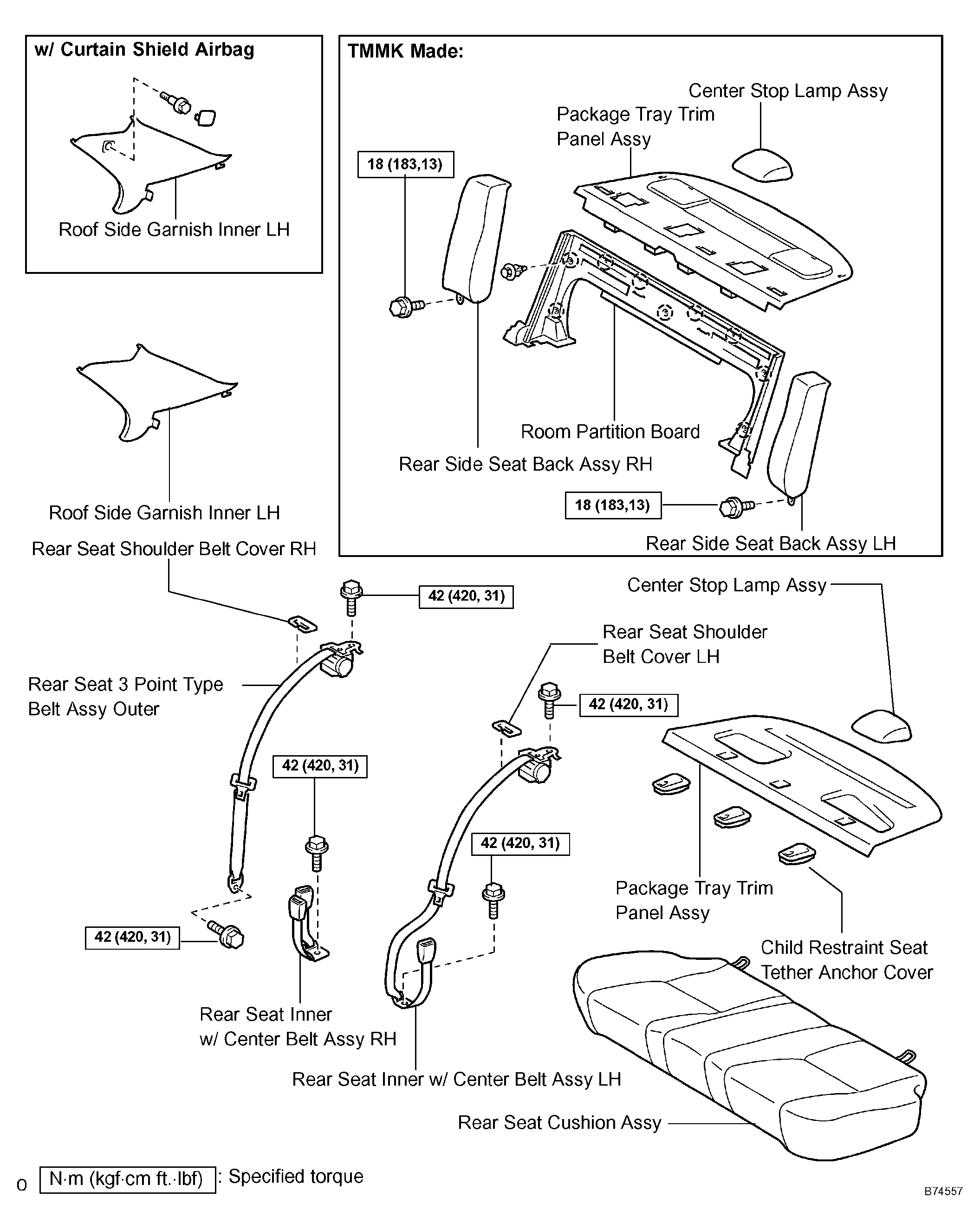

Fig 1: Identifying Rear Seat Belt Components

G04394377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
