Fuel Pump ASSY (1MZ-FE/3MZ-FE): Replacement

  1. DISCHARGE FUEL SYSTEM PRESSURE (See  FUEL SYSTEM (1MZ-FE/3MZ-FE)  )
  2. REMOVE REAR SEAT CUSHION ASSEMBLY (See  OVERHAUL  )
  3. REMOVE REAR FLOOR SERVICE HOLE COVER
    1. Remove the rear floor service hole cover.
    2. Disconnect the vapor pressure sensor connector.
    3. Disconnect the fuel pump connector.

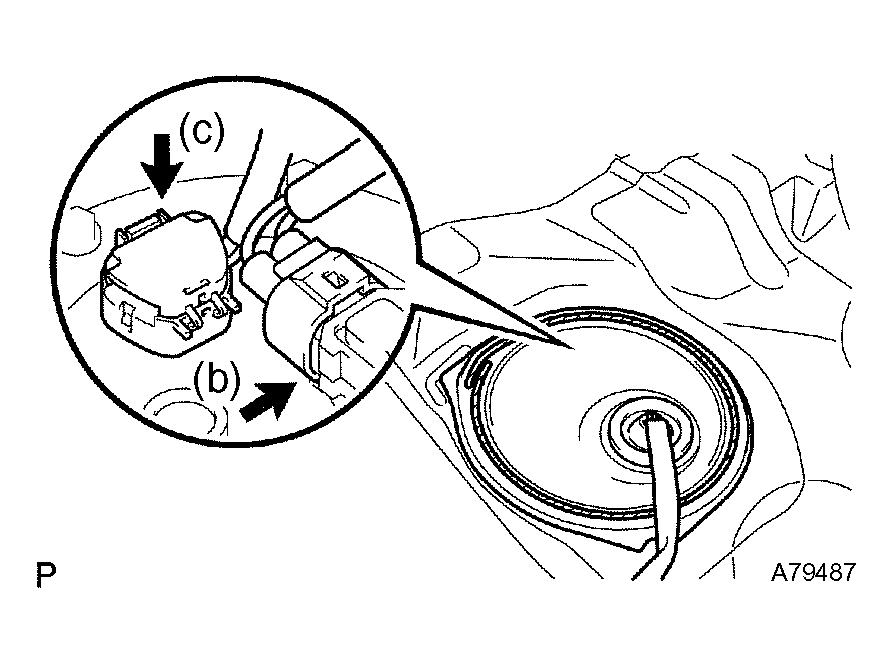

    Fig 1: Removing Rear Floor Service Hole Cover
    G04391441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. SEPARATE FUEL PUMP TUBE SUB-ASSY
    1. Remove the tube joint clip, and pull out the fuel pump tube.

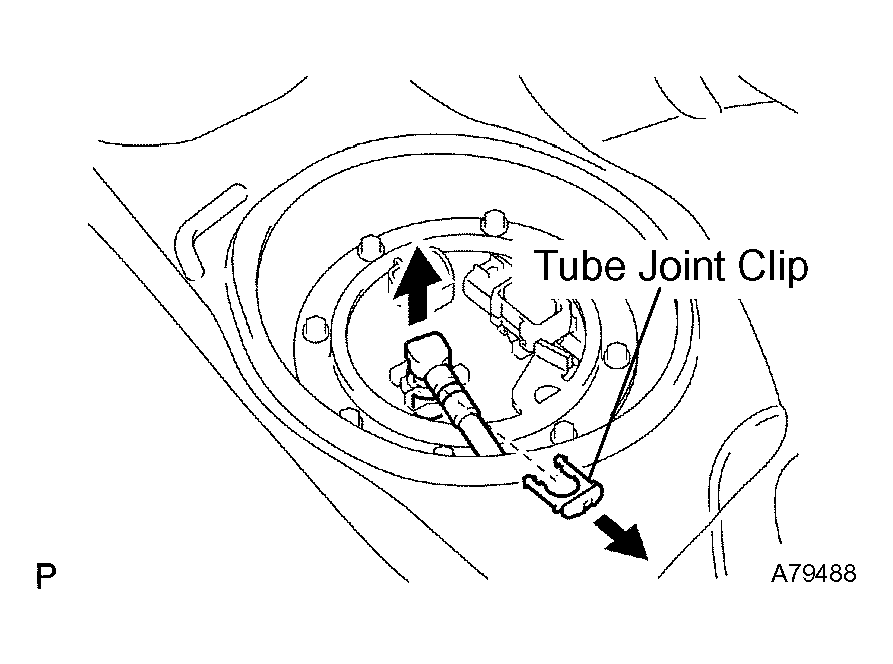

    Fig 2: Removing Tube Joint Clip
    G04391442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Before this operation, check the connector for dirt, mud or other contamination.
    • Be careful of mud. The connector's O-ring, which seals the pipe and connector, becomes contaminated easily.
    • Do not use any tools in this operation.
    • Do not bend or twist the nylon tube. Protect the connector by covering it with a vinyl or plastic bag.
    • When the pipe and the connector are stuck, push and pull the connector to release it. Then pull out the connector from the pipe.

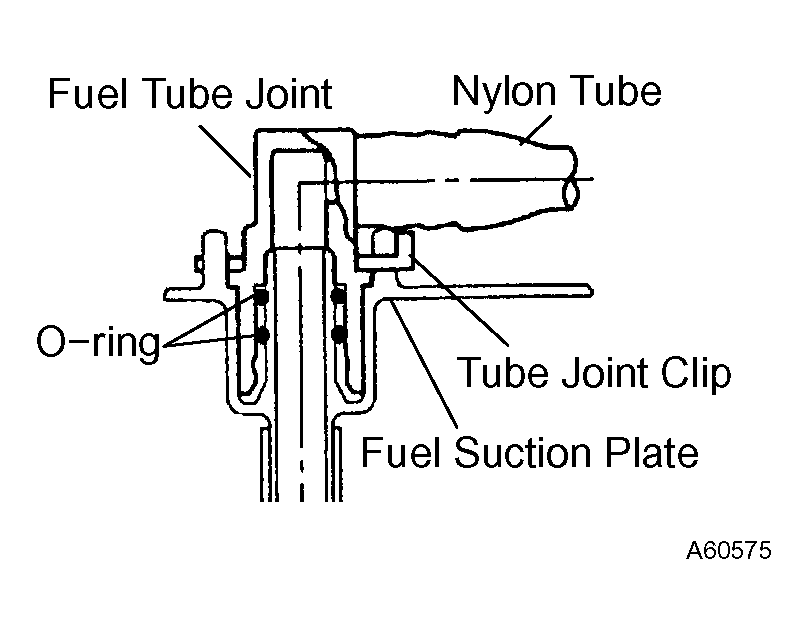

    Fig 3: Identifying Fuel Pump Tube Assy
    G04391443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FUEL TANK VENT TUBE SET PLATE
    1. Remove the 8 bolts and the set plate.

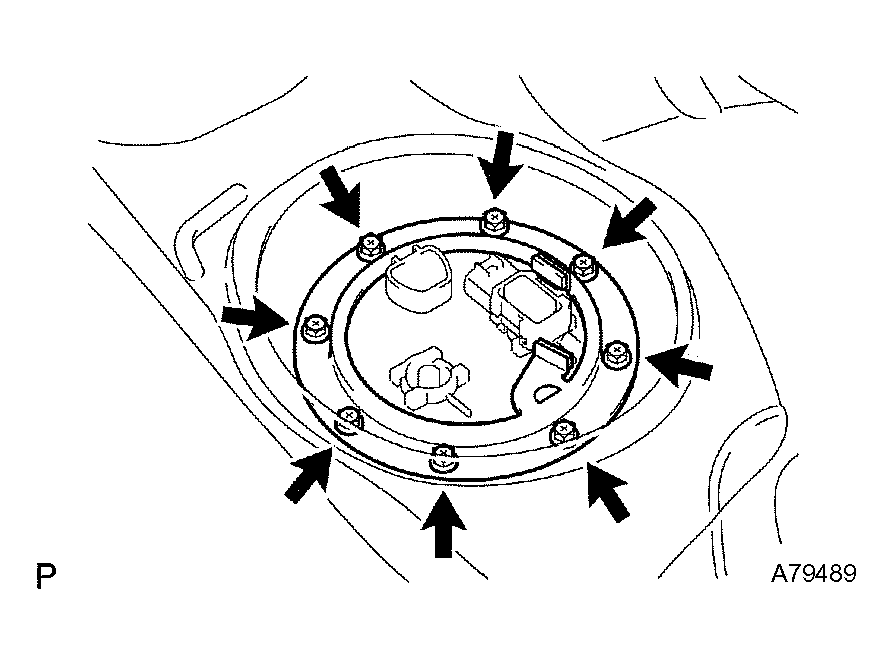

    Fig 4: Identifying Set Plate Bolts
    G04391444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FUEL SUCTION TUBE ASSY W/ PUMP & GAUGE
    1. Remove the fuel suction tube from the fuel tank.
      NOTE:
      • Do not damage the fuel pump filter.
      • Do not bend the arm of the fuel sender gauge.
    2. Remove the gasket from the fuel suction tube.

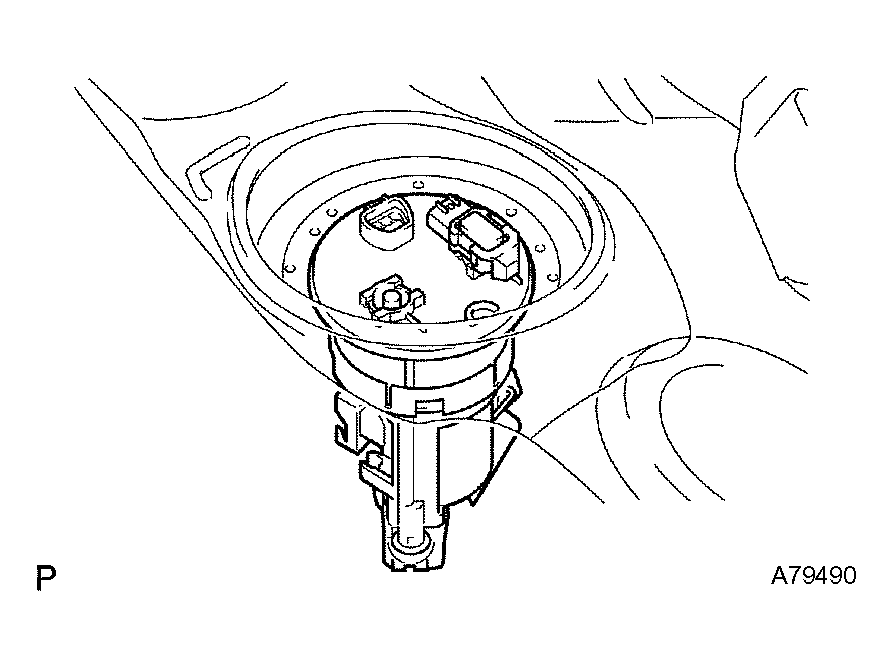

    Fig 5: Removing Fuel Suction Tube From Fuel Tank
    G04391445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE VAPOR PRESSURE SENSOR ASSY
    1. Remove the cover.
    2. Remove the tube joint clip, and pull out the vapor pressure sensor.

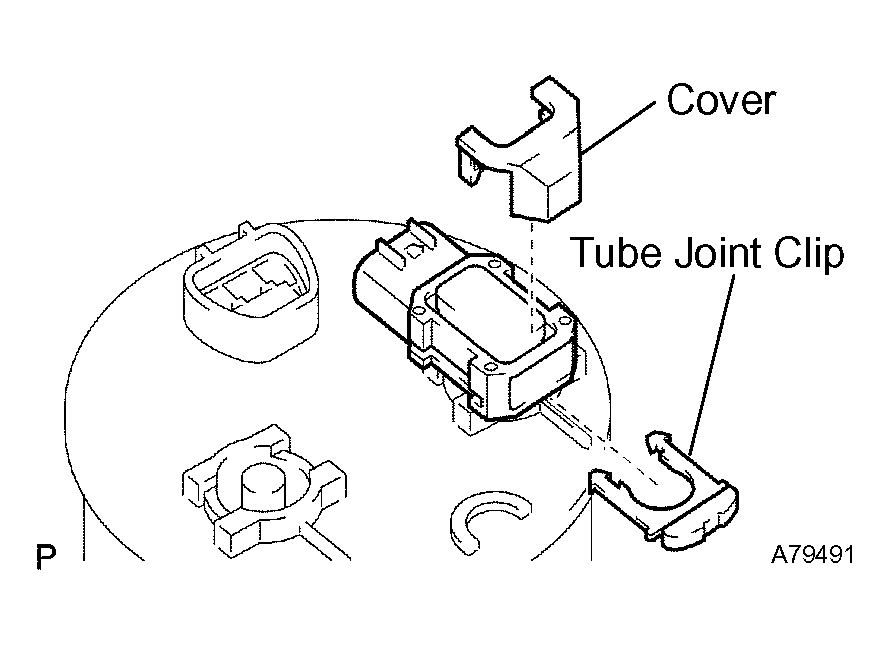

    Fig 6: Removing Tube Joint Clip And Cover
    G04391446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FUEL SUCTION SUPPORT NO. 2
    1. Using a screwdriver with its tip wrapped in tape, detach the 5 snap claws from the claw holes, and remove the fuel suction support.
    NOTE: Do not damage the fuel suction support.

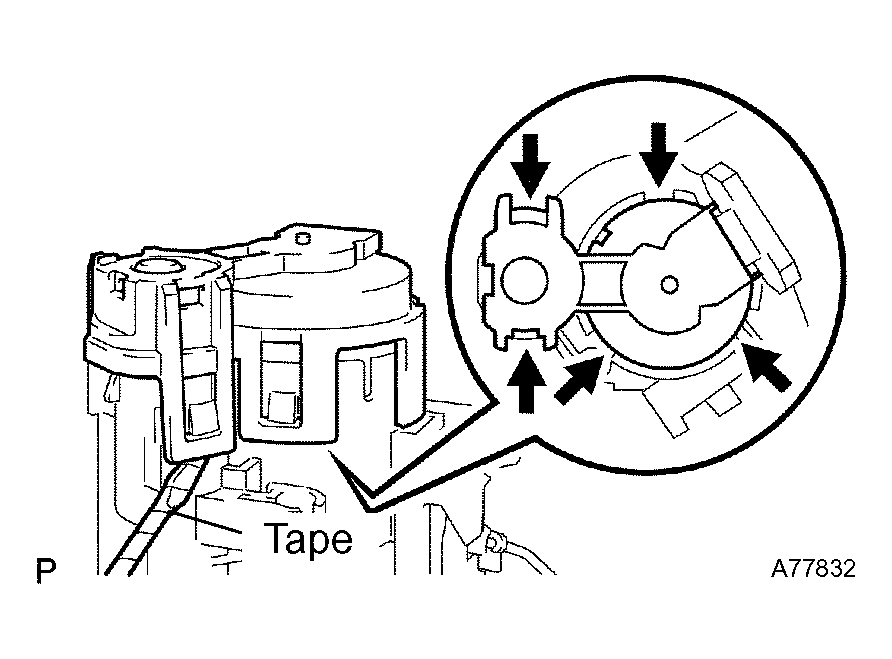

    Fig 7: Removing Fuel Suction Support No. 2
    G04391447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

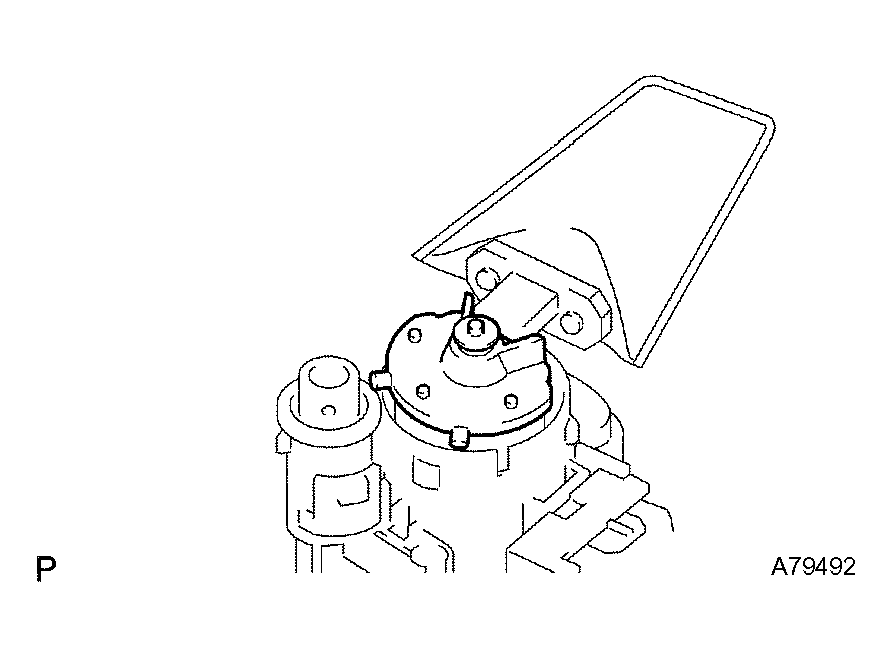

  9. REMOVE FUEL PUMP CUSHION RUBBER
    Fig 8: Removing Fuel Pump Cushion Rubber
    G04391448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

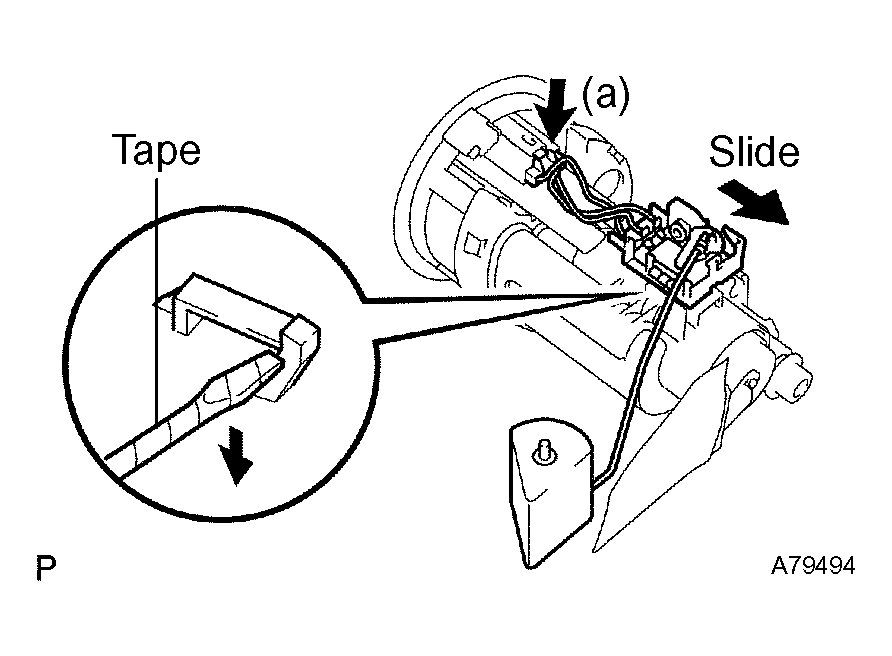

  10. REMOVE FUEL SENDER GAUGE ASSY
    1. Disconnect the fuel sender gauge connector.
    2. Using a screwdriver with its tip wrapped in tape, unfasten the clamp to release the fuel sender gauge. Slide the fuel sender gauge to remove it from the fuel pump.
    Fig 9: Removing Fuel Sender Gage Assembly
    G04391449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FUEL SUCTION PLATE SUB-ASSY
    1. Disconnect the fuel pump connector.
    2. Using a screwdriver with its tip wrapped in tape, detach the 4 snap claws from the claw holes, and pull out the fuel suction plate.
    NOTE: Do not damage the fuel suction support.

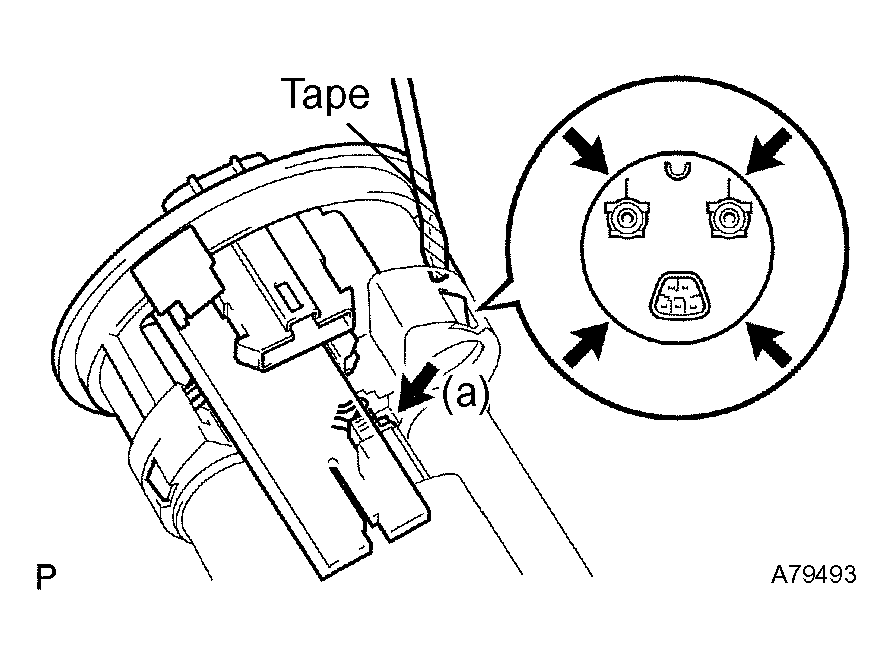

    Fig 10: Removing Fuel Suction Plate Sub-Assy
    G04391450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FUEL PUMP HARNESS
    1. Disconnect the connector.
    2. Using a small screwdriver, pry out the fuel pump harness.

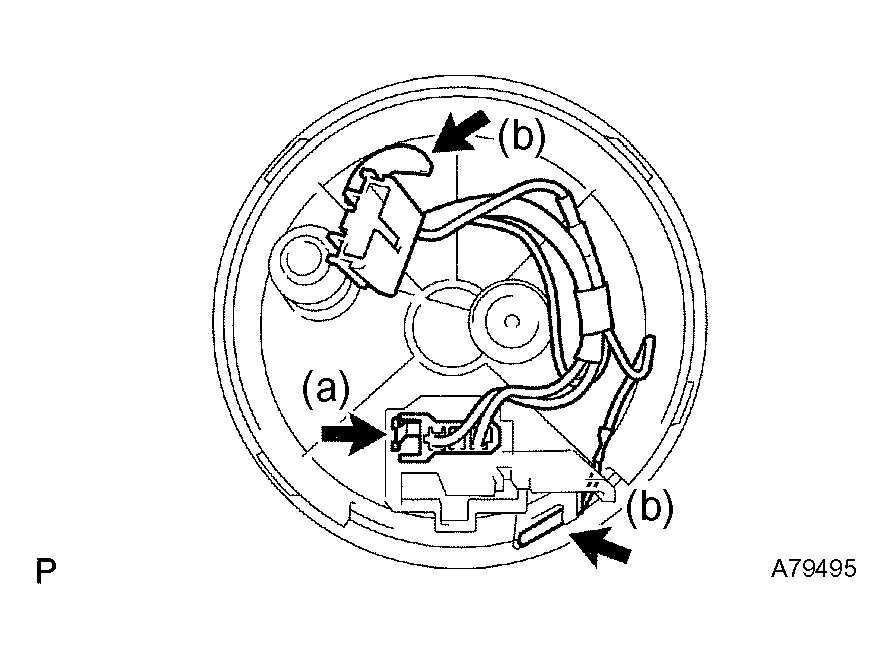

    Fig 11: Removing Fuel Pump Harness
    G04391451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FUEL PUMP
    1. Pull out the fuel pump from the fuel tank fuel filter.

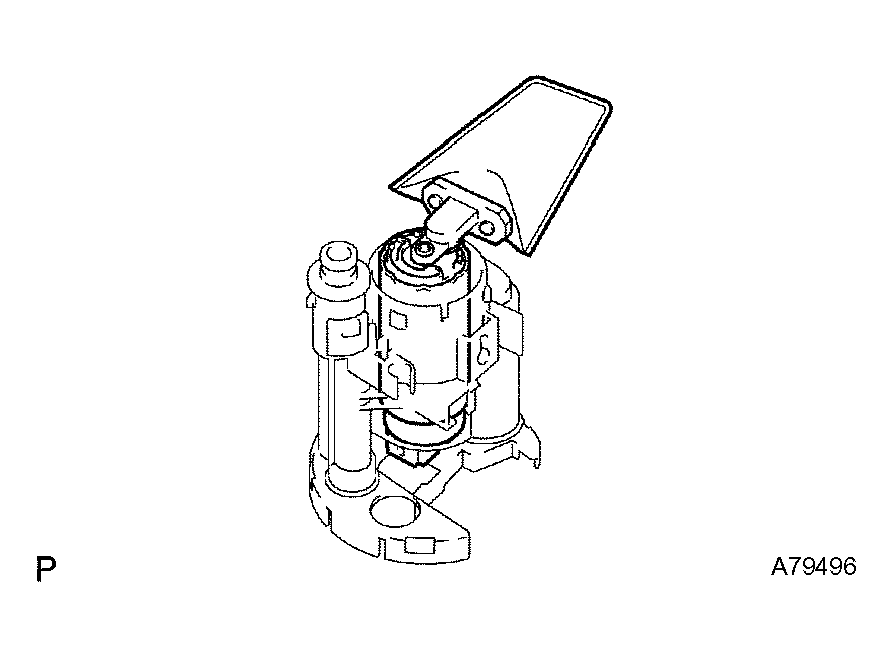

    Fig 12: Removing Fuel Pump From Fuel Tank Fuel Filter
    G04391452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FUEL PUMP FILTER
    1. Using a small screwdriver, pry out the clip.
    2. Pull out the fuel pump filter from the fuel pump.

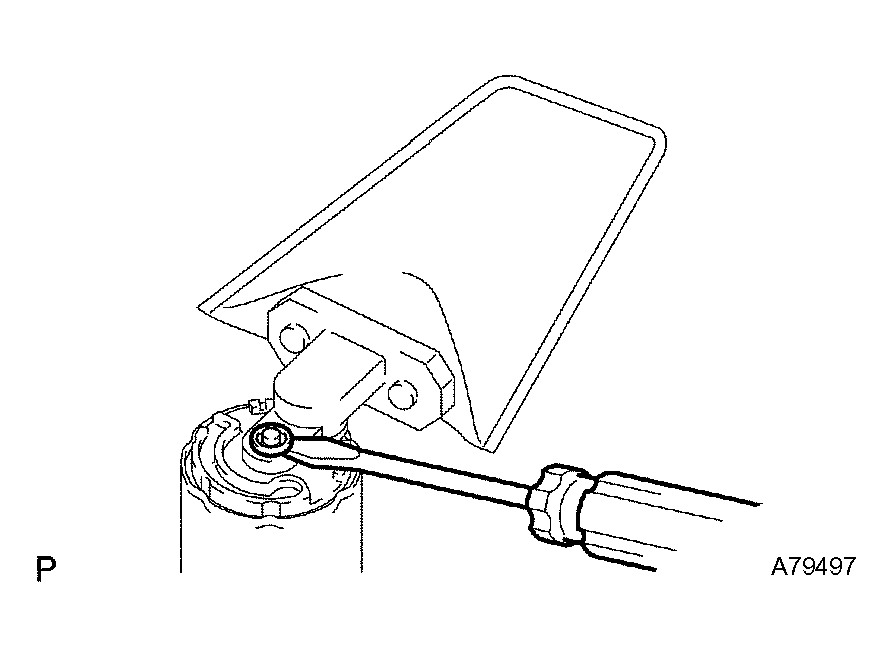

    Fig 13: Removing Clip Using A Screwdriver
    G04391453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

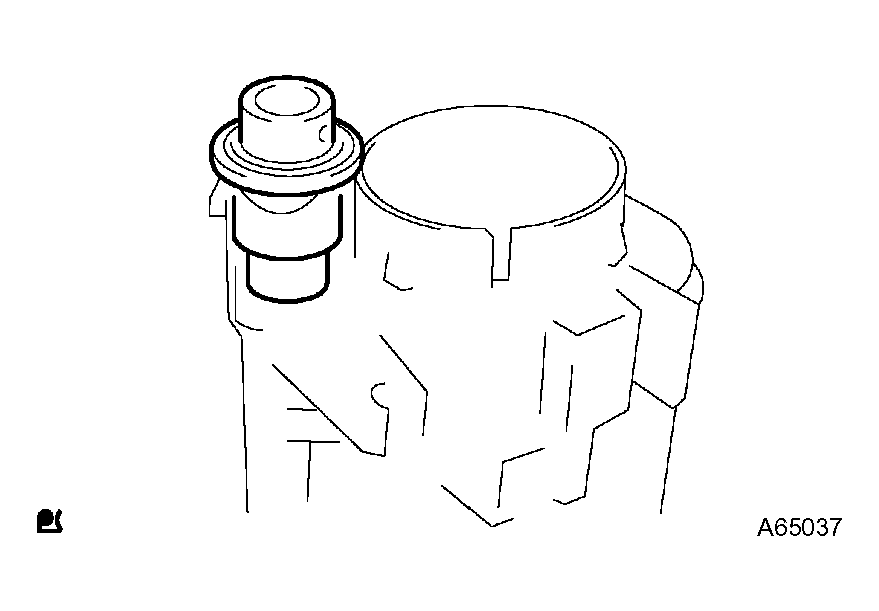

  15. REMOVE FUEL PRESSURE REGULATOR ASSY
    1. Pull out the fuel pressure regulator from the fuel tank fuel filter.
    2. Remove the O-ring from the fuel pressure regulator.
    Fig 14: Removing Fuel Pressure Regulator Assy
    G04391454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL FUEL PRESSURE REGULATOR ASSY
    1. Apply a light coat of gasoline or grease to a new O-ring, and install it to the fuel pressure regulator.
    2. Push in the fuel pressure regulator to the fuel tank fuel filter.
  17. INSTALL FUEL PUMP FILTER
    1. Install the fuel pump filter with a new clip.
  18. INSTALL FUEL PUMP
    1. Apply a light coat of gasoline or grease to the O-ring of the fuel pump.
    2. Push in the fuel pump to the fuel tank fuel filter.
  19. INSTALL FUEL PUMP HARNESS
  20. INSTALL FUEL SUCTION PLATE SUB-ASSY
  21. INSTALL FUEL SENDER GAUGE ASSY
  22. INSTALL FUEL PUMP CUSHION RUBBER
  23. INSTALL FUEL SUCTION SUPPORT NO. 2
  24. INSTALL VAPOR PRESSURE SENSOR ASSY
  25. INSTALL FUEL SUCTION TUBE ASSY W/ PUMP & GAUGE
    1. Install a new gasket to the fuel suction tube.
    2. Install the fuel suction tube.
    NOTE:
    • Do not damage the fuel pump filter.
    • Do not bend the arm of the fuel sender gauge.
  26. INSTALL FUEL TANK VENT TUBE SET PLATE
    1. Align the mark of the set plate with the fuel suction tube.
    2. Install the set plate with the 8 bolts.

    Torque: 5.9 N.m (60 kgf.cm, 52 in.lbf)

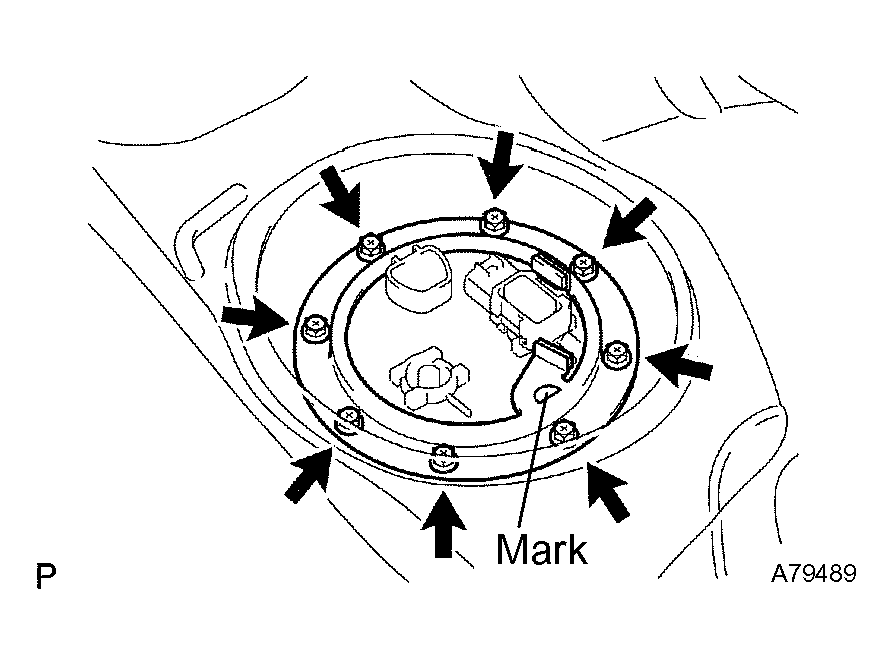

    Fig 15: Identifying Set Plate Bolts And Mark
    G04391455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. CONNECT FUEL PUMP TUBE SUB-ASSY
    1. Install the fuel pump tube with the tube joint clip.
    NOTE:
    • Check that there are no scratches or foreign objects on the connecting part.
    • Check that the fuel tube joint is inserted securely.
    • Check that the tube joint clip is on the collar of the fuel tube joint.
    • After installing the tube joint clip, check that the fuel tube joint has not been pulled off.

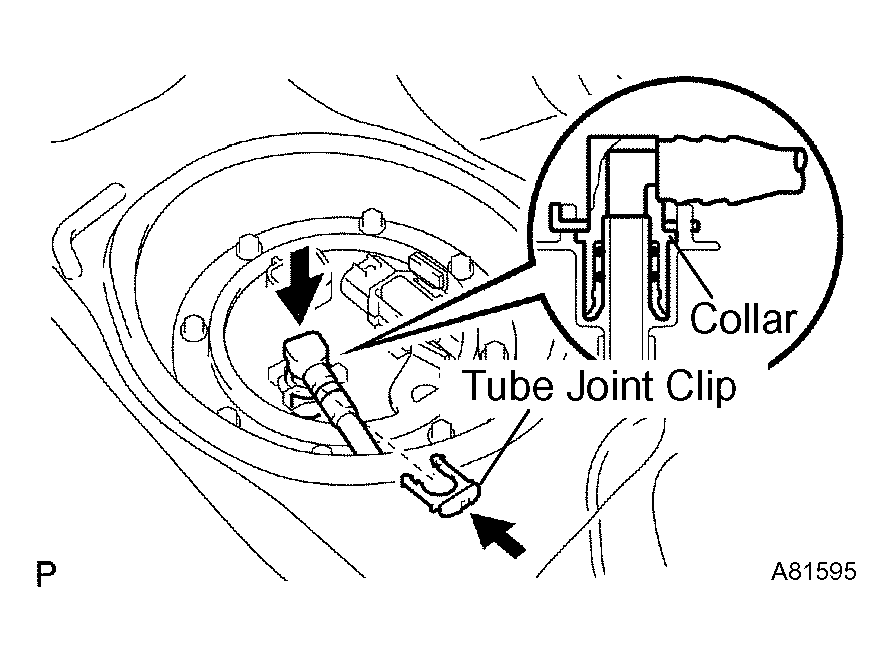

    Fig 16: Installing Fuel Pump Tube With Tube Joint Clip
    G04391456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. CHECK FOR FUEL LEAKS (See  ON-VEHICLE INSPECTION  )
  29. INSTALL REAR FLOOR SERVICE HOLE COVER
  30. INSTALL REAR SEAT CUSHION ASSEMBLY (See  OVERHAUL  )
