Fuel Pump ASSY (1MZ-FE/3MZ-FE): Components

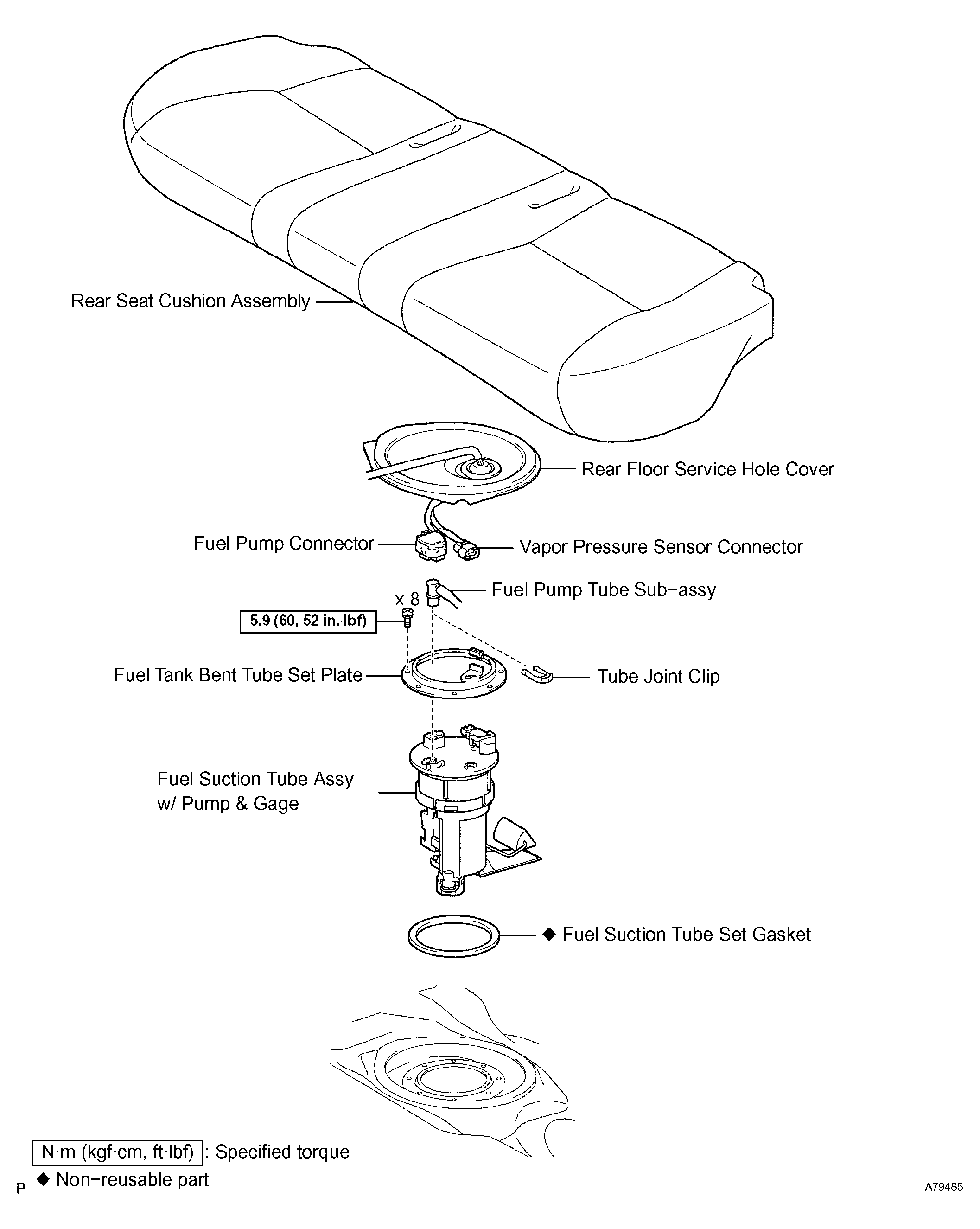

Fig 1: Identifying Fuel Pump Assembly (1MZ-FE/3MZ-FE) Components (1 Of 2)
G04391439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

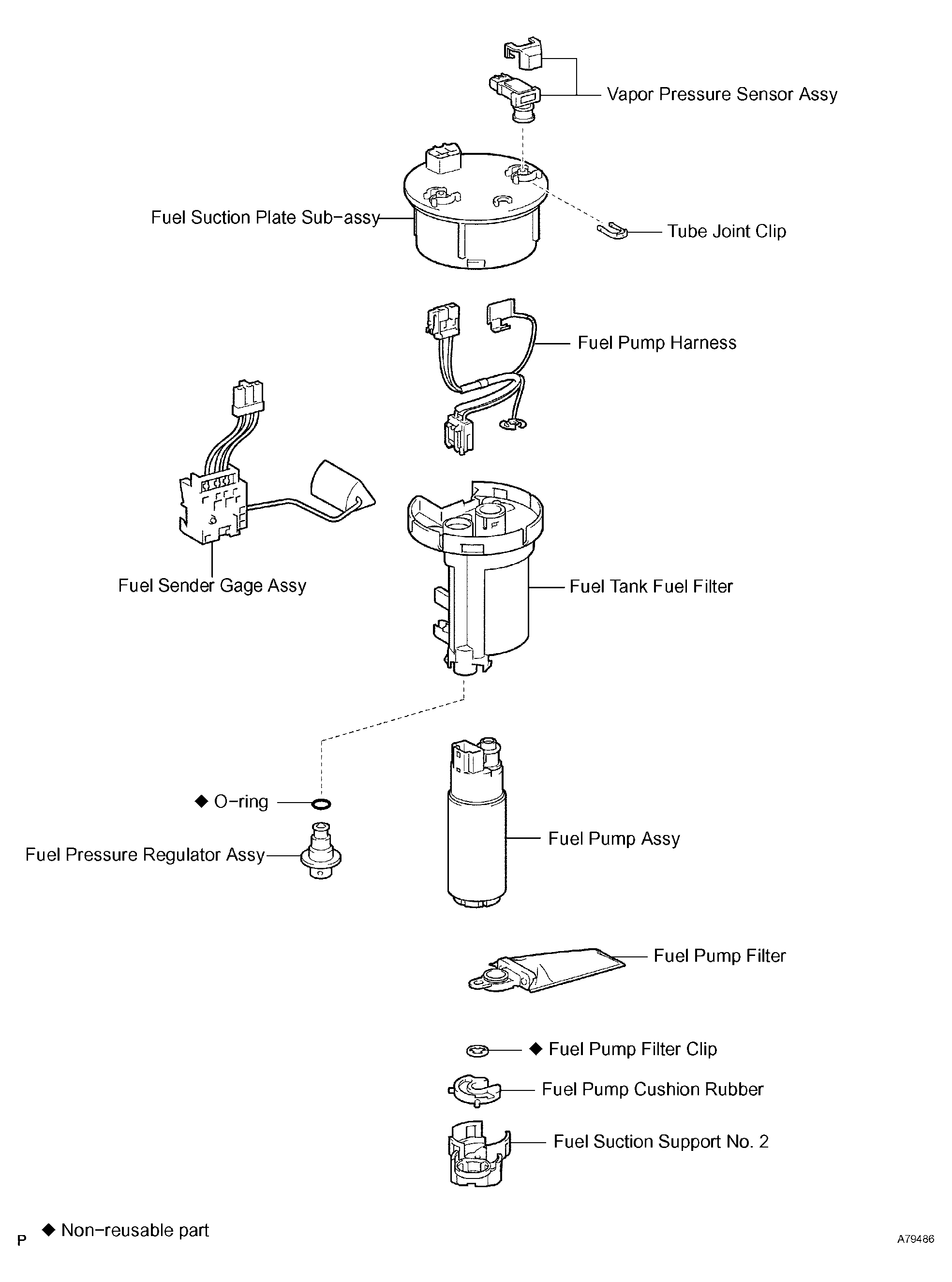

Fig 2: Identifying Fuel Pump Assembly (1MZ-FE/3MZ-FE) Components (2 Of 2)
G04391440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
