Radiator Fan and Condenser Fan: Notes

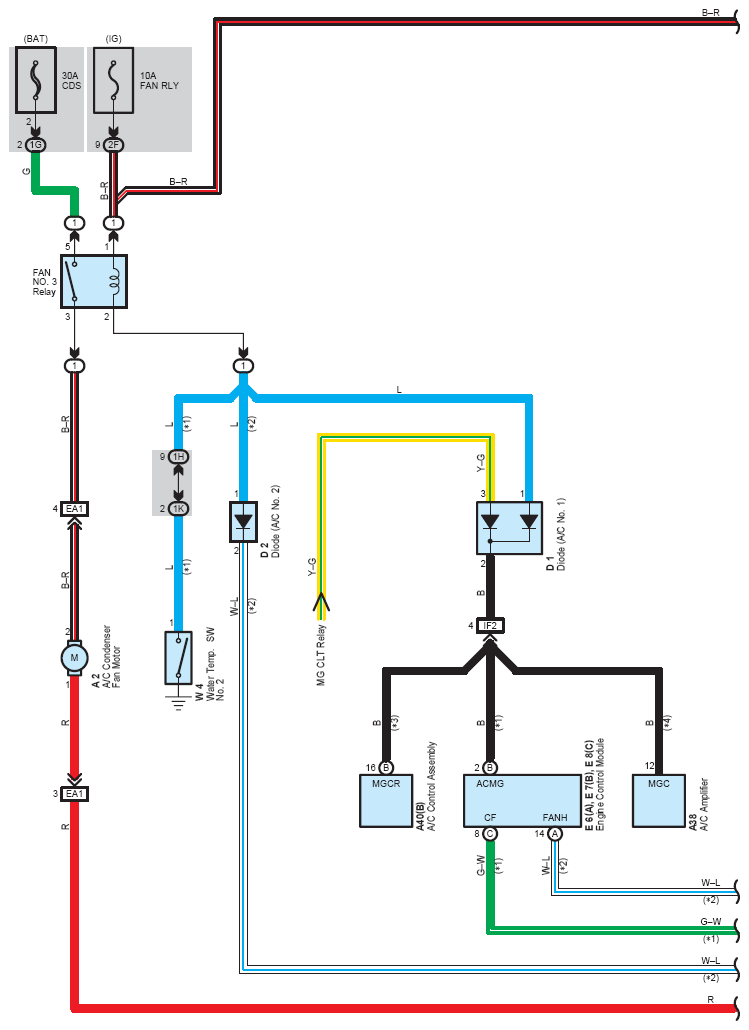

Fig 1: Radiator Fan And Condenser Fan System Wiring Diagram (1 Of 2)
G08775665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

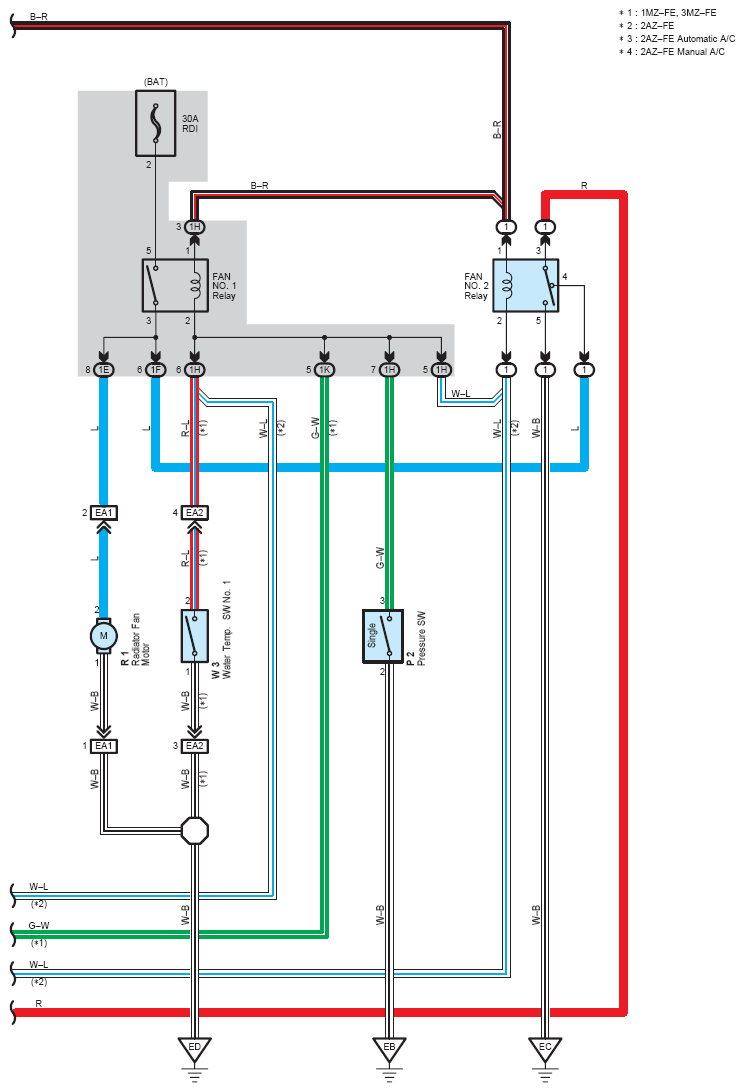

Fig 2: Radiator Fan And Condenser Fan System Wiring Diagram (2 Of 2)
G08775666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
