ABS (TMC Made): Notes

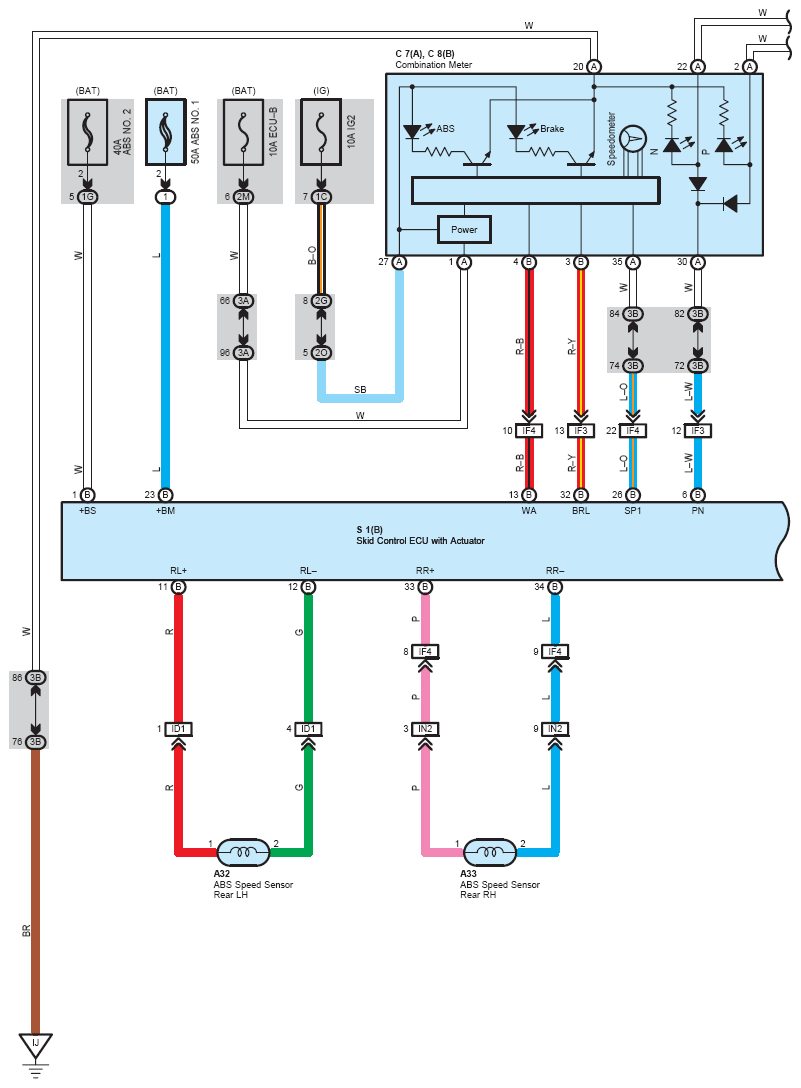

Fig 1: ABS System Wiring Diagram (TMC Made, 1 Of 2)
G08775617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

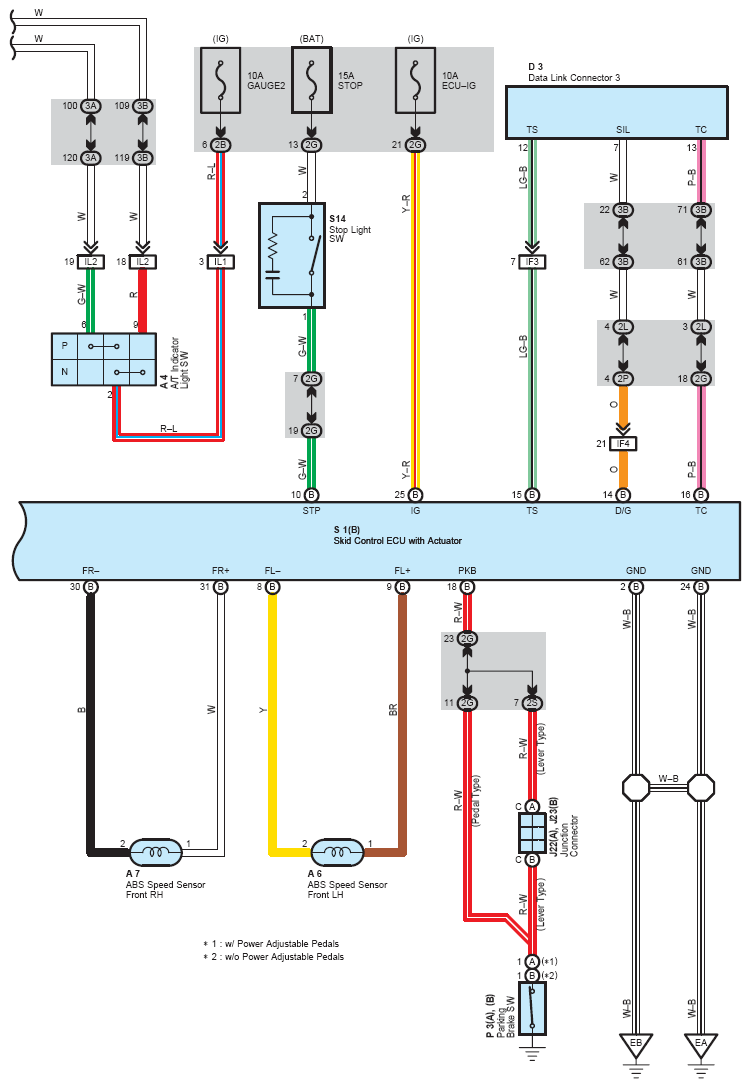

Fig 2: ABS System Wiring Diagram (TMC Made, 2 Of 2)
G08775618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
