Navigation Check Mode (NAVI Color Bar Check)

HINT:

• This mode checks the color display on the radio and navigation assy.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Enter diagnostic mode (See  DIAGNOSTIC START-UP/FINISH  ).
2. Select "Navigation Check" from the "Diagnosis MENU" screen.
   Fig 1: Diagnosis MENU Screen - Navigation Check

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

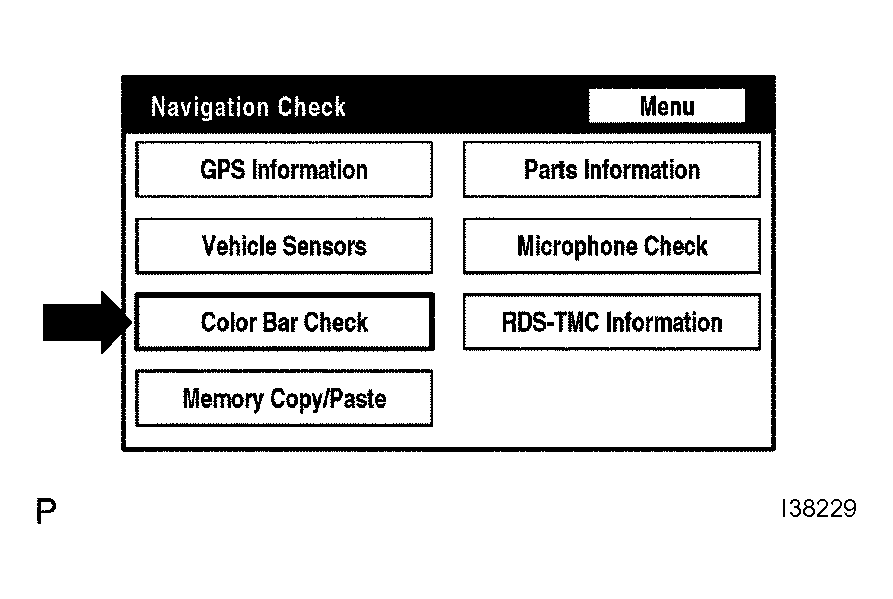

3. Select "Color Bar Check" from the "Navigation Check" screen.
   Fig 2: Identifying Color Bar Check

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

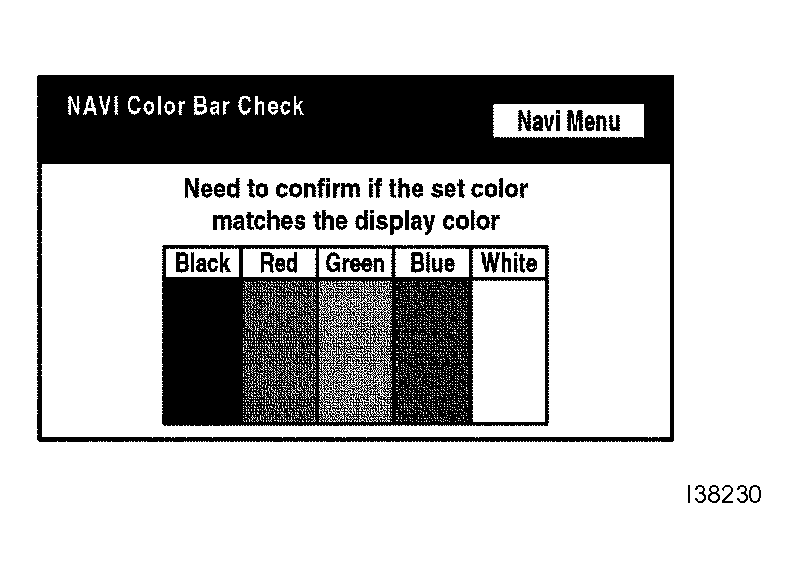

4. Check each color of the color bar when the "NAVI Color Bar Check" screen is displayed.

HINT:

Colors will not be displayed full-screen as in "Display Check Mode".

Fig 3: Identifying NAVI Color Bar Check Screen

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
