Display Check Mode (Touch Switch Check)

HINT:

• This mode checks the touch switch operation condition on the radio and navigation assy.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Enter diagnostic mode (See  DIAGNOSTIC START-UP/FINISH  ).
2. Select "Display Check" from the "Diagnosis MENU" screen.
   Fig 1: Multi-Display Screen - Diagnosis MENU

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3. Select "Touch Switch Check" from the "Display Check" screen.

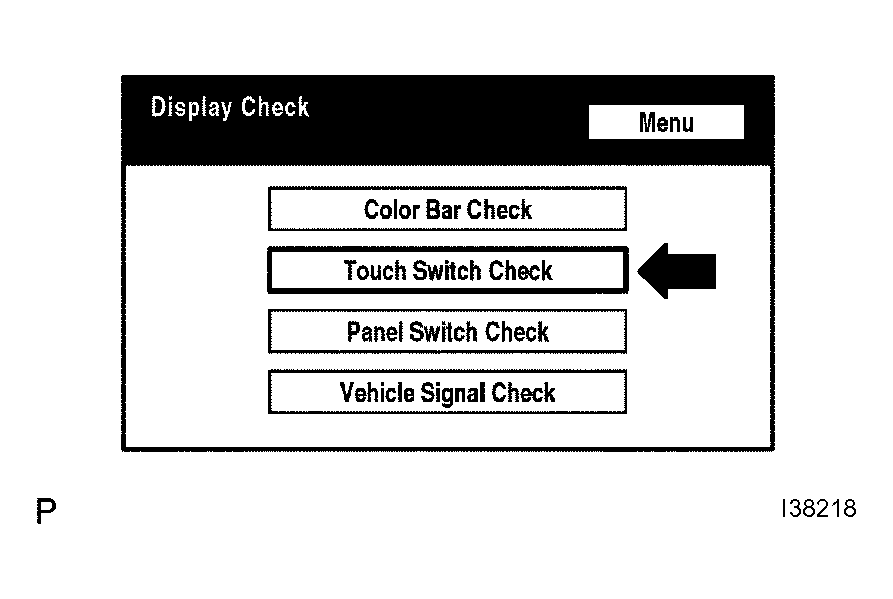

   Fig 2: Identifying Touch Switch Check

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

HINT:

• A "+" mark is displayed where the display is touched.
• The "+" mark remains on the display even after the finger is removed.

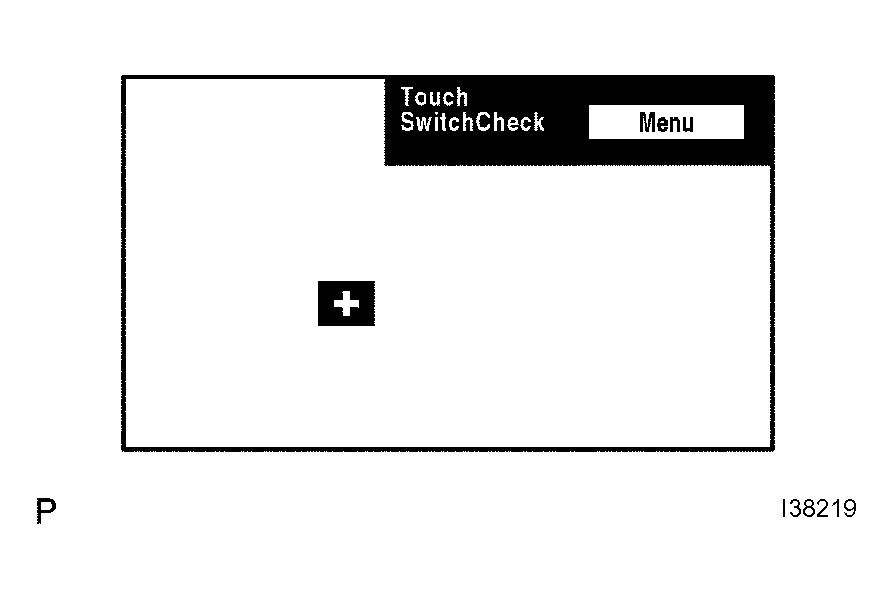

Fig 3: Identifying Touch Switch Check Screen

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
