Display Check Mode (Panel Switch Check)

HINT:

• This mode checks the panel switch operation response on the radio and navigation assy.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Enter diagnostic mode (See  DIAGNOSTIC START-UP/FINISH  ).
2. Select "Display Check" from the "Diagnosis Menu" screen.
   Fig 1: Multi-Display Screen - Diagnosis MENU

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

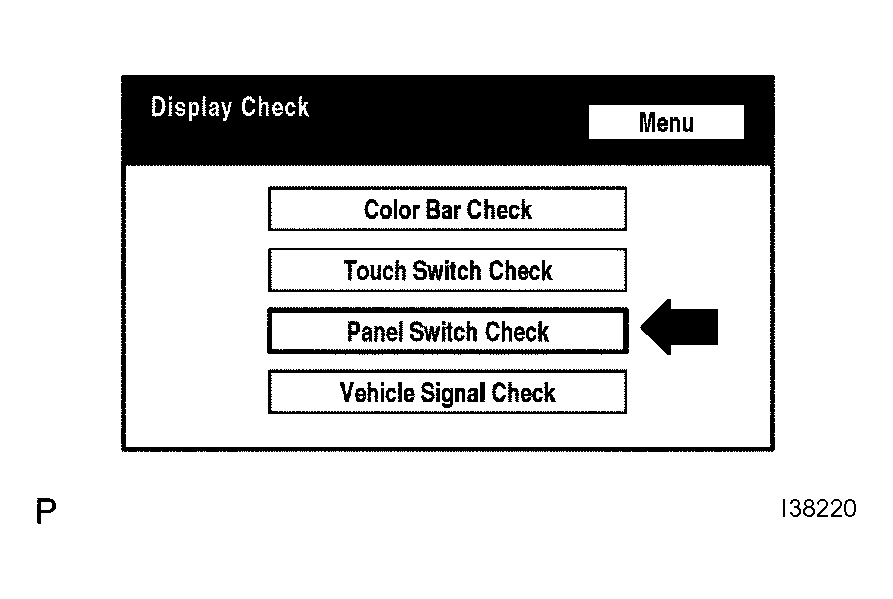

3. Select "Panel Switch Check" from the "Display Check" screen.
   Fig 2: Identifying Panel Switch Check

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4. Operate each switch and check that the switch name and condition are correctly displayed.

HINT:

• Pressing the "DISPLAY" switch for 3 seconds will exit the diagnostic mode.
• "OPEN" and "TILT" switches are not displayed. To test these switches, they must be operated.

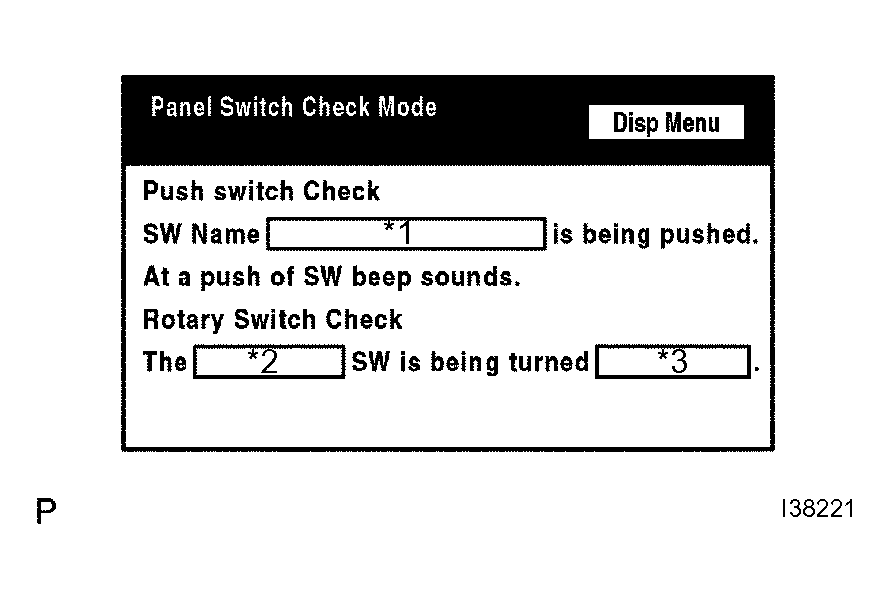

Fig 3: Identifying Panel Switch Check Mode Screen

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
