Valve Body Assembly: Components

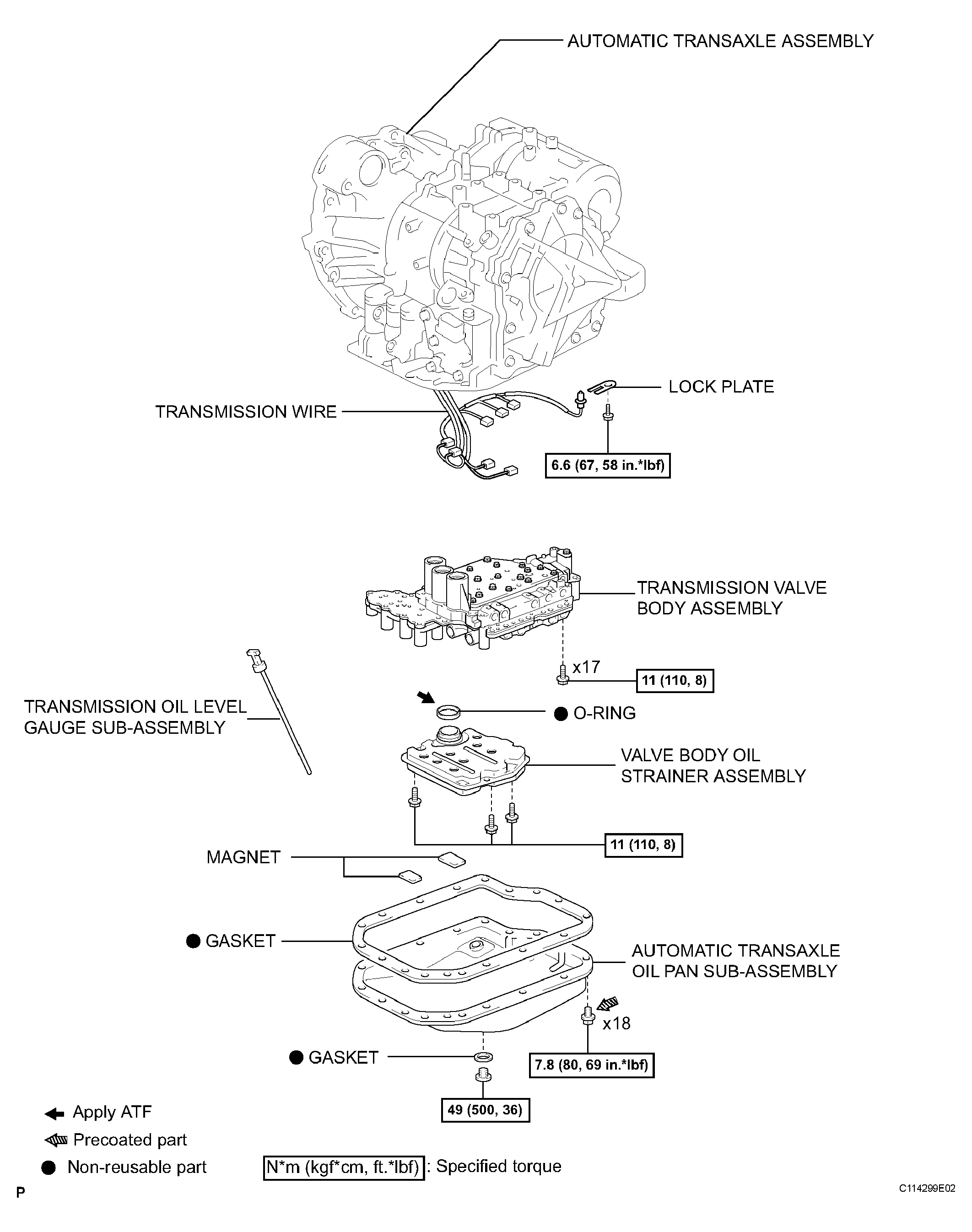

Fig 1: Exploded View Of Valve Body Assembly (1 Of 2)
G04377446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Valve Body Assembly (2 Of 2)
G04377447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
