UNDERDRIVE Planetary Gear: Components

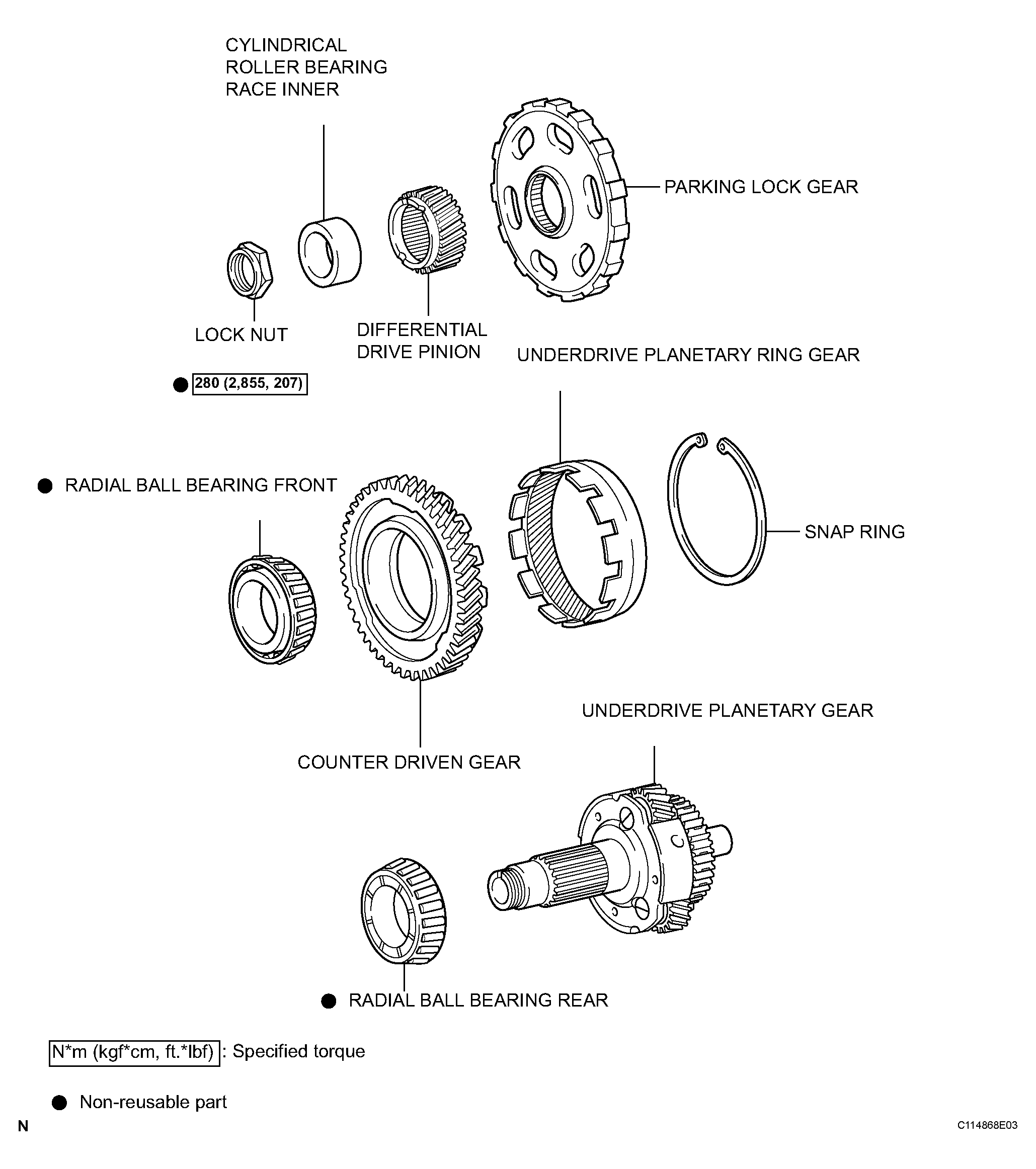

Fig 1: Exploded View Of Underdrive Planetary Gear Components

G04377893

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
