Transmission Wire: Installation

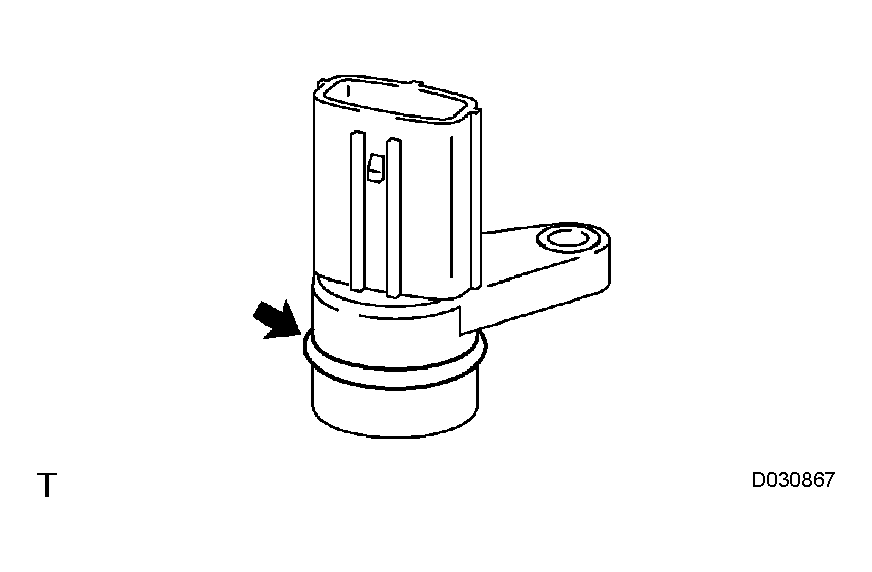

1. Coat the O-ring of the transmission wire connector with ATF and install it.
   Fig 1: Installing O-Ring Of Transmission Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

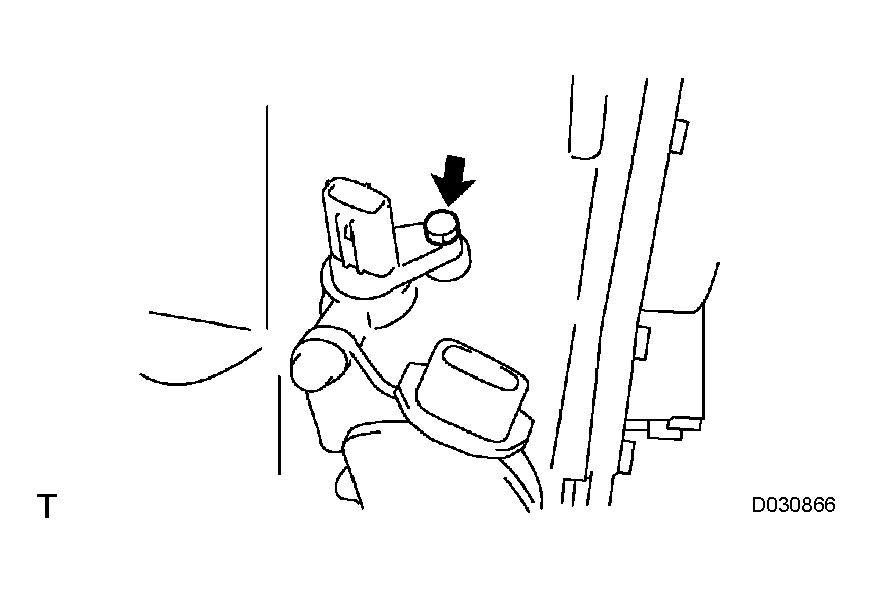

2. Install the transmission wire with the bolt.

   Torque: 5.4 N*m (55 kgf*cm, 48 ft.*lbf)

   Fig 2: Locating Transmission Wire Mounting Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the O-ring of the ATF temperature sensor with ATF.
2. Install the ATF temperature sensor with the lock plate and bolt.

   Torque: 6.6 N*m (67 kgf*cm, 58 ft.*lbf)

3. Connect the 7 shift solenoid valve connectors.
   Fig 3: Locating ATF Temperature Sensor And Solenoids

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 2 magnets in the oil pan.
2. Apply seal packing to the 18 bolts.

   Seal packing:

   THREE BOND 2430 or equivalent

   Fig 4: Installing Magnets In Oil Pan

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

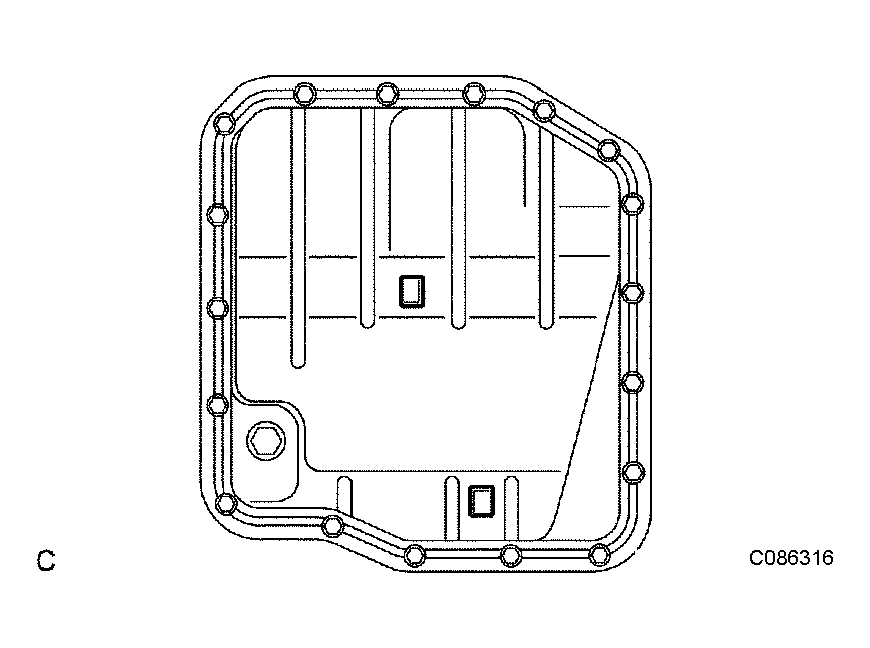

3. Using a new gasket, install the oil pan to the transaxle case with the 18 bolts.
   Fig 5: Identifying Oil Pan Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

   NOTE: Apply seal packing to the bolts and tighten them within 10 minutes of application.

HINT:

(See AUTOMATIC TRANSAXLE SYSTEM )

HINT:

Some systems need initialization after reconnecting the cable to the negative battery terminal (See AUTOMATIC TRANSAXLE SYSTEM ).
