Transmission Wire: Components

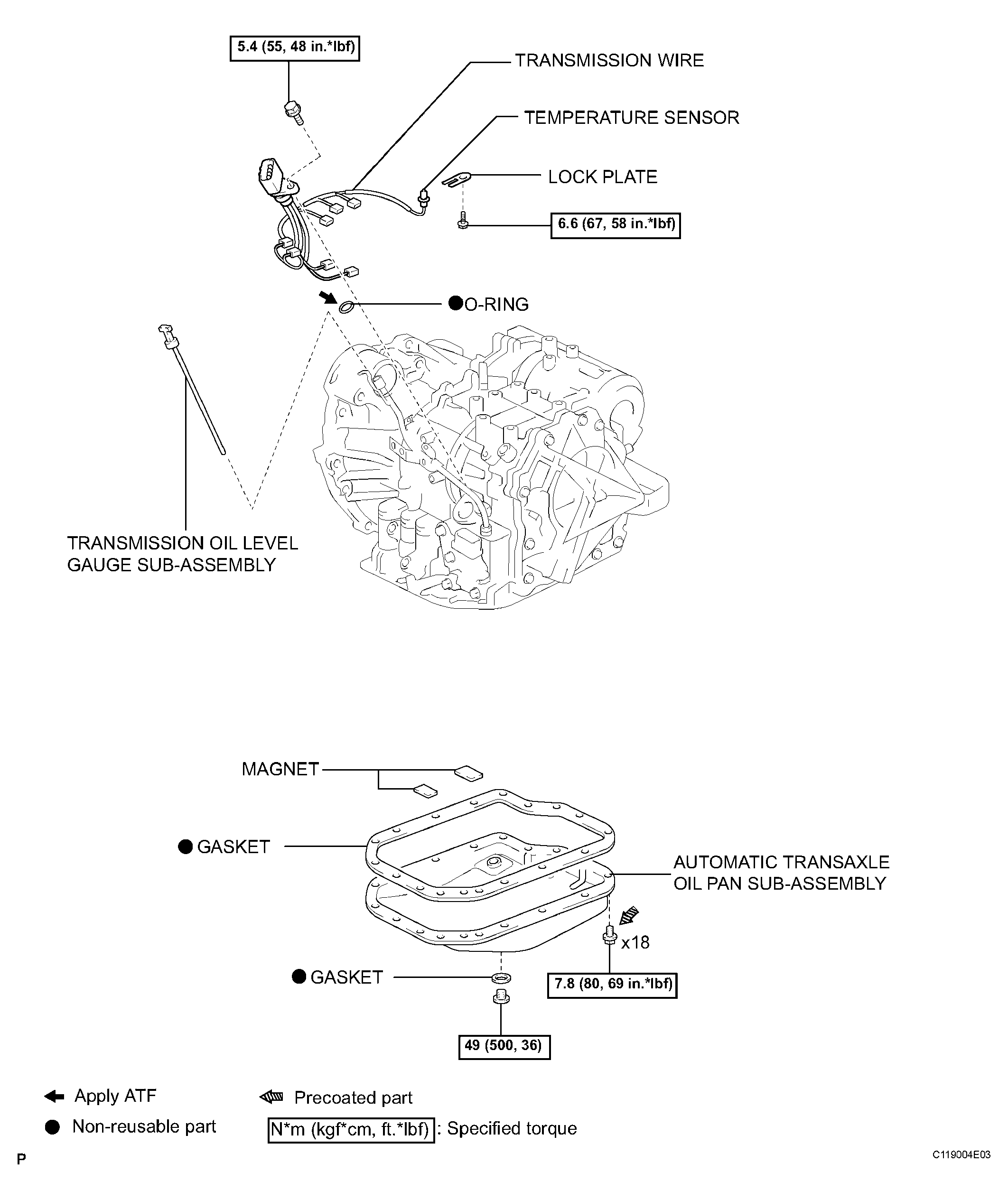

Fig 1: Exploded View Of Transmission Wire

G04377435

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
