Speed Sensor: Removal

REMOVE BATTERY
REMOVE AIR CLEANER ASSEMBLY
HINT:

(See REMOVAL )
REMOVE SPEED SENSOR (NT SENSOR)
1. Disconnect the speed sensor connector.
2. Remove the bolt and speed sensor.

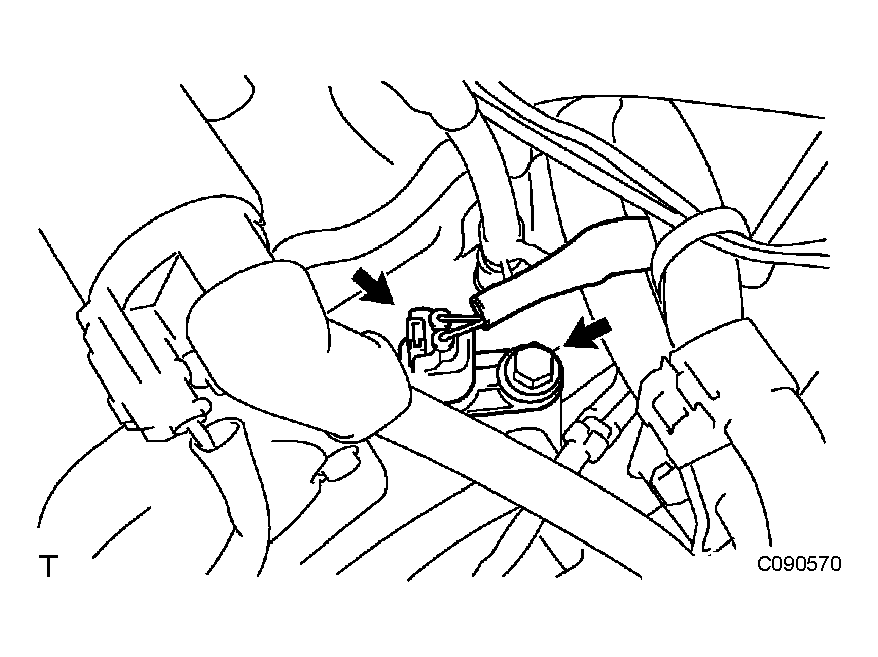

  Fig 1: Locating Speed Sensor Connector And Mounting Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPEED SENSOR (NC SENSOR)
1. Disconnect the speed sensor connector.
2. Remove the bolt and speed sensor.

  Fig 2: Locating Speed Sensor (NC Sensor)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
