Shift Lever: Reassembly

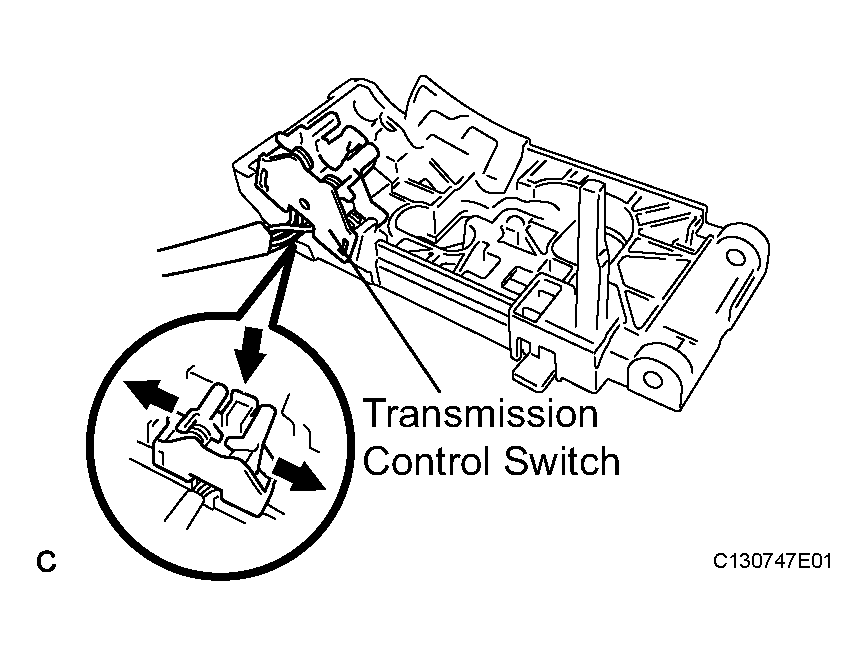

INSTALL TRANSMISSION CONTROL SWITCH
1. Install the transmission control switch to the shift lever guide housing.
  HINT:

  Securely engage the claws.

  Fig 1: Installing Transmission Control Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK SOLENOID
1. Apply MP grease to the hatched area of the shift lever guide housing as indicated in Fig 2.

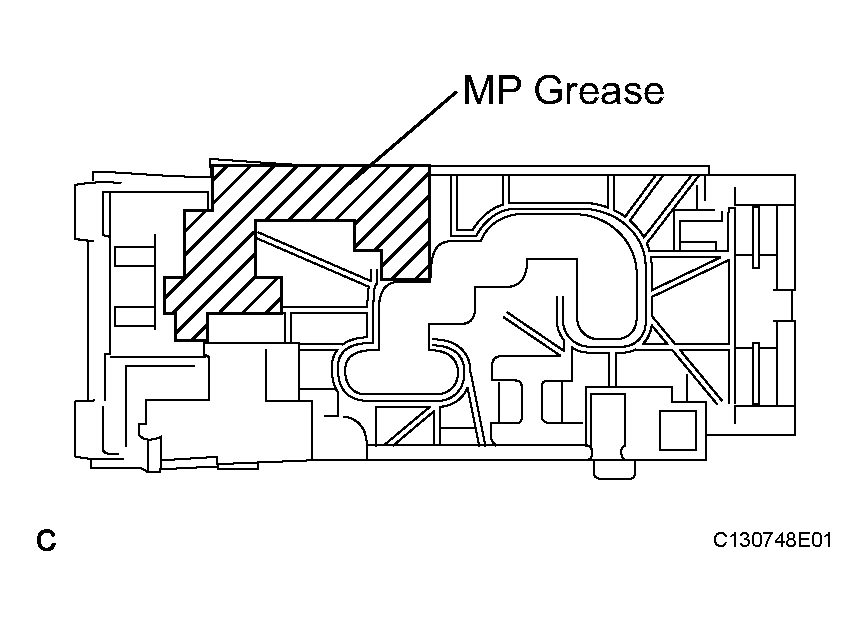

  Fig 2: Applying MP Grease To Hatched Area Of Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the shift lock solenoid with the screw.

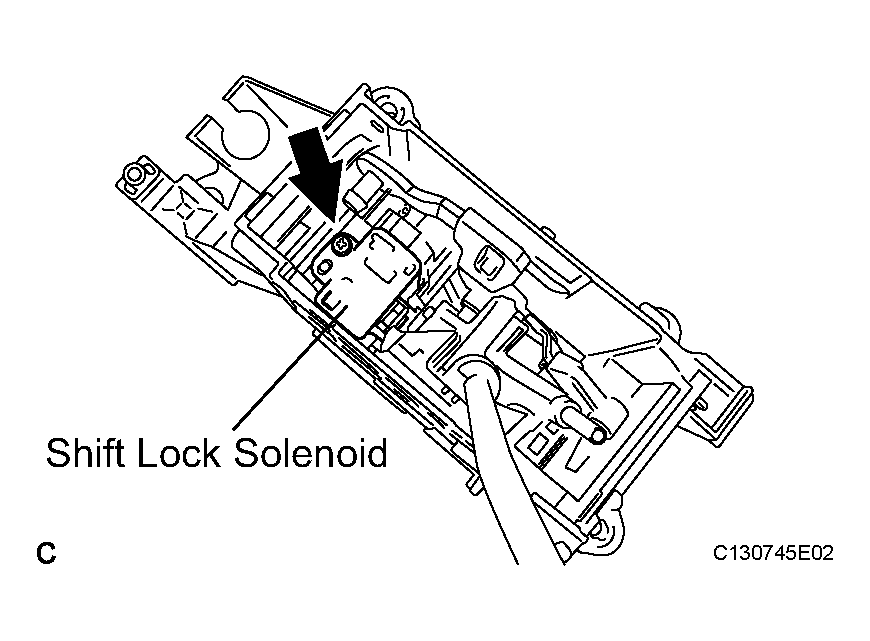

  Fig 3: Installing Shift Lock Solenoid With Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the shift lever guide housing with the lock pin and a new shift lever nut.
  NOTE:
  - Install the shift lever nut and lock pin after engaging the 2 claws.
  - Securely engage the claws.

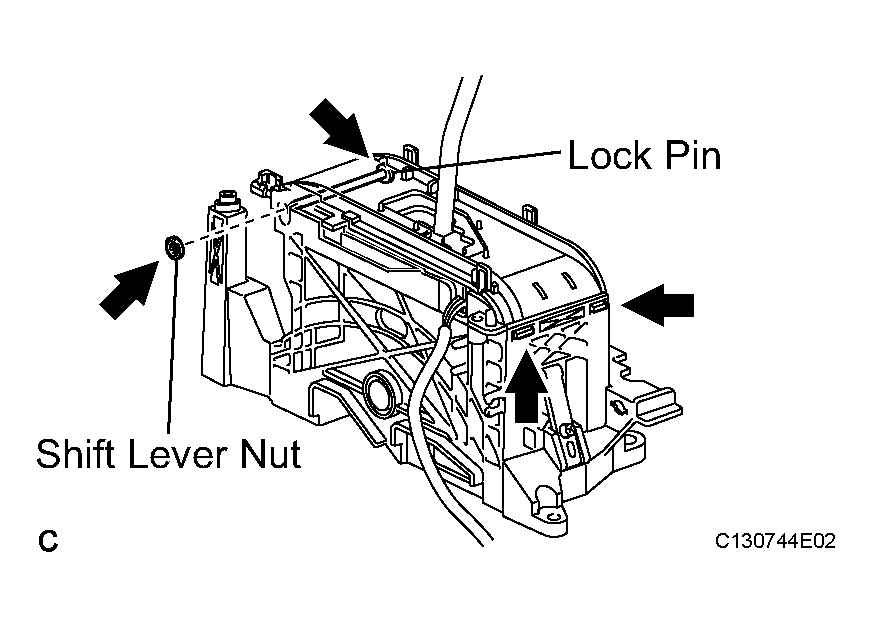

    Fig 4: Installing Shift Lever Nut And Lock Pin
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

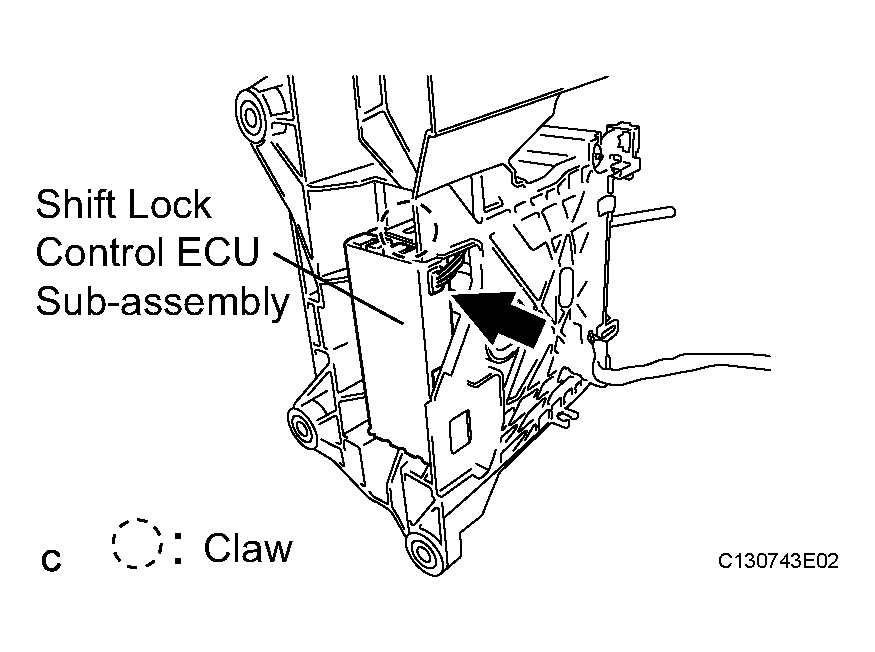

INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
1. Install the shift lock control ECU sub-assembly.
2. Connect the connector to the shift lock control ECU sub-assembly.

  Fig 5: Installing Shift Lock Control ECU Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK RELEASE BUTTON
1. Apply MP grease to the shift lock release button and spring in Fig 6.
2. Install the shift lock release button and spring to the floor shift assembly.
  HINT:

  Securely engage the claws.

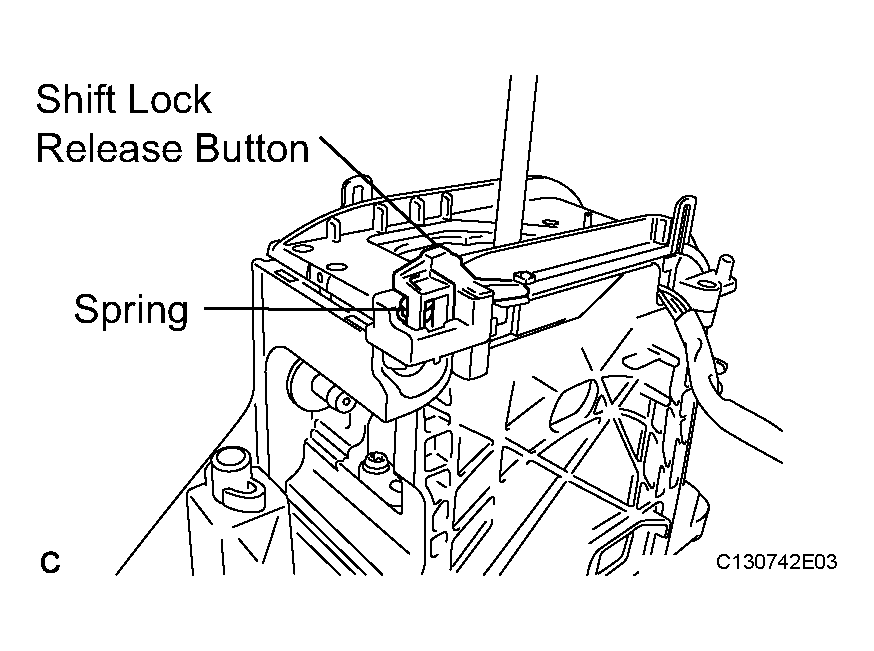

  Fig 6: Installing Shift Lock Release Button And Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install position indicator slide cover No. 2 to the position indicator slide cover.

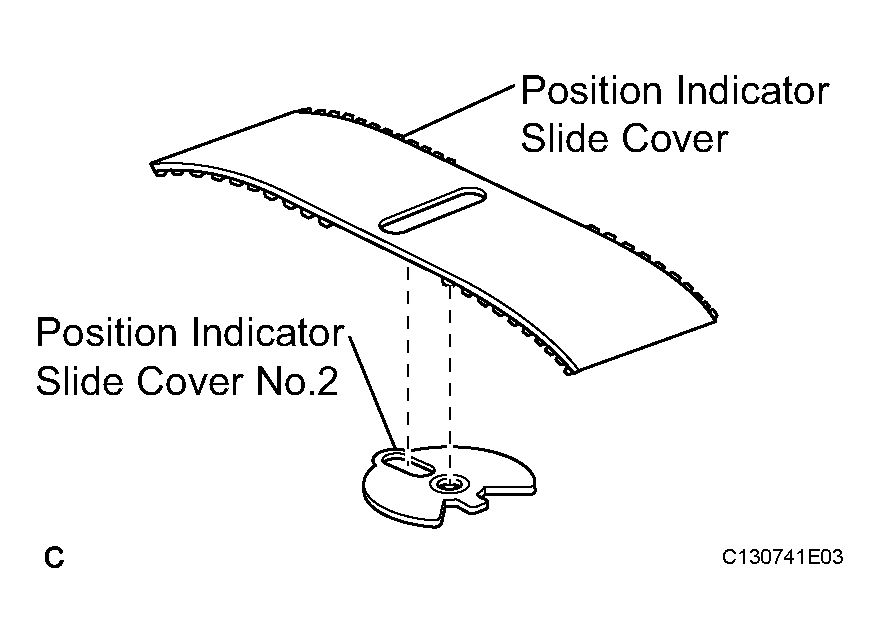

  Fig 7: Installing Position Indicator Slide Cover No. 2 To Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the position indicator slide cover to the shift lever guide housing.

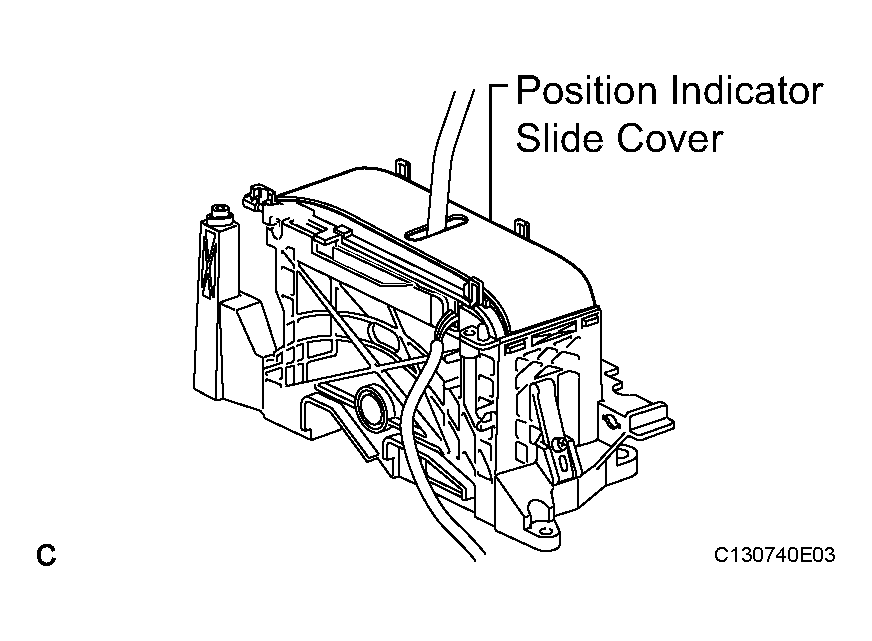

  Fig 8: Installing Position Indicator Slide Cover To Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

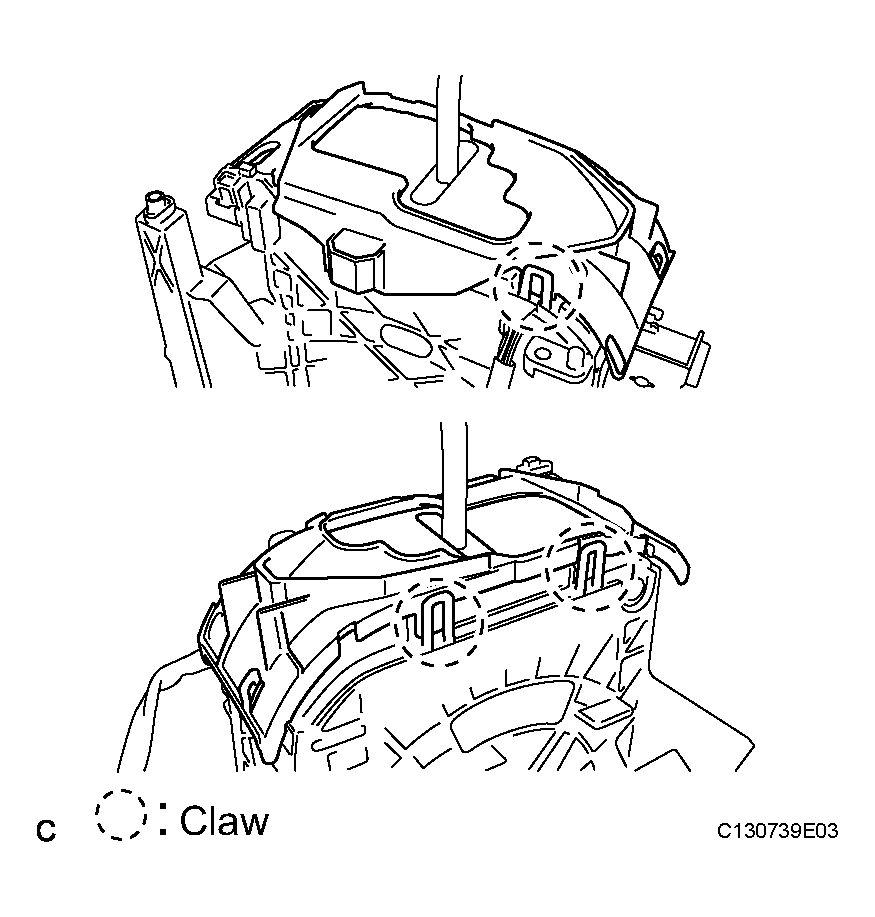

3. Install the position indicator housing upper to the shift lever guide housing.
  HINT:

  Securely engage the claws.

  Fig 9: Installing Position Indicator Housing Upper To Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INDICATOR LIGHT WIRE

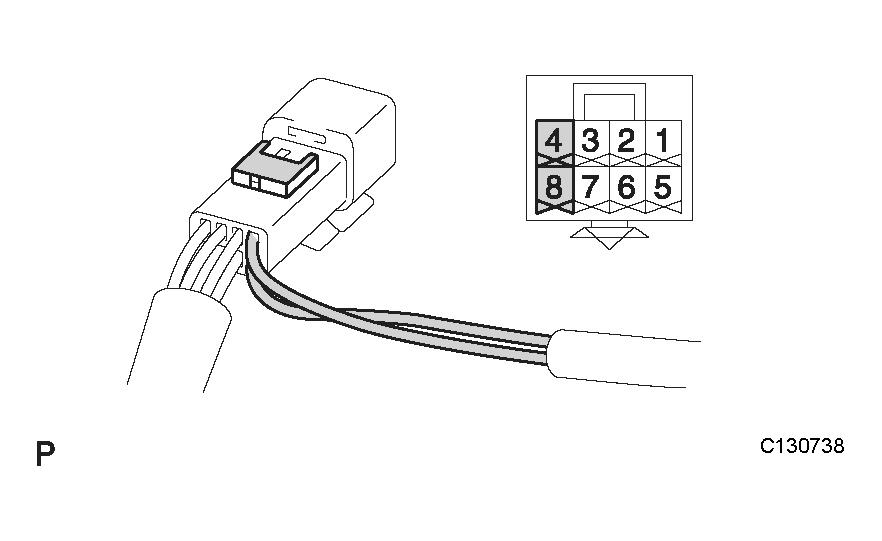

1. Securely connect the 2 terminals of the indicator light wire harness to the transmission control switch connector.
2. Install the position indicator light bulb to the indicator light wire.
3. Install the position indicator bulb cap to the position indicator light bulb.

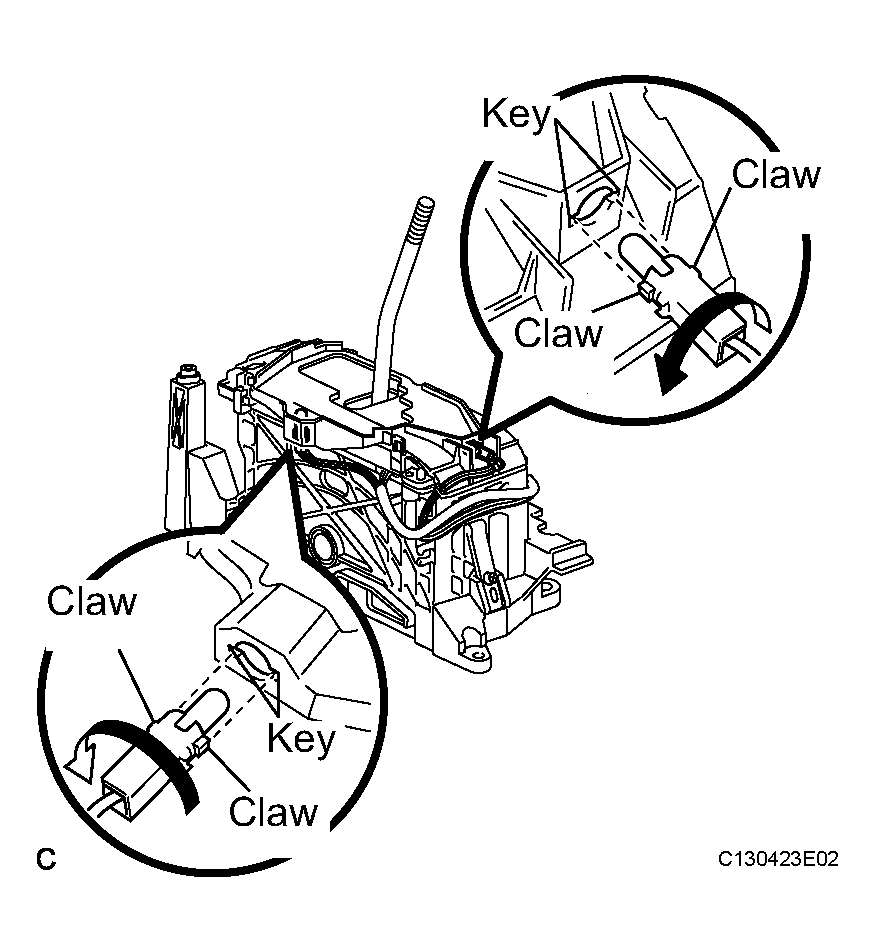

  Fig 10: Installing Indicator Light Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

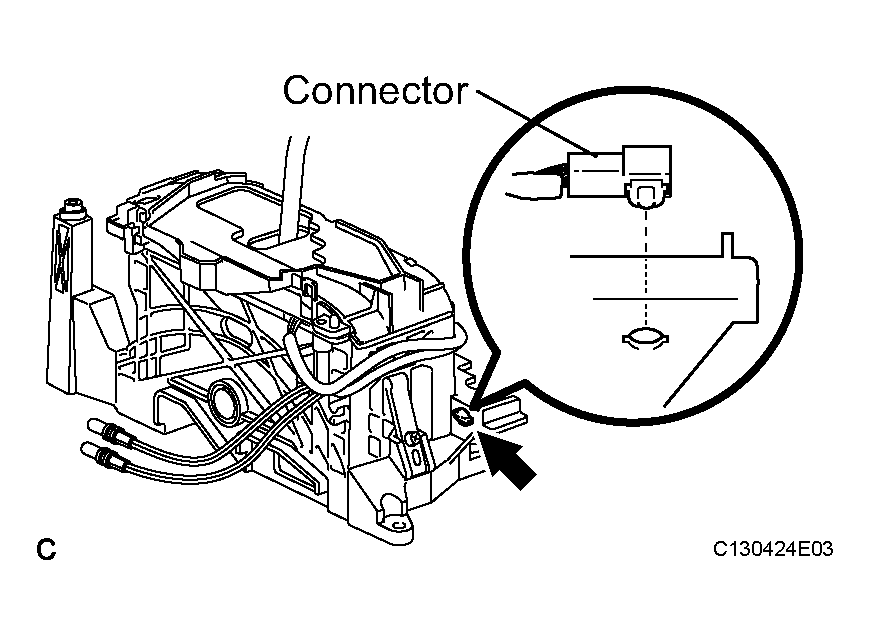

4. Install the transmission control switch connector.

  Fig 11: Installing Transmission Control Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the indicator light wire to the position indicator housing upper.
  NOTE: Make sure that the indicator light wire is securely installed to the position indicator housing upper.

  Fig 12: Installing Indicator Light Wire To Position Indicator Housing Upper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
