Shift Lever: Installation

INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY
1. Install the floor shift assembly with the 4 bolts.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
2. Connect the 2 connectors and clamp to the floor shift assembly.

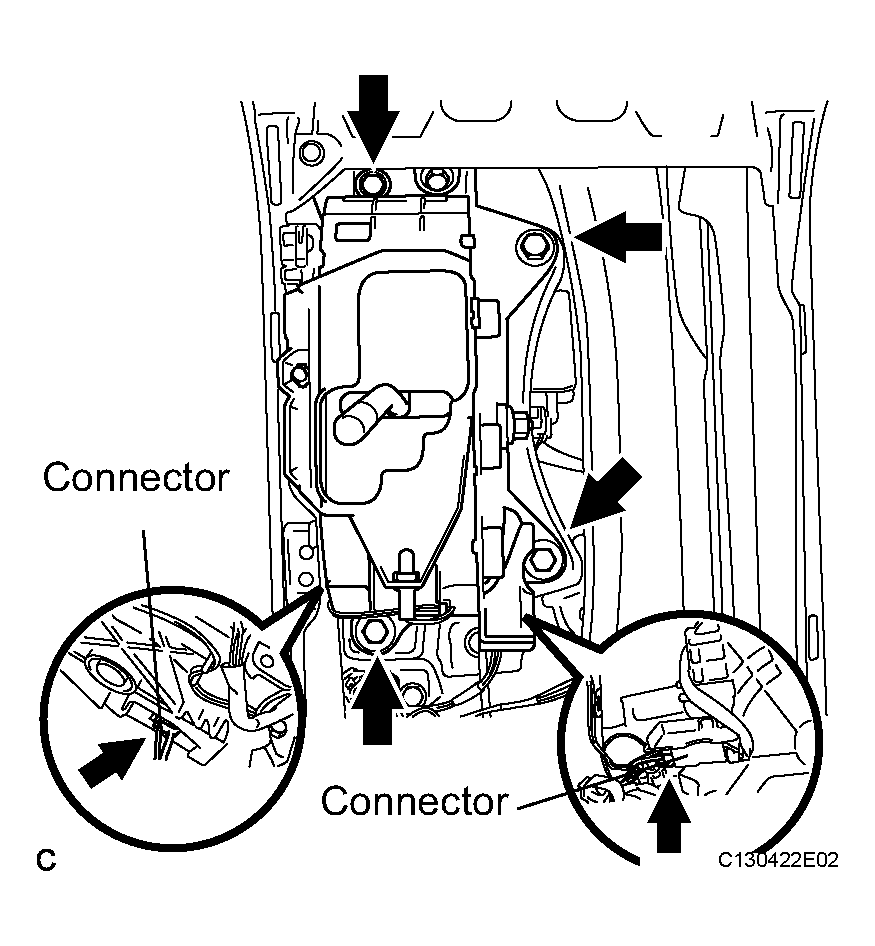

  Fig 1: Installing Transmission Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
1. Connect the transmission control cable assembly to the transmission floor shift assembly.

  Fig 2: Locating Floor Shift Cable Connection Points
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - Install it with the uneven surface facing up.
  - Securely engage the claws.
INSTALL CONSOLE BOX FRONT
HINT:

(See INSTALLATION )
INSTALL CONSOLE BOX ASSEMBLY
HINT:

(See INSTALLATION )
INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
HINT:

(See INSTALLATION )
INSTALL CONSOLE BOX UPPER
HINT:

(See INSTALLATION )
INSTALL SHIFT LOCK RELEASE BUTTON COVER
1. Install the shift lock release button cover to the position indicator housing assembly.

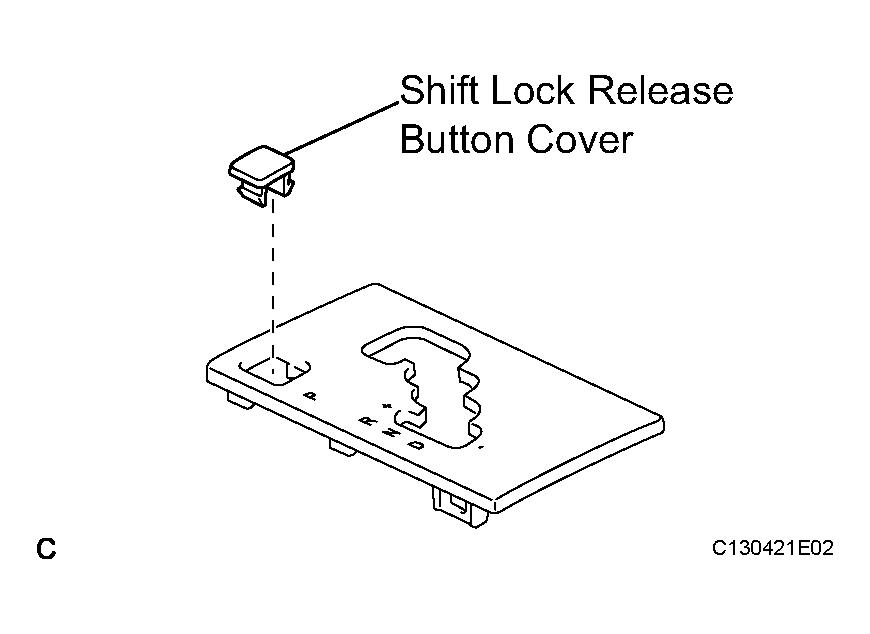

  Fig 3: Installing Shift Lock Release Button Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR HOUSING ASSEMBLY
1. Install the position indicator housing.

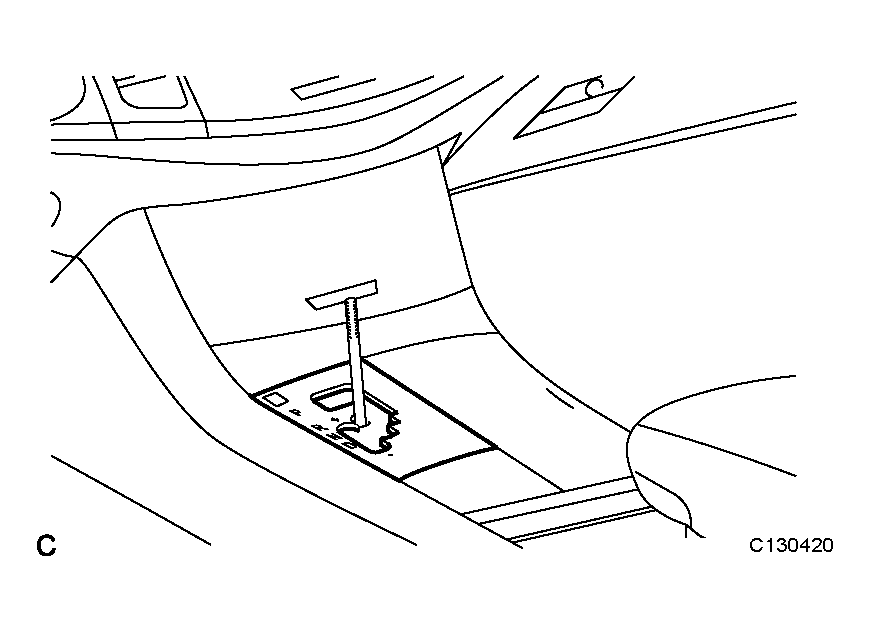

  Fig 4: Installing Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
1. Install the shift lever knob sub-assembly to the floor shift lever assembly.

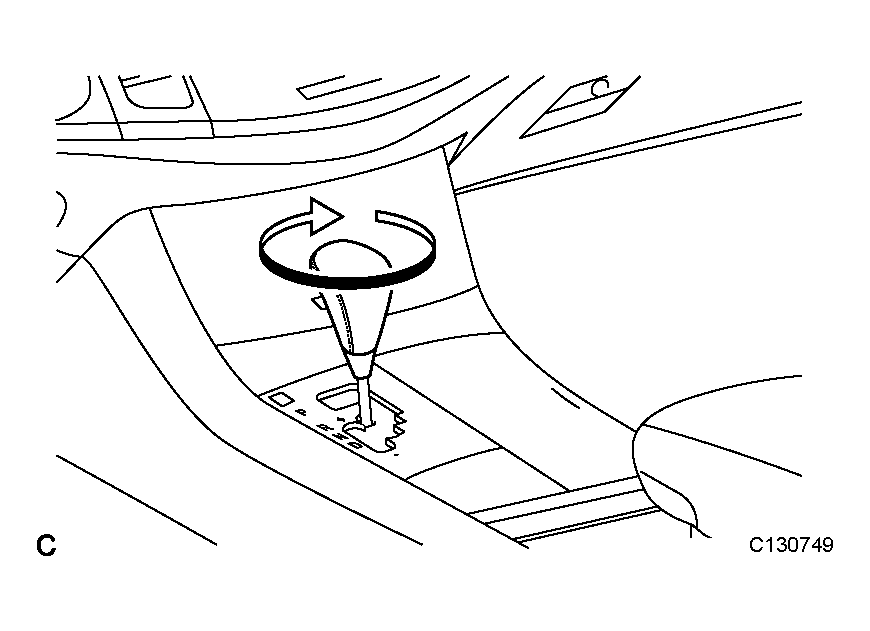

  Fig 5: Installing Shift Lever Knob Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
PERFORM INITIALIZATION
HINT:

(See AUTOMATIC TRANSAXLE SYSTEM )
