Shift Lever: Disassembly

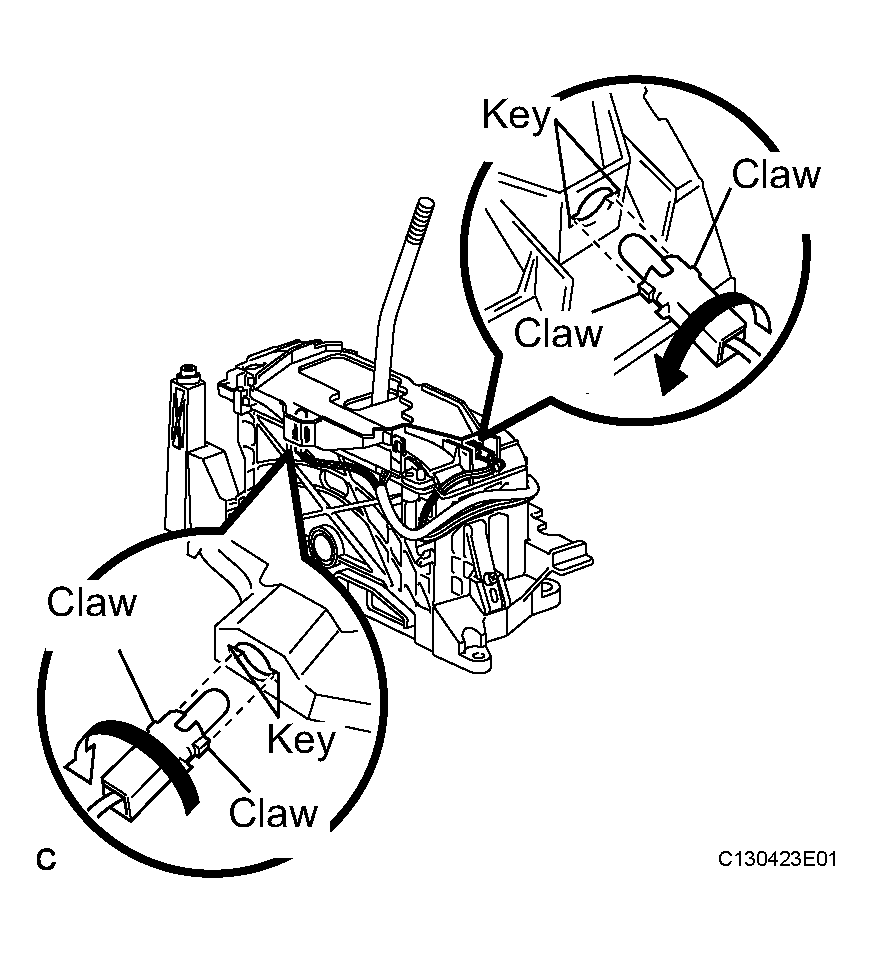

REMOVE INDICATOR LIGHT WIRE
1. Remove the indicator light wire from the floor shift assembly as shown in Fig 1.
2. Remove the position indicator bulb from the indicator light wire.
3. Remove the position indicator bulb cap from the position indicator bulb.

  Fig 1: Removing Indicator Light Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Separate the transmission control switch connector.

  Fig 2: Separating Transmission Control Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a screwdriver, release the stopper.

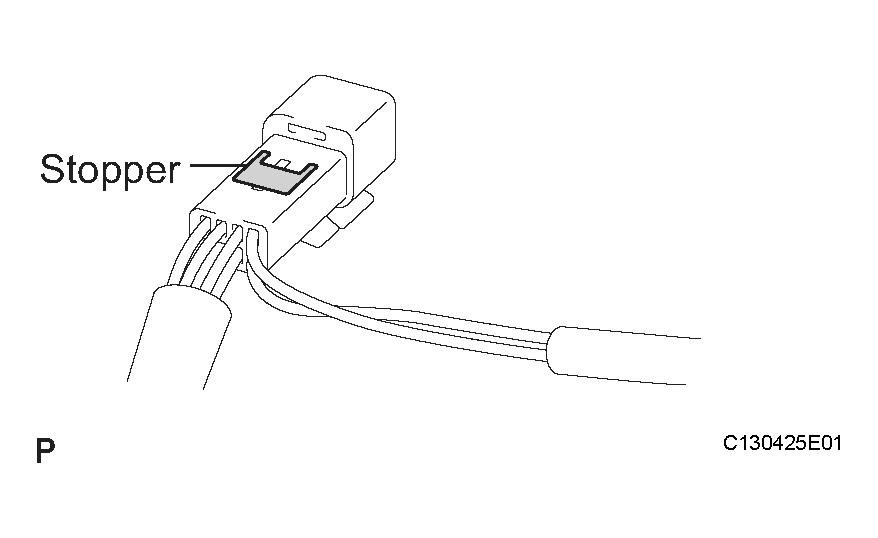

  Fig 3: Locating Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

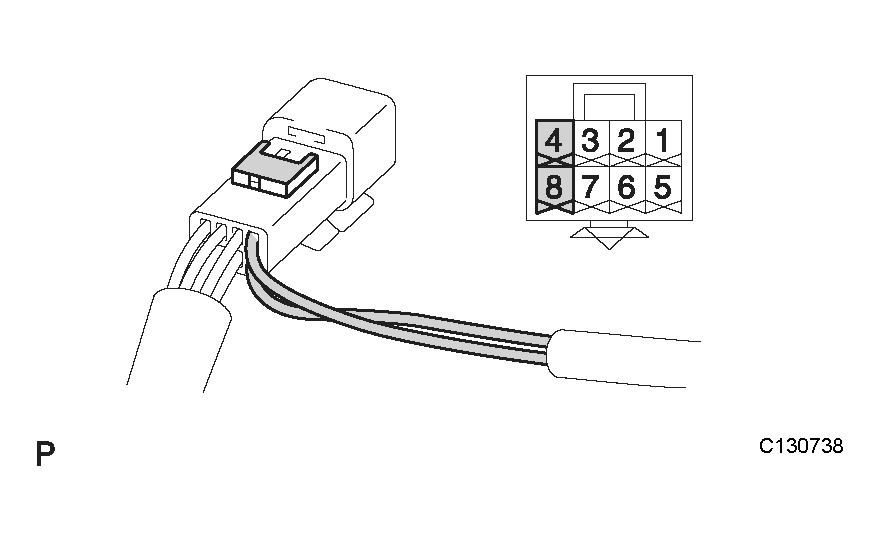

6. Using a screwdriver, disengage the locking lug of terminal (4) and (8), and pull the terminals out from the rear.

  Fig 4: Locating Locking Lug Of Terminal 4 And 8
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Using a screwdriver, remove the position indicator housing upper.
  NOTE: Be careful not to damage the position indicator housing upper.

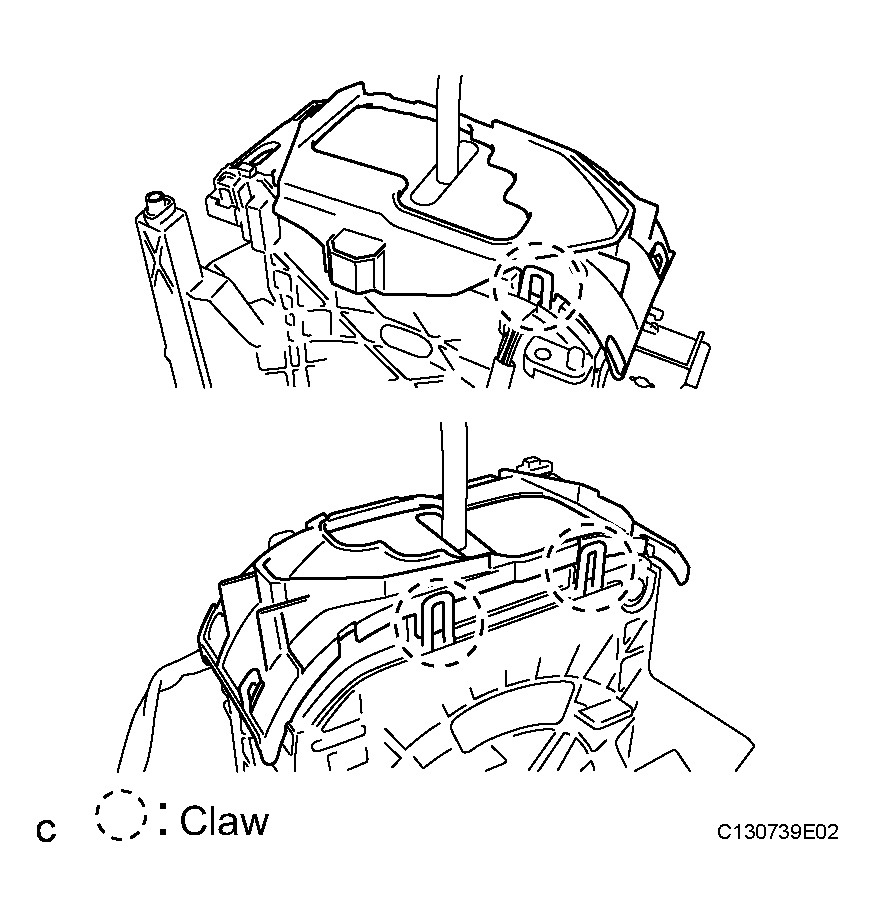

  Fig 5: Removing Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the position indicator slide cover from the shift lever guide housing.

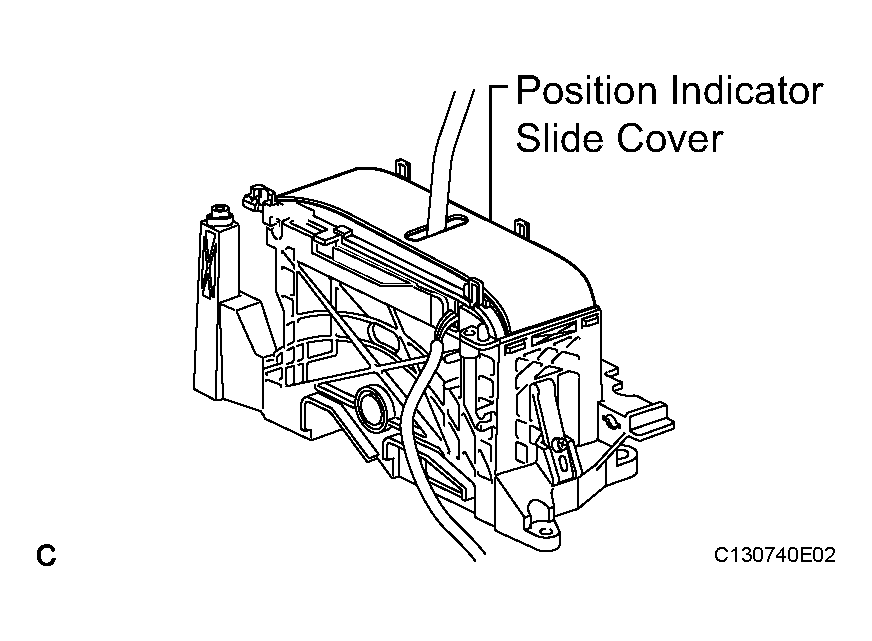

  Fig 6: Removing Position Indicator Slide Cover From Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

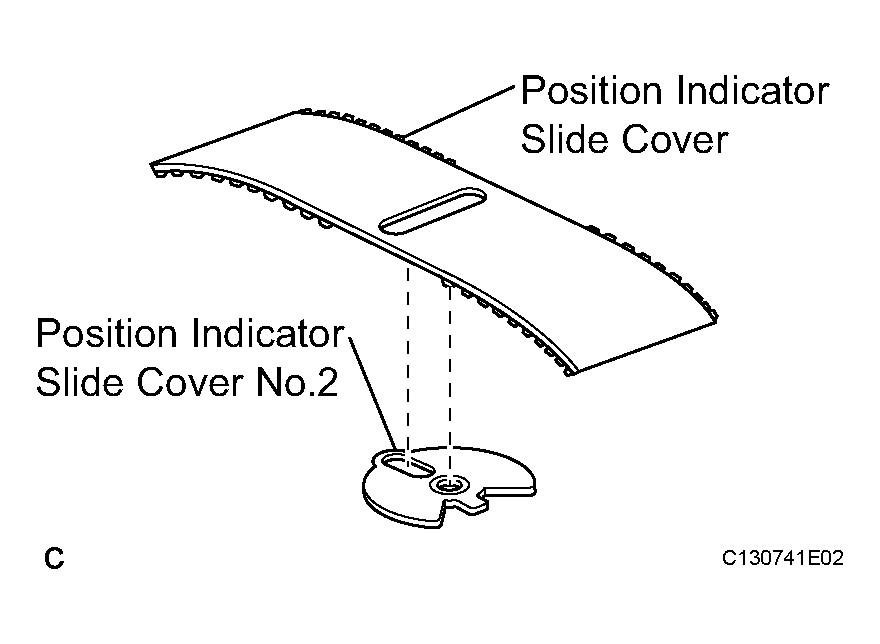

3. Remove the position indicator slide cover No. 2.

  Fig 7: Removing Position Indicator Slide Cover No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK RELEASE BUTTON
1. Remove the shift lock release button and spring from the floor shift assembly.

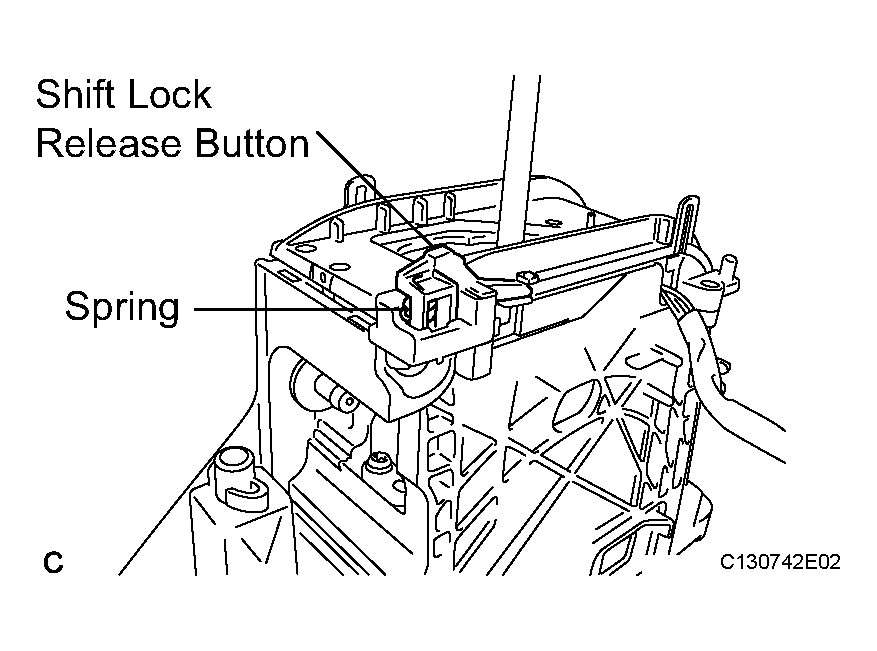

  Fig 8: Removing Shift Lock Release Button
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK CONTROL ECU SUB-ASSEMBLY
1. Disconnect the connector.

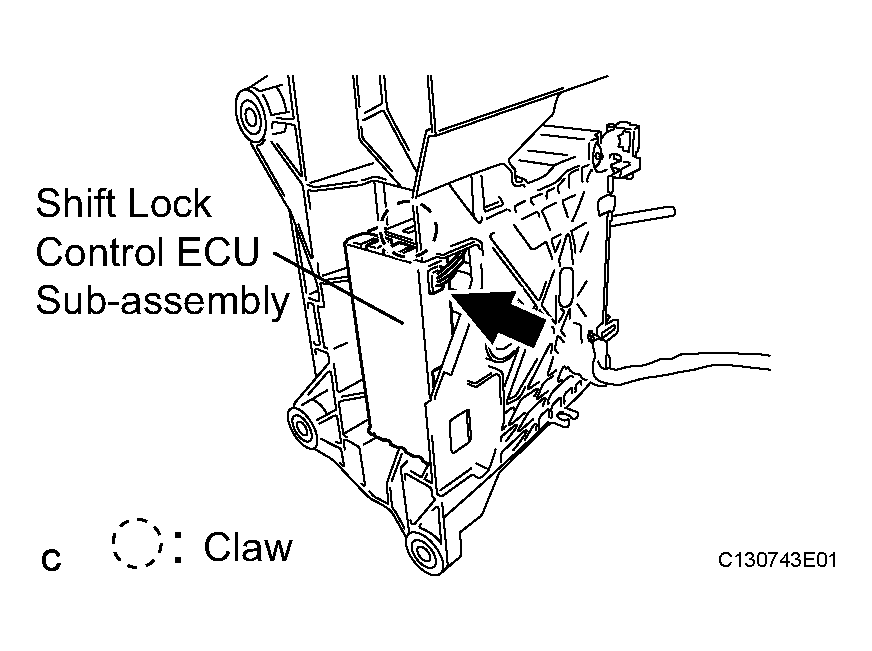

2. Using a screwdriver, remove the shift lock control ECU sub-assembly.

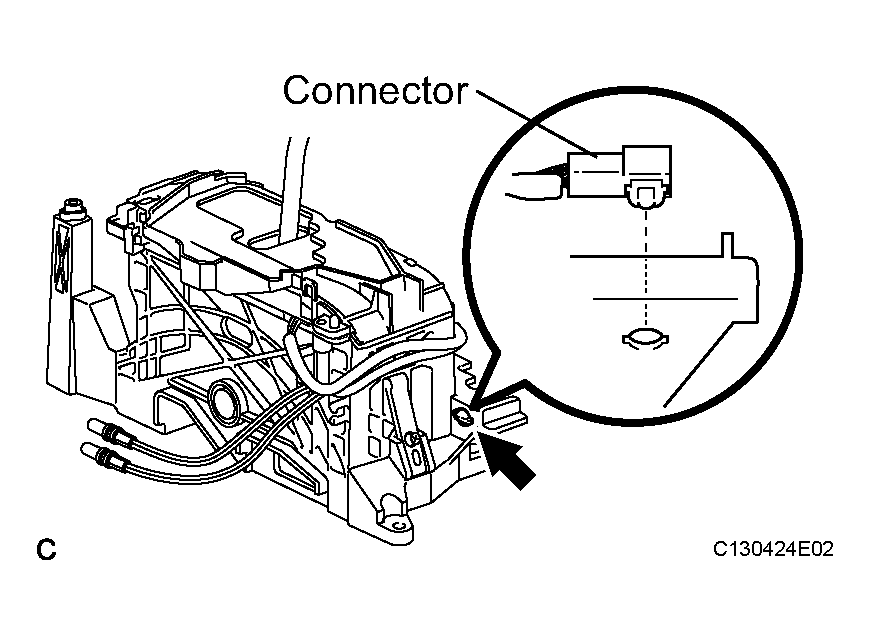

  Fig 9: Removing Shift Lock Control ECU Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK SOLENOID
1. Remove the shift lever nut and lock pin from the floor shift assembly.
2. Remove the shift lever guide housing from the floor shift assembly.
  NOTE: First remove the shift lever nut and lock pin, then disengage the 2 claws.

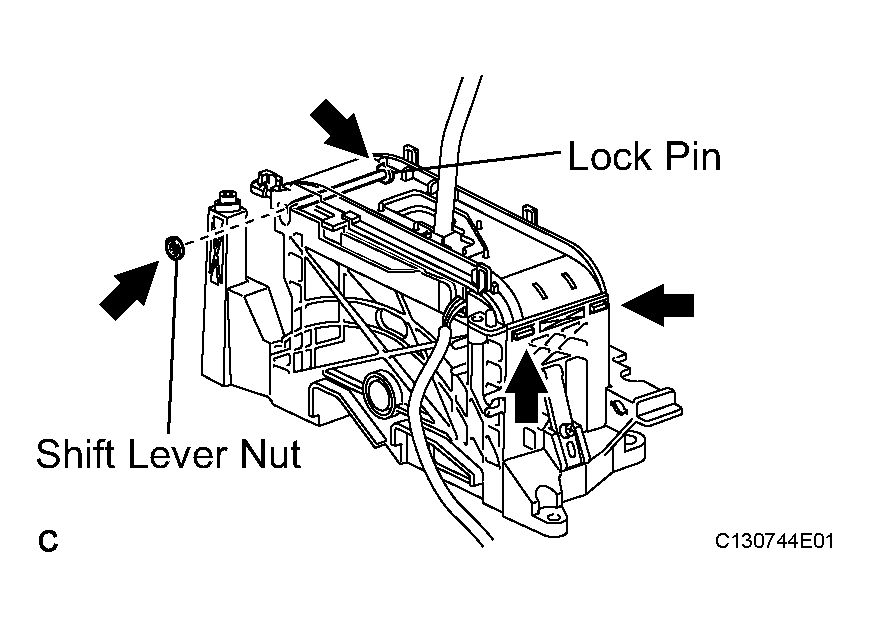

  Fig 10: Removing Shift Lever Nut And Lock Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the screw and shift lock solenoid.

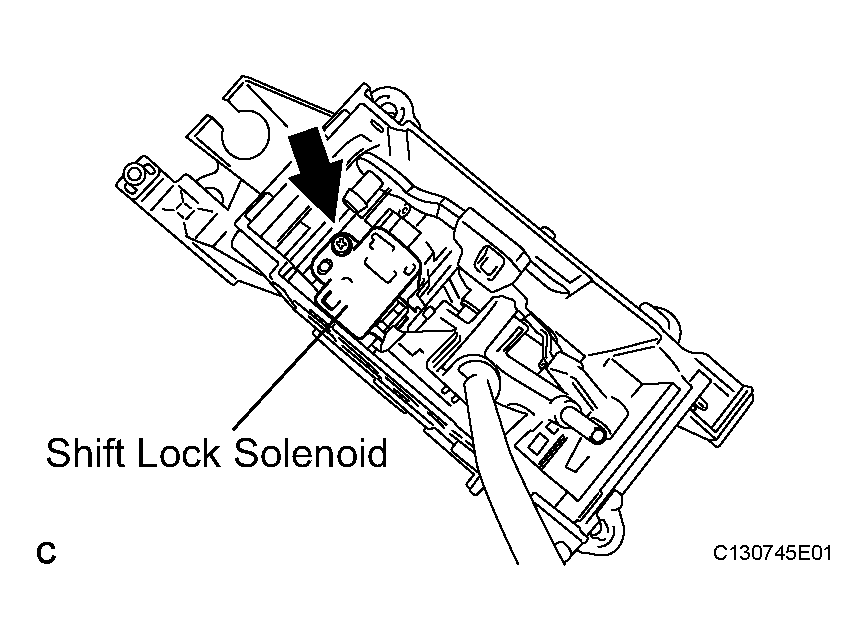

  Fig 11: Removing Shift Lock Solenoid
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL SWITCH
1. Remove the transmission control switch from the shift lever guide housing.

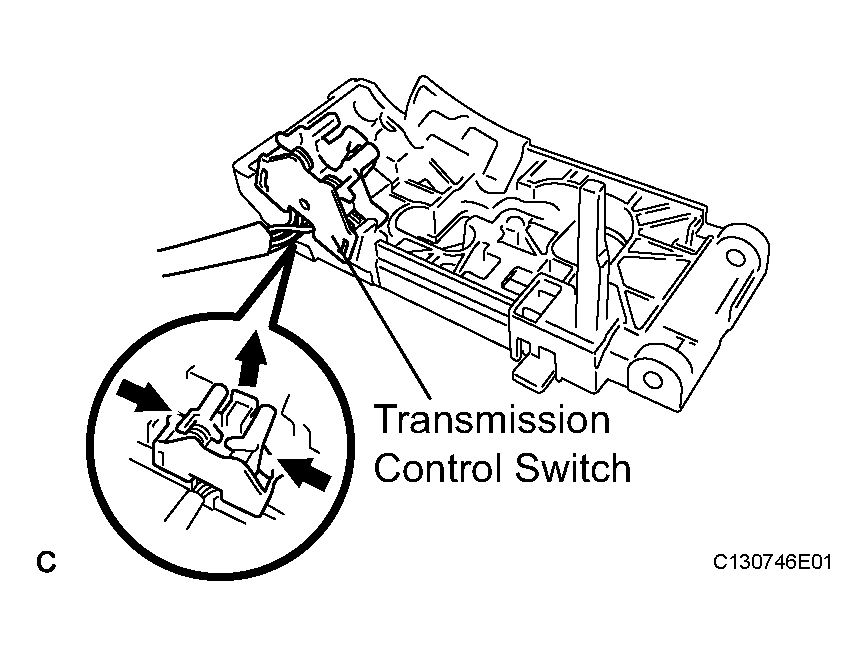

  Fig 12: Removing Transmission Control Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
