Shift Lever: Components

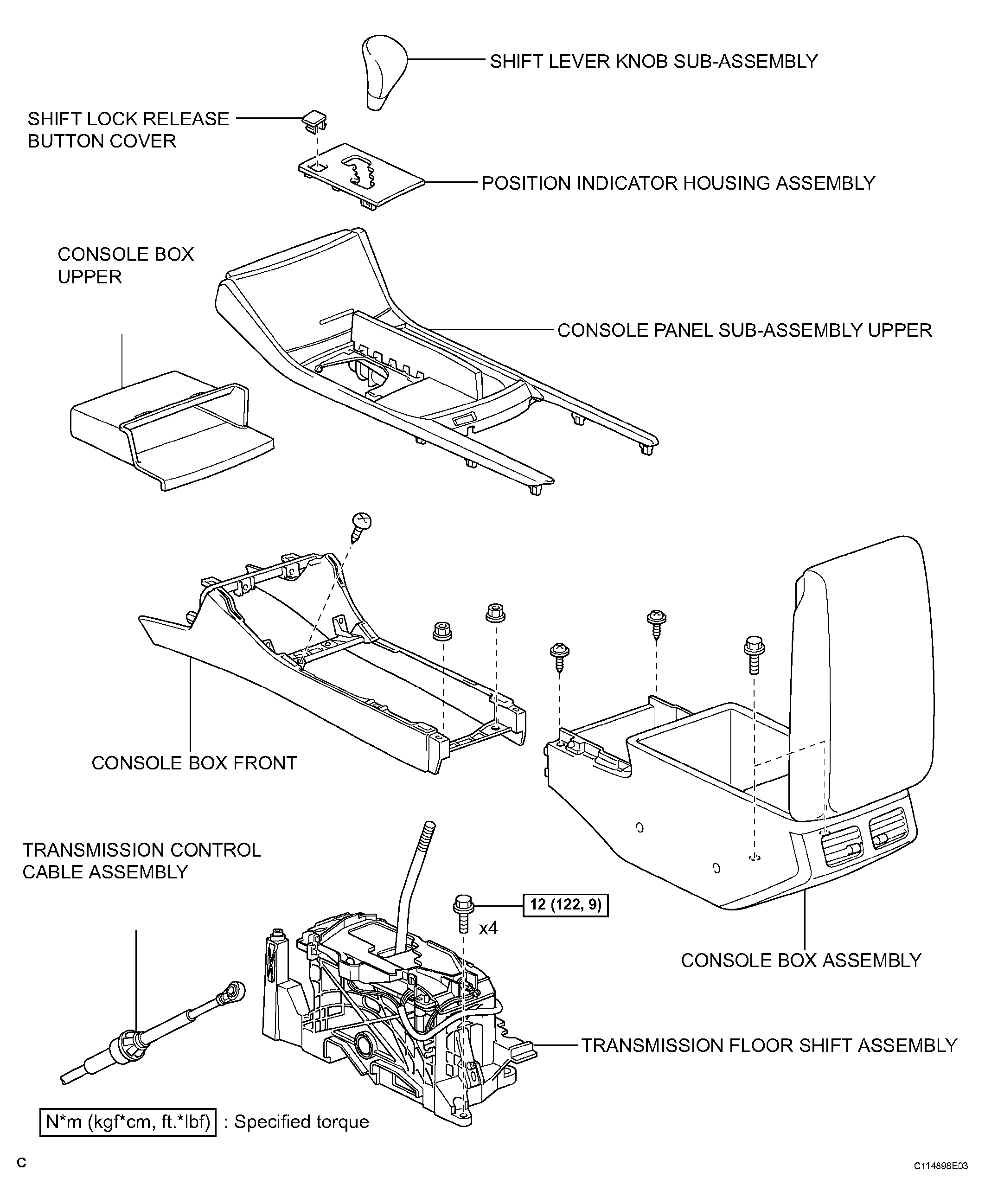

Fig 1: Exploded View Of Shift Lever Components (1 Of 2)
G04377530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

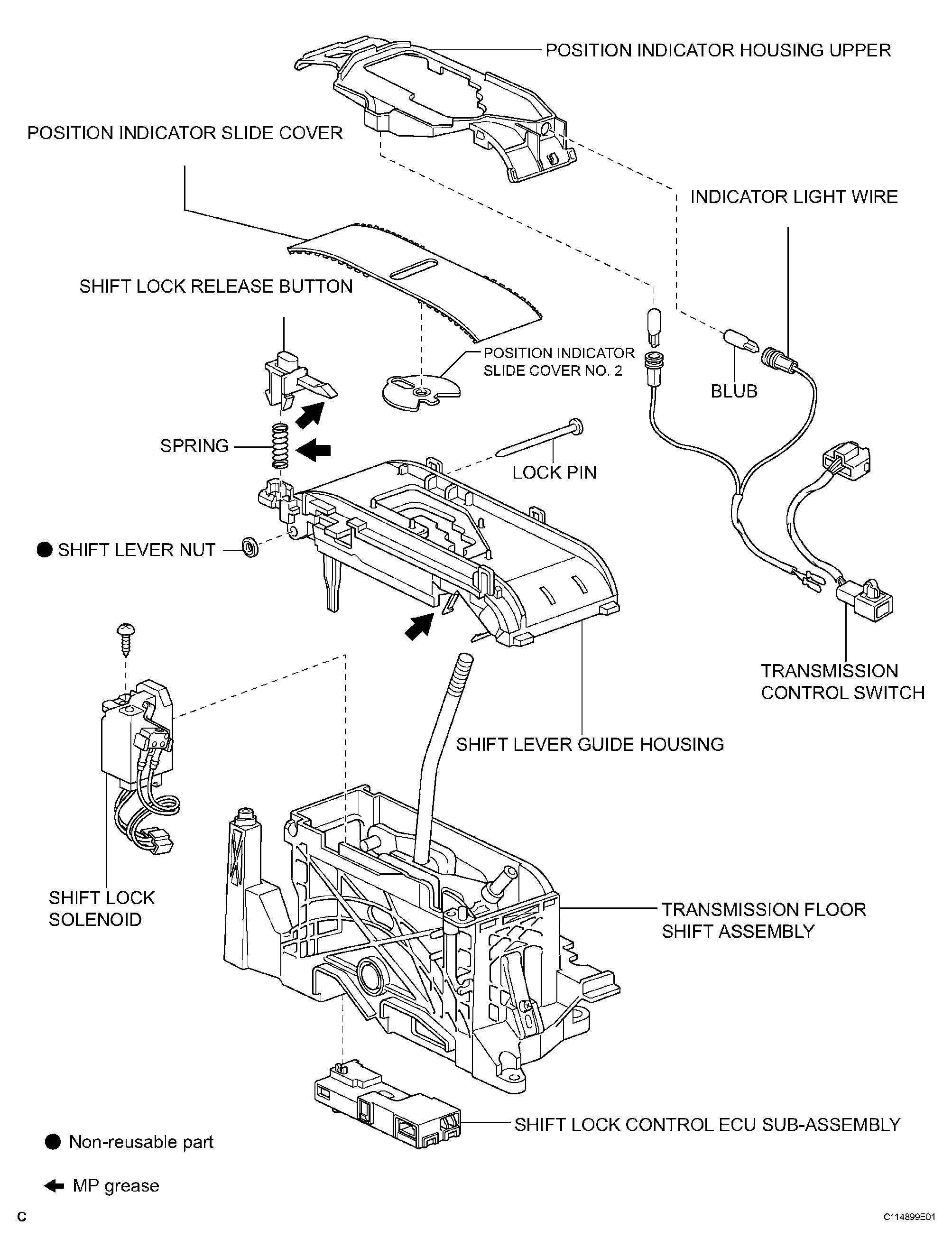

Fig 2: Exploded View Of Shift Lever Components (2 Of 2)
G04377531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
