Park / Neutral Position Switch: Components

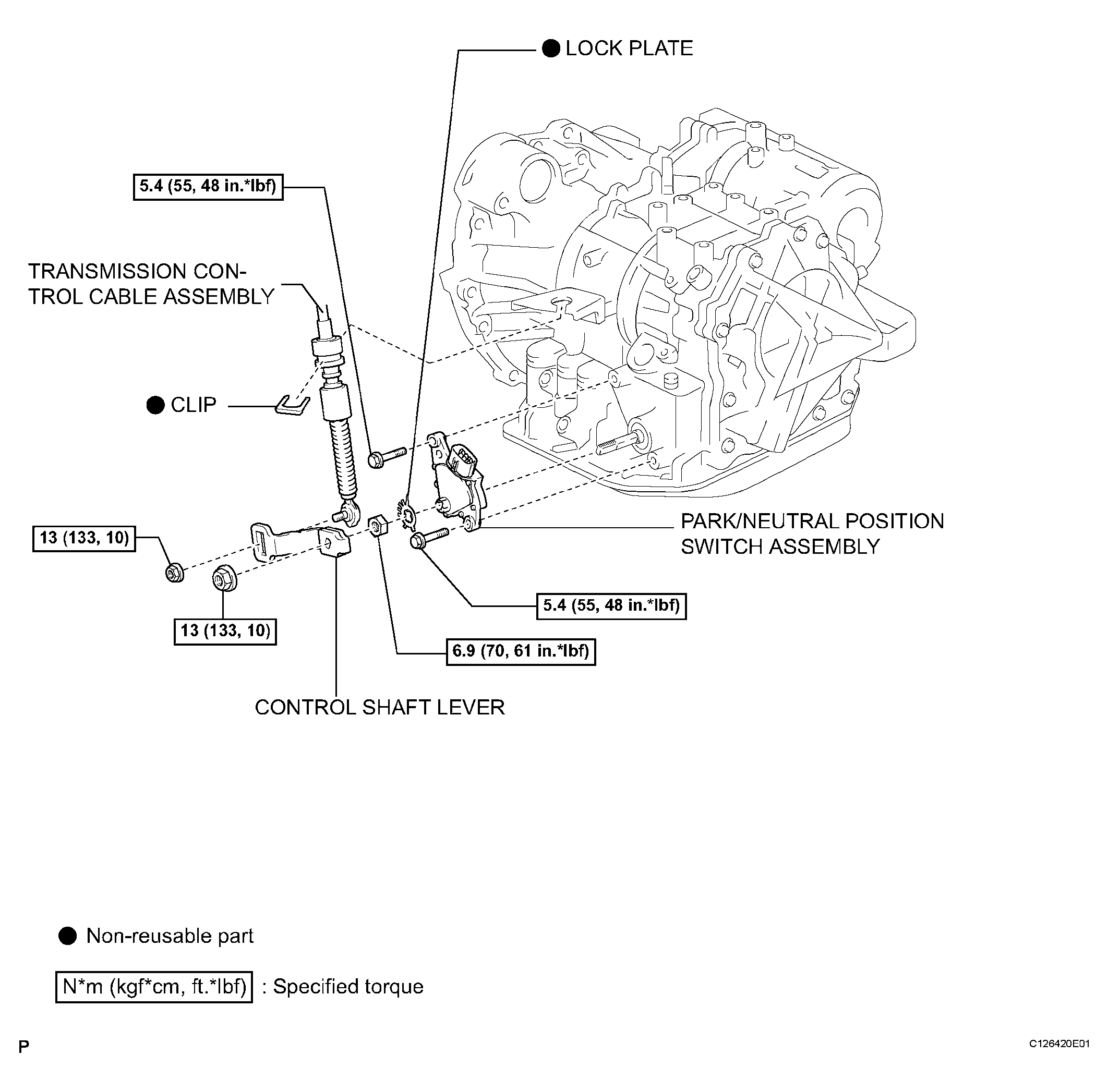

Fig 1: Exploded View Of Park / Neutral Position Switch

G04377416

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
