Home >> Toyota >> 2006 >> Avalon XLS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - U151E >> Differential Case >> Components

Differential Case: Components

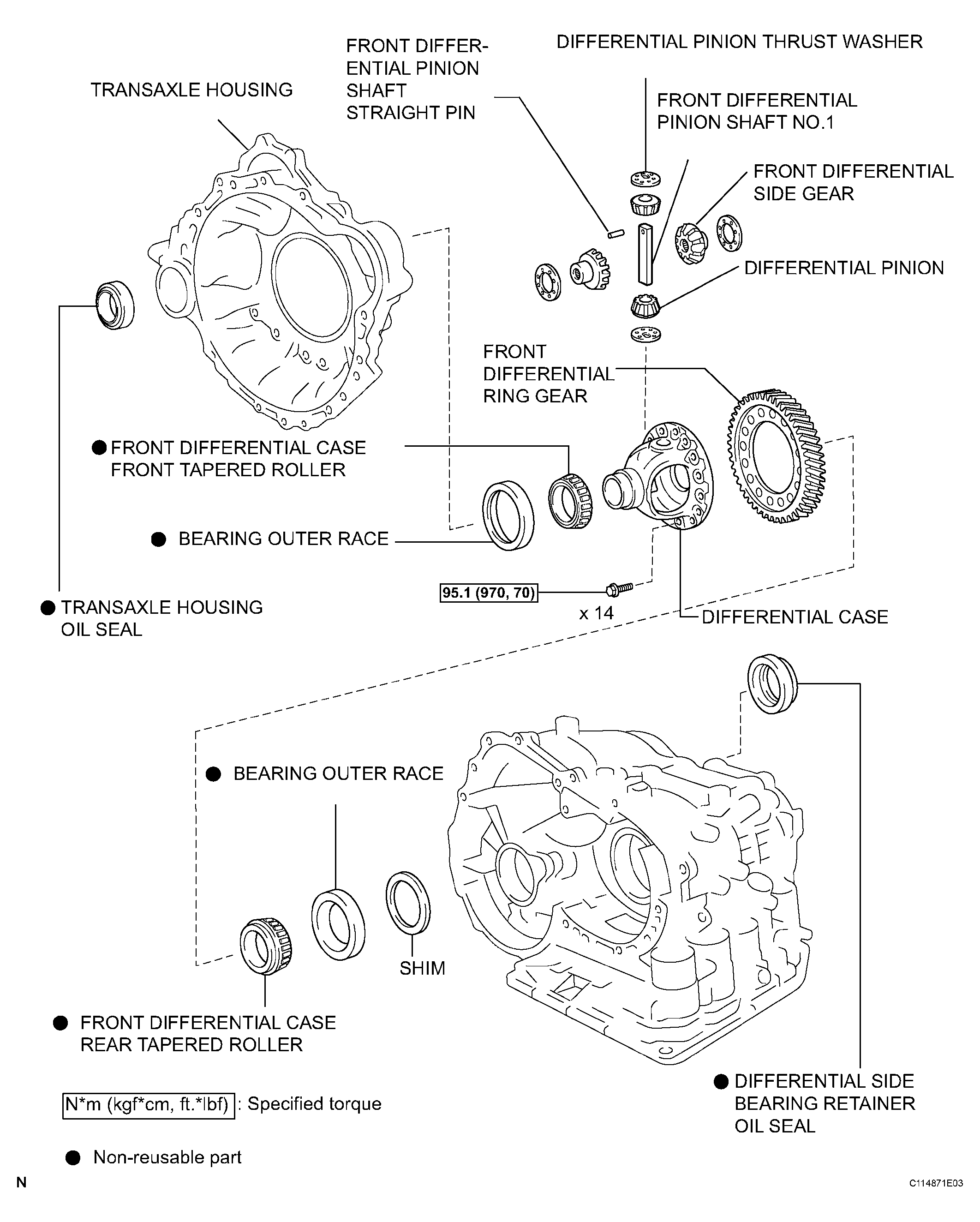

Fig 1: Exploded View Of Differential Case Components

G04377937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
