Transmission Control Switch Circuit: Wiring Diagram

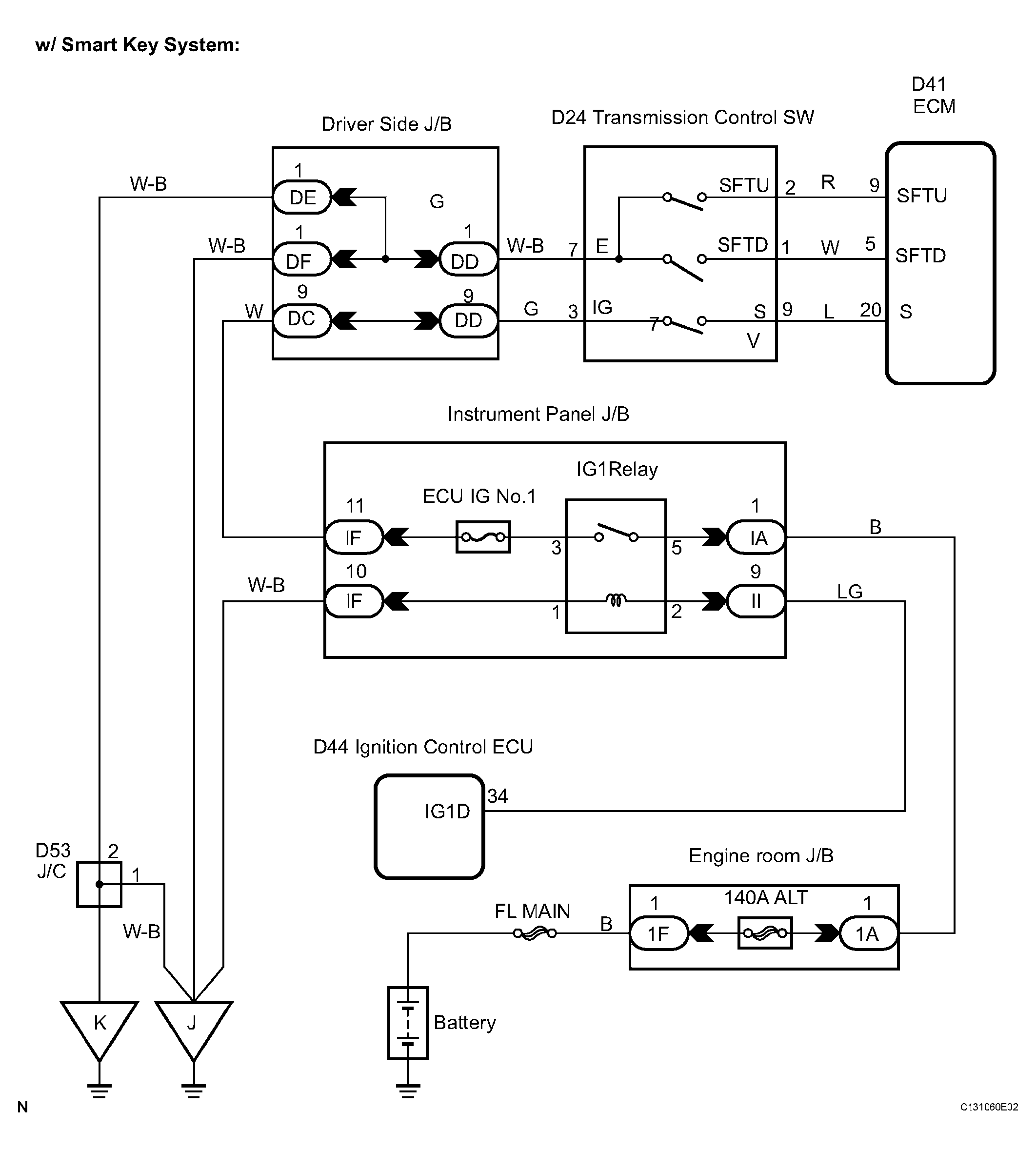

Fig 1: Transmission Control Switch Wiring Diagram - W/ Smart Key System
G04377401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

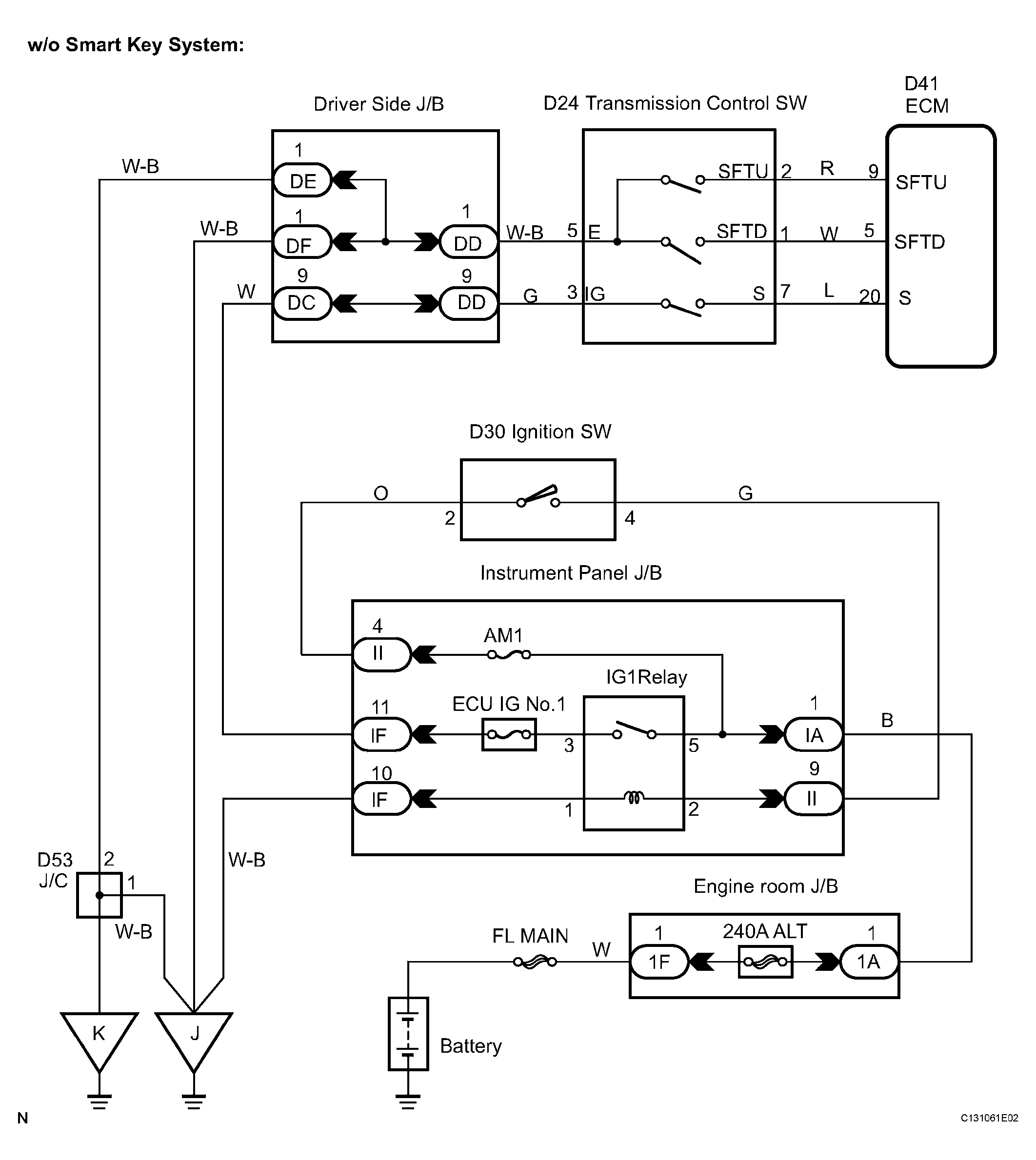

Fig 2: Transmission Control Switch Wiring Diagram - W/O Smart Key System
G04377402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
