Automatic Transaxle Assembly: Components

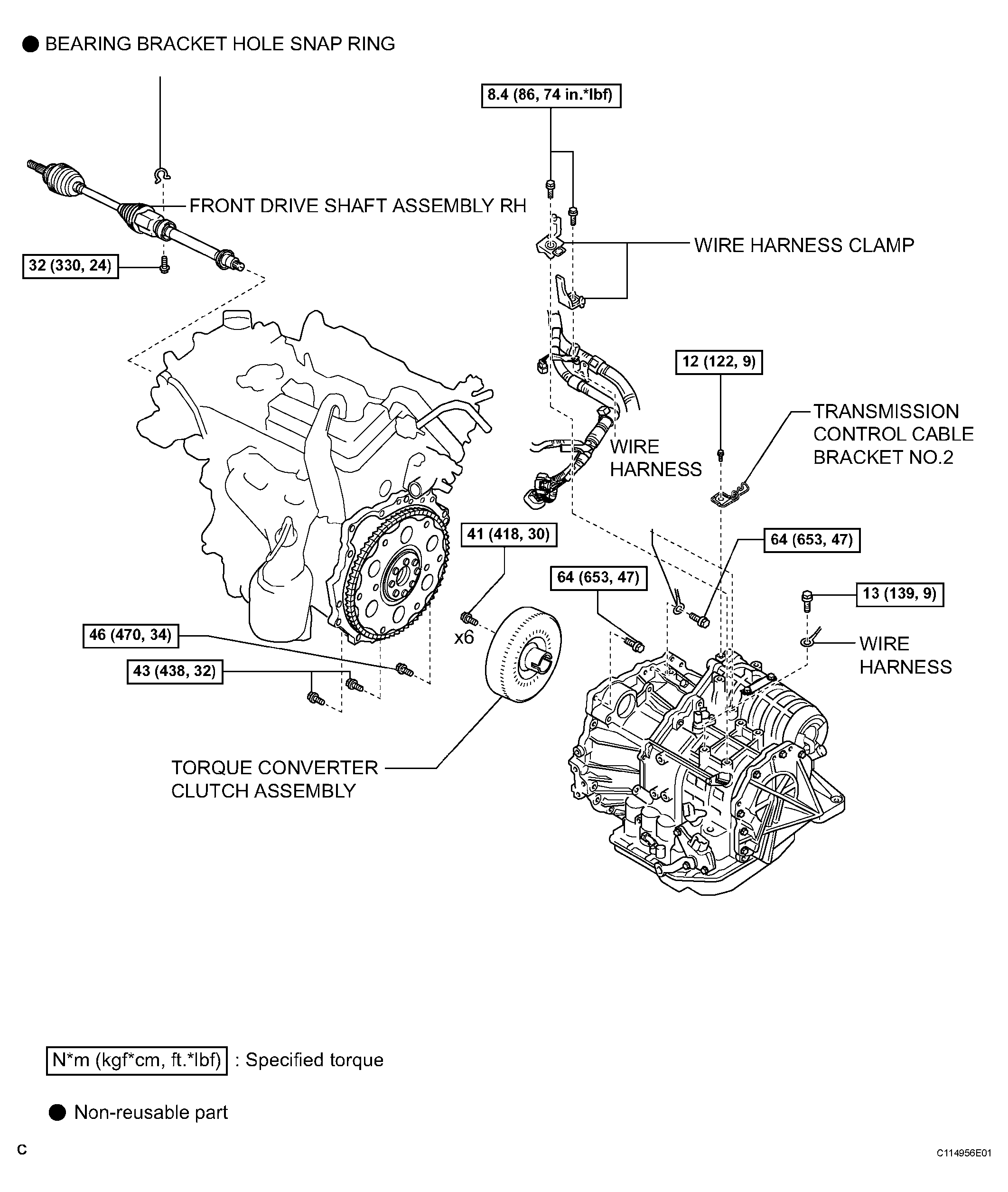

Fig 1: Exploded View Of Automatic Transaxle Assembly Components (1 Of 2)
G04377498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

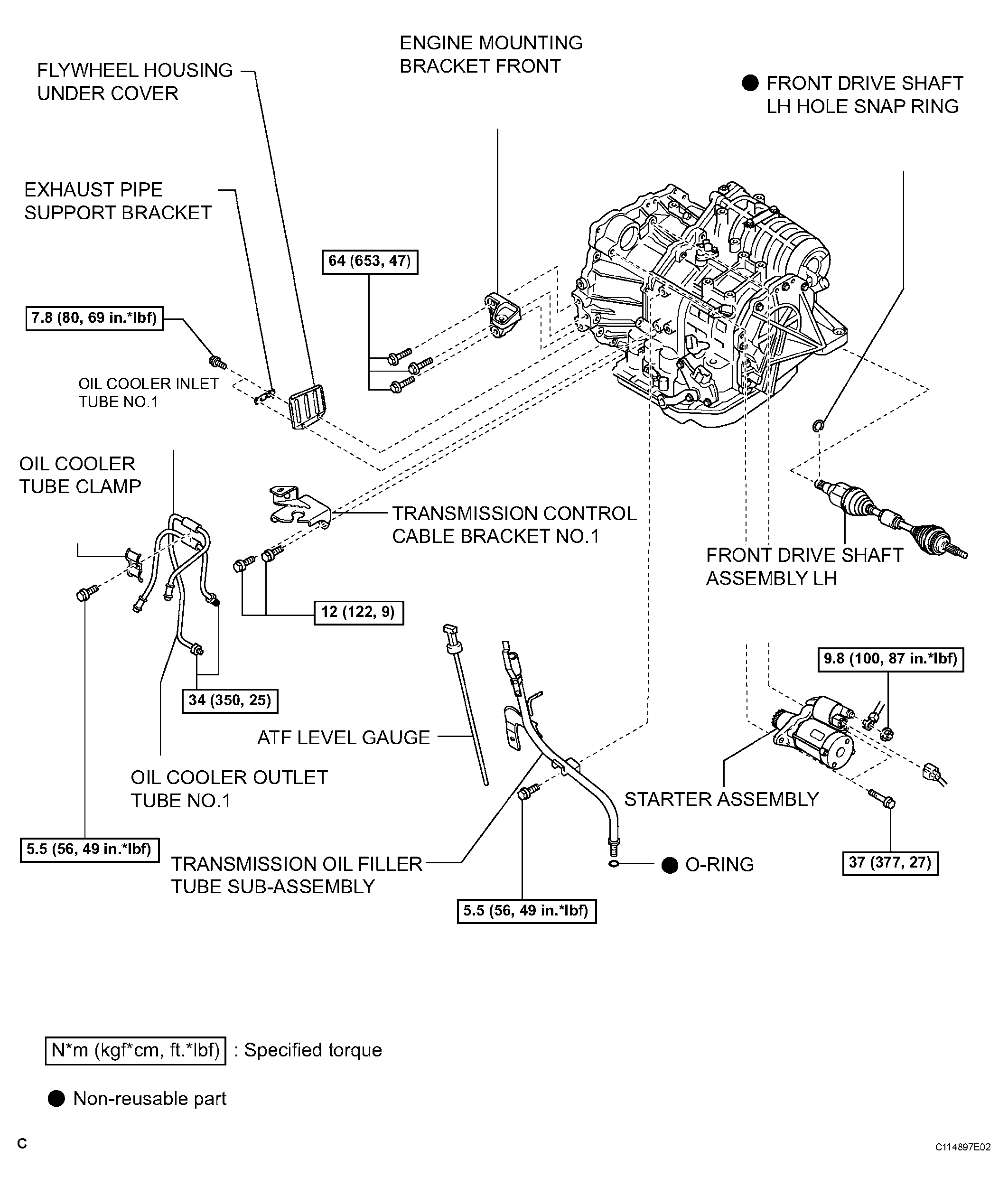

Fig 2: Exploded View Of Automatic Transaxle Assembly Components (2 Of 2)
G04377499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
