Rear Stabilizer Bar: Installation

1. Install the stabilizer bush to the outer side of the stopper ring on the stabilizer bar.
   Fig 1: Installing Stabilizer Bush To Outer Side Of Stopper Ring On Stabilizer Bar

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 stabilizer bushes and 4 stabilizer brackets with the 8 bolts.

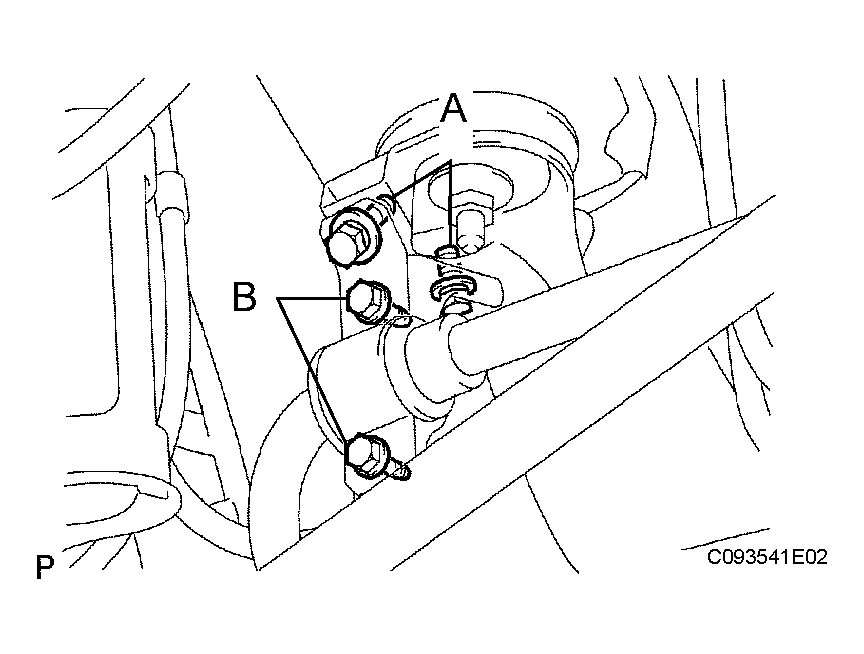

   Fig 2: Installing Stabilizer Bushes And Stabilizer Brackets With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 19 N*m (195 kgf*cm, 14 ft.*lbf)

   HINT:

   2 types of bolts (A, B) are used, so make sure the correct bolts are installed.

1. Install the stabilizer link with the 2 nuts.
   Fig 3: Installing Stabilizer Link With Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

   HINT:

   If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud.

HINT:

Install the RH side using the same procedure as for the LH side.

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

1. Inspect and adjust the rear wheel alignment (See REAR WHEEL ALIGNMENT ).
