Front Seat Inner Belt Assembly: Installation

INSTALL FRONT SEAT INNER BELT ASSEMBLY LH
1. Install the front seat inner belt assembly LH with the nut.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE: Do not overlap the anchor part of the rear belt and the protruding part of the rear seat adjuster.

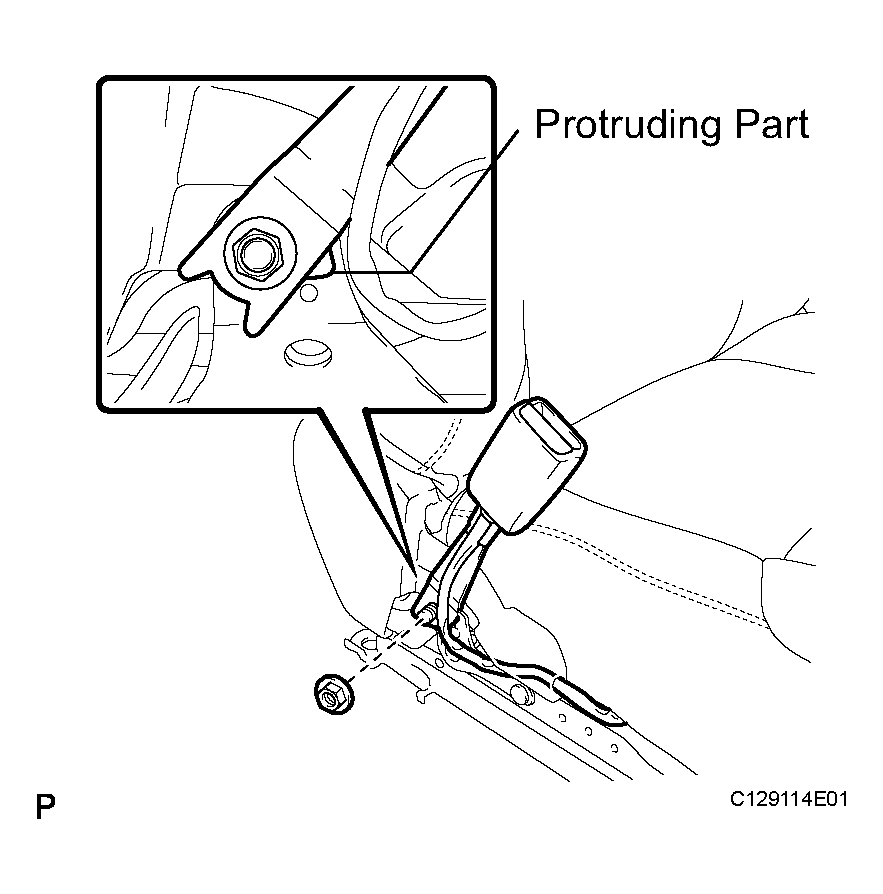

  Fig 1: Installing Front Seat Inner Belt Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Driver's seat:
  1. Engage the claw and the 4 clamps.
  2. Connect the connector.

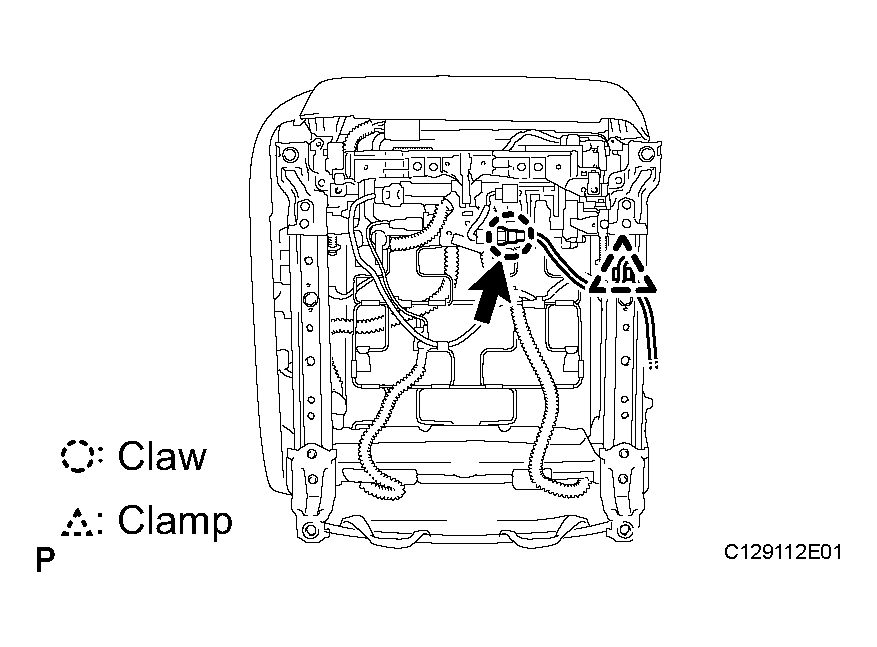

    Fig 2: Engaging Driver's Seat Claw And Clamps
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Passenger's manual seat:
  1. Engage the claw and the 3 clamps.

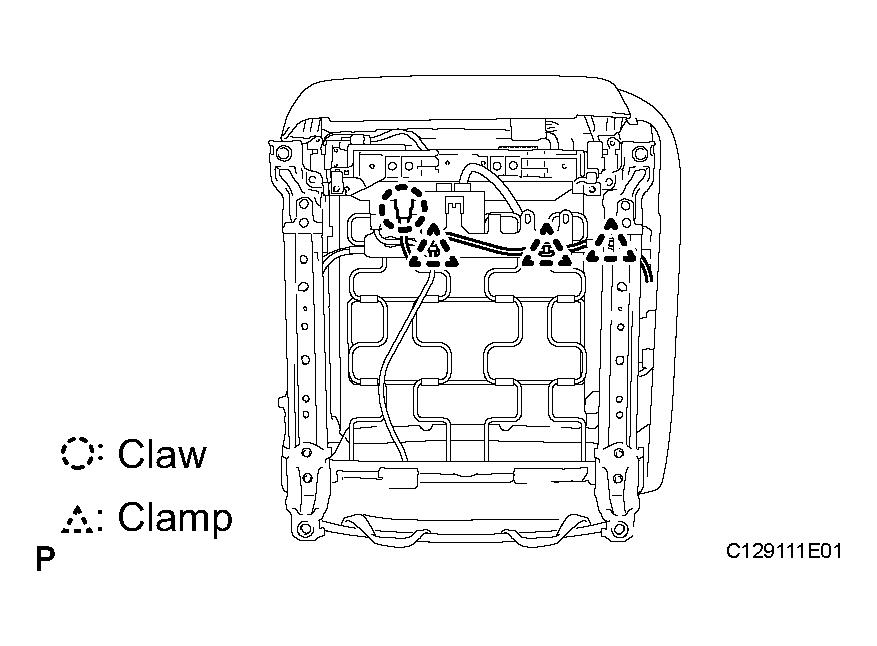

    Fig 3: Engaging Passenger's Manual Seat Claw And Clamps
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Passenger's power seat:
  1. Engage the claw and the clamp.
  2. Connect the connector.

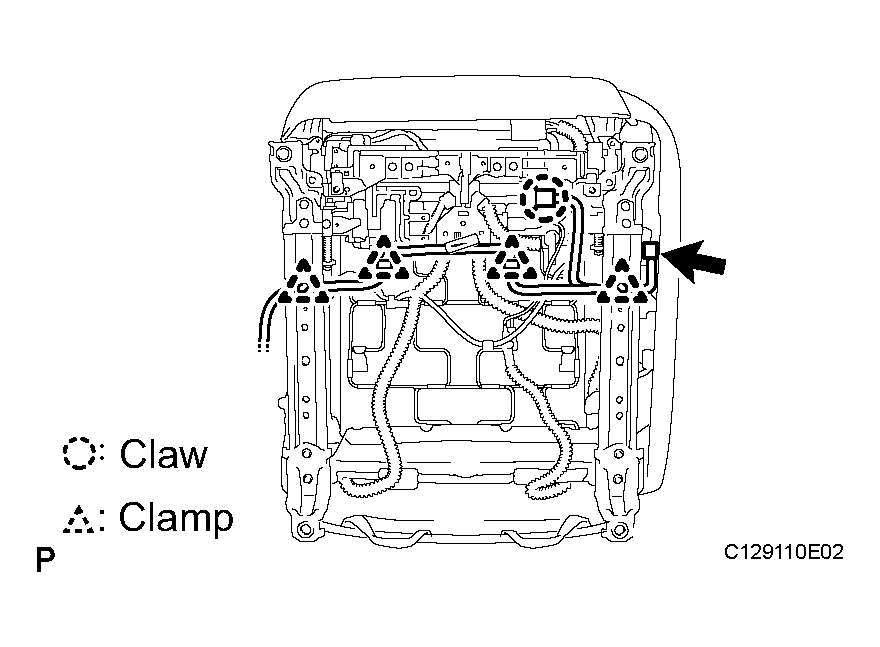

    Fig 4: Engaging Passenger's Power Seat Claw And Clamps
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT LH SEAT ASSEMBLY (for Power Seat) (See INSTALLATION )
INSTALL FRONT RH SEAT ASSEMBLY (for Manual Seat) (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Manual Seat)
PERFORM INITIALIZATION
HINT:

See INITIALIZATION
INSPECT FUNCTION OF POWER SEAT OPERATION (for Power Seat)
HINT:

See ON-VEHICLE INSPECTION
CHECK SEAT SLIDE ADJUSTER LOCKS (for Manual Seat) (See step 4 under INSTALLATION )
CHECK SEAT HEATER OPERATION (w/ Seat Heater System)
INITIALIZE FRONT PASSENGER OCCUPANT CLASSIFICATION SYSTEM (for Front Passenger Seat)
HINT:

See INITIALIZATION
INSPECT SRS WARNING LIGHT
HINT:

See step 4 under DIAGNOSIS SYSTEM
