Radio Receiver: Removal

HINT:

• COMPONENTS
• Installation is in the reverse order of removal.

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See  REMOVAL  )
2. REMOVE CONSOLE UPPER REAR PANEL SUBASSEMBLY (See  REMOVAL  )
3. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER (See  REMOVAL  )
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER (See  REMOVAL  )
5. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSEMBLY
   1. Remove the 4 bolts.
   2. Disconnect the connector.
   3. Disengage the 4 claws and remove the center cluster integration panel assembly.

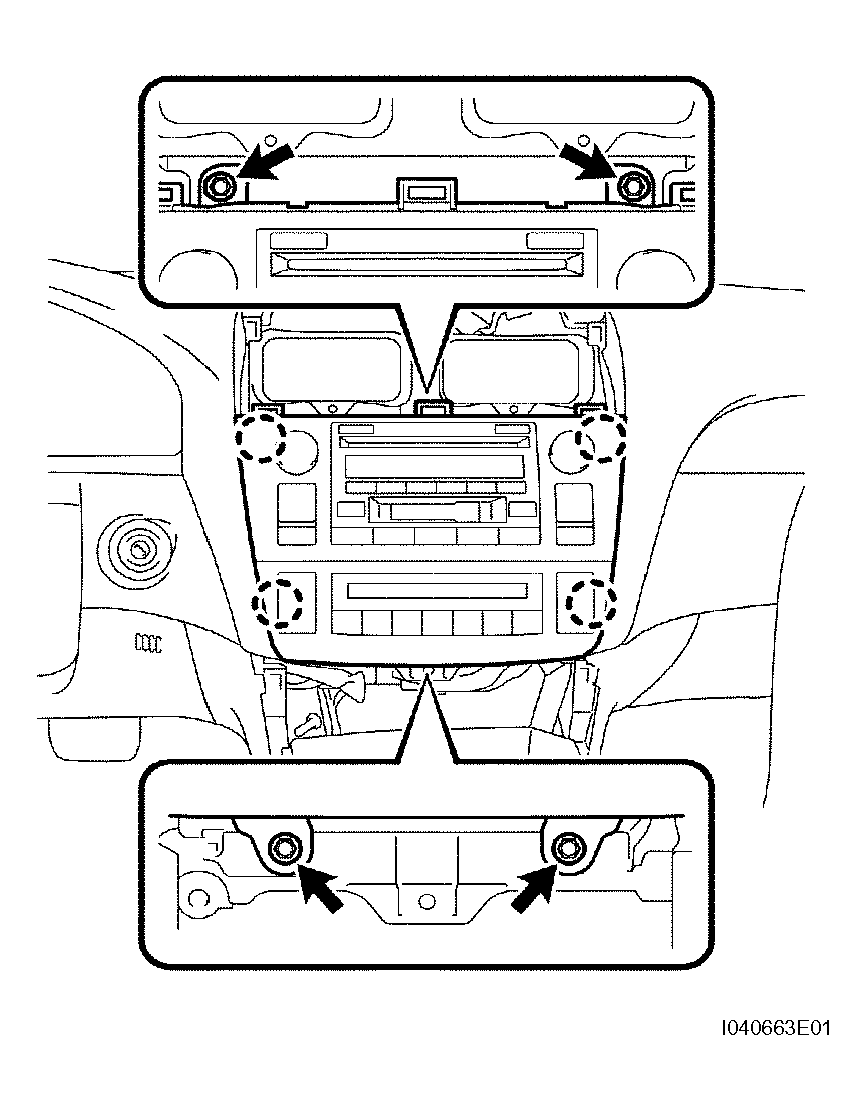

   Fig 1: Removing Center Cluster Integration Panel Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE RADIO BRACKET NO.1
   1. Remove the 6 screws and radio bracket No.1.
      Fig 2: Removing Screws And Radio Bracket No.1

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE RADIO BRACKET NO.2
   1. Remove the 5 screws and radio bracket No.2.
   Fig 3: Removing Screws And Radio Bracket No.2
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE RADIO RECEIVER ASSEMBLY
