Meter/Gauge System: Precaution

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL AND INSTALLATION OF BATTERY TERMINAL

Before performing electronic work, disconnect the battery negative (-) terminal cable in order to prevent it from shorting and burning out.
When disconnecting and reconnecting the battery cable, turn the ignition switch and lighting switch off and loosen the terminal nut completely. Perform operations without twisting or prying on the terminal.

When the battery terminal cable is removed, the memories of the clock, radio, DTCs, etc. are erased. So before removing it, check and make a note of them.

NOTE: When disconnecting the battery negative (-) terminal, initialize the following systems after the terminal is reconnected.

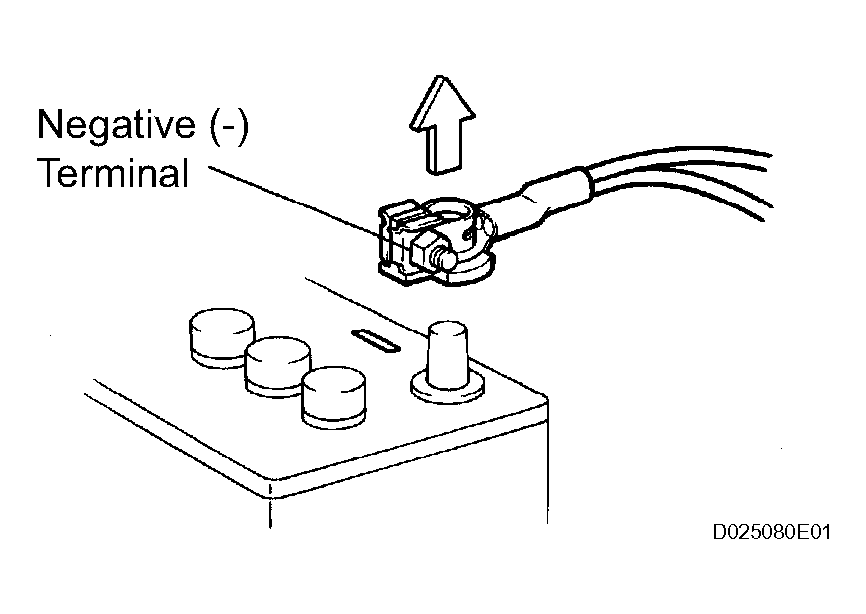

Fig 1: Disconnecting Battery Negative Terminal Cable

SYSTEM REFERENCE CHART

System Name	See procedure
Power Window Control System	INITIALIZATION
Sliding Roof System	INITIALIZATION
