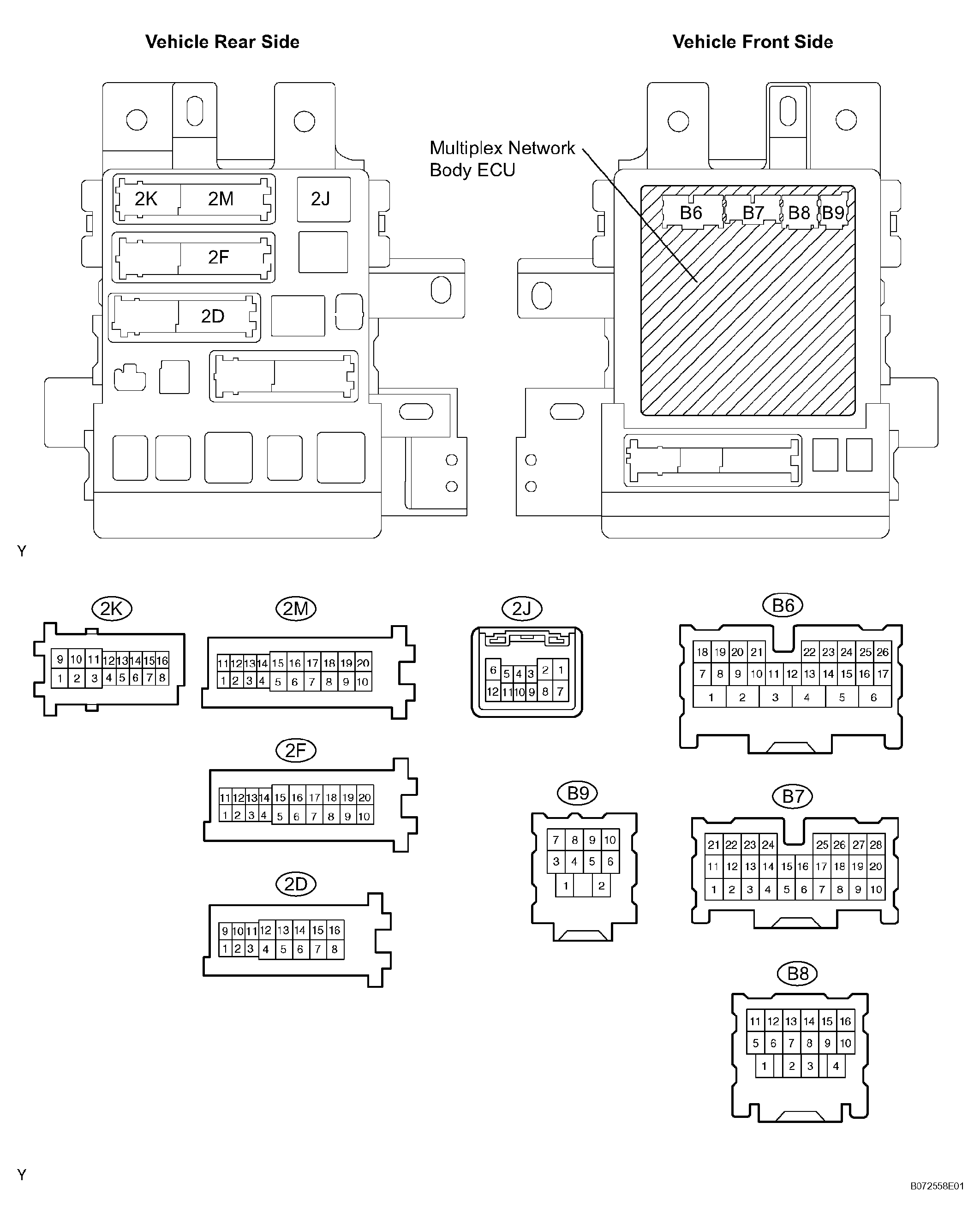

- CHECK INSTRUMENT PANEL J/B ASSEMBLY (MULTIPLEX NETWORK BODY ECU)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the 2D, 2F, 2J, 2K and 2M J/B connectors.
- Disconnect the B6, B7, B8 and B9 ECU connectors.
- Measure the voltage and resistance of the wire harness side connectors.MULTIPLEX NETWORK BODY ECU VOLTAGE AND RESISTANCE SPECIFIED CONDITIONS
Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition ALTB (2D-16) - Body ground L-W - Body ground +B (power system, generator system) power supply Always 10 to 14V BECU (2F-1) - Body ground W-R - Body ground +B (BECU) power supply Always 10 to 14V GND1 (2F-10) - Body ground W-B - Body ground Ground Always Below 1Ω GND2 (2M-9) - Body ground W-B(1) - Body ground Ground Always Below 1Ω GND2 (2M-9) - Body ground BR(2) - Body ground Ground Always Below 1Ω KSW (B6-21) - Body ground L - Body ground Key unlock warning switch input 1: No key in ignition key cylinder --> 2: Key inserted 1: 10 kΩ or higher --> 2: Below 1Ω DBKL (B8-9) - Body ground BR-Y(1) - Body ground Driver side seat belt buckle switch input Driver side seat belt 1: Not fastened --> 1: 10 kΩ or higher --> 2: Key inserted 2: Below 1Ω DBKL (B8-9) - Body ground G-Y(2) - Body ground Driver side seat belt buckle switch input Driver side seat belt 1: Not fastened --> 1: 10 kΩ or higher --> 2: Key inserted 2: Below 1Ω HCTY(3) (B9-10) - Body ground B - Body ground Engine hood courtesy switch input Engine hood 1: Closed --> 1: 10 kΩ or higher --> 2: Open 2: Below 1Ω DCTY (B8-14) - Body ground R-G - Body ground Driver side courtesy switch input Driver side door 1: Closed --> 1: 10 kΩ or higher --> 2: Open 2: Below 1Ω PCTY (B7-23) - Body ground R-G - Body ground Passenger side courtesy switch input Passenger side door 1: Closed --> 1: 10 kΩ or higher --> 2: Open 2: Below 1Ω LGCY (B7-25) - Body ground G-R(1) - Body ground Luggage compartment door courtesy switch input Luggage compartment door 1: Closed --> 1: 10 kΩ or higher --> 2: Open 2: Below 1Ω LGCY (B7-25) - Body ground R(2) - Body ground Luggage compartment door courtesy switch input Luggage compartment door 1: Closed --> 1: 10 kΩ or higher --> 2: Open 2: Below 1Ω L1 (2K-15) - Body ground
L1 (2J-3) - Body groundR-Y(1) - Body ground Door control switch (master switch and passenger side switch) lock input Door control switch (master switch or passenger side switch) 1: OFF --> 1: 10 kΩ or higher --> 2: LOCK 2: Below 1Ω L1 (2K-15) - Body ground
L1 (2J-3) - Body groundLG(2) - Body ground Door control switch (master switch and passenger side switch) lock input Door control switch (master switch or passenger side switch) 1: OFF --> 1: 10 kΩ or higher --> 2: LOCK 2: Below 1Ω UL1 (2K-12) - Body ground
UL1 (2J-4) - Body groundG-R - Body ground Door control switch (master switch and passenger side switch) unlock input Door control switch (master switch or passenger side switch) 1: OFF --> 1: 10 kΩ or higher --> 2: UNLOCK 2: Below 1Ω LSWD (B8-7) - Body ground BR-R(1) - Body ground Driver side door lock position switch input Driver side door 1: Unlocked --> 1: 10 kΩ or higher --> 2: Locked 2: Below 1Ω LSWD (B8-7) - Body ground LG-R(2) - Body ground Driver side door lock position switch input Driver side door 1: Unlocked --> 1: 10 kΩ or higher --> 2: Locked 2: Below 1Ω LSWP (B7-27) - Body ground Y - Body ground Passenger side door lock position switch input Passenger side door 1: Unlocked --> 1: 10 kΩ or higher --> 2: Locked 2: Below 1Ω L2 (2K-16) - Body ground LG(1) - Body ground Driver side door key-linked door lock input Driver side door key cylinder 1: OFF --> 1: 10 kΩ or higher --> 2: LOCK 2: Below 1Ω L2 (2K-16) - Body ground L-Y(2) - Body ground Driver side door key-linked door lock input Driver side door key cylinder 1: OFF --> 1: 10 kΩ or higher --> 2: LOCK 2: Below 1Ω UL3 (B8-8) - Body ground L - Body ground Driver side door key-linked door unlock input Driver side door key cylinder 1: OFF --> 1: 10 kΩ or higher --> 2: UNLOCK 2: Below 1Ω (1) Coupe (2) Convertible (3) Coupe, convertible w/VSC If the result is not as specified, there may be a malfunction on the wire harness side.
- Reconnect the 2D, 2F, 2J, 2K and 2M J/B connectors.
- Reconnect the B6, B7, B8 and B9 ECU connectors.
- Measure the voltage of the connectors.
Voltage:
CONNECTOR TERMINALS VOLTAGE SPECIFIED CONDITIONSSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition ACT+ (2K-2) - Body ground
ACT+ (2F-5)(1) - Body groundL-Y(1) - Body ground Door lock motor LOCK drive output (driver and passenger side doors) Door control switch (master switch or passenger side switch) or driver side door key cylinder 1: OFF --> 1: Below 1V --> 2: LOCK --> 2: 10 to 14V --> 3: OFF 3: Below 1V ACT+ (2K-2) - Body ground
ACT+ (2J-1)(2) - Body groundL-R(2) - Body ground Door lock motor LOCK drive output (driver and passenger side doors) Door control switch (master switch or passenger side switch) or driver side door key cylinder 1: OFF --> 1: Below 1V --> 2: LOCK --> 2: 10 to 14V --> 3: OFF 3: Below 1V ACTD (B8-4) - Body ground L-B - Body ground Door lock motor UNLOCK drive output (driver side door) Door control switch (master switch or passenger side switch) or driver side door key cylinder 1: OFF --> 1: Below 1V --> 2: LOCK --> 2: 10 to 14V --> 3: OFF 3: Below 1V ACT- (2J-2) - Body ground L-B - Body ground Door lock motor UNLOCK drive output (passenger side door) Door control switch (master switch or passenger side switch) or driver side door key cylinder 1: OFF --> 1: Below 1V --> 2: LOCK --> 2: 10 to 14V --> 3: OFF 3: Below 1V TR+ (B6-1) - Body ground W-L - Body ground Luggage compartment door lock motor OPEN drive output Transmitter switch (luggage compartment door) 1: OFF --> 1: Below 1V --> 2: ON --> 2: 10 to 14V --> 3: OFF 3: Below 1V (1) Coupe (2) Convertible
If the result is not as specified, the ECU may have a malfunction.
