Front Axle Hub: Components

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

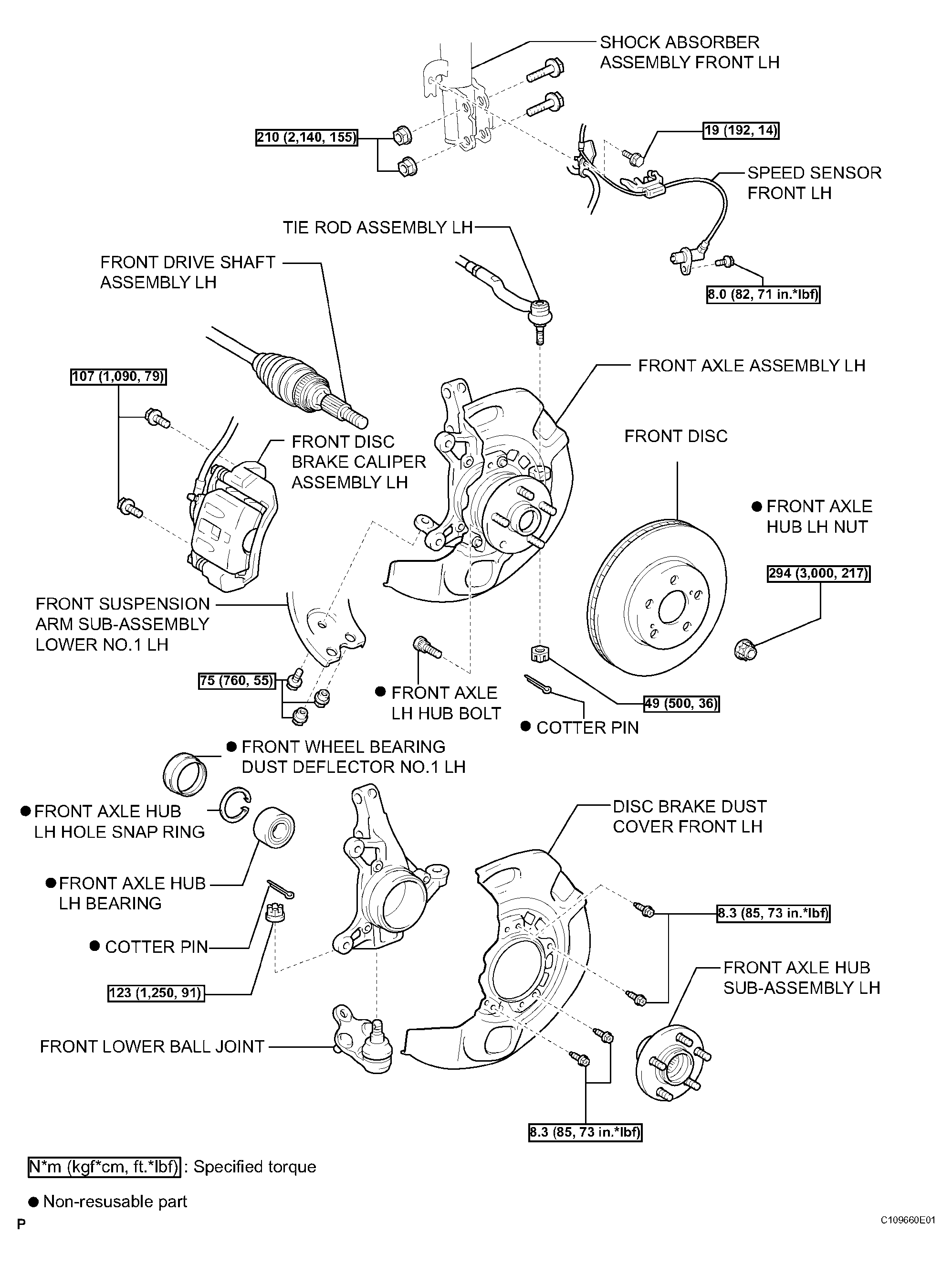

Fig 1: Exploded View Of Front Axle Hub Components With Torque Specifications
G04385311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
