DTC P0500 Vehicle Speed Sensor "A": Wiring Diagram

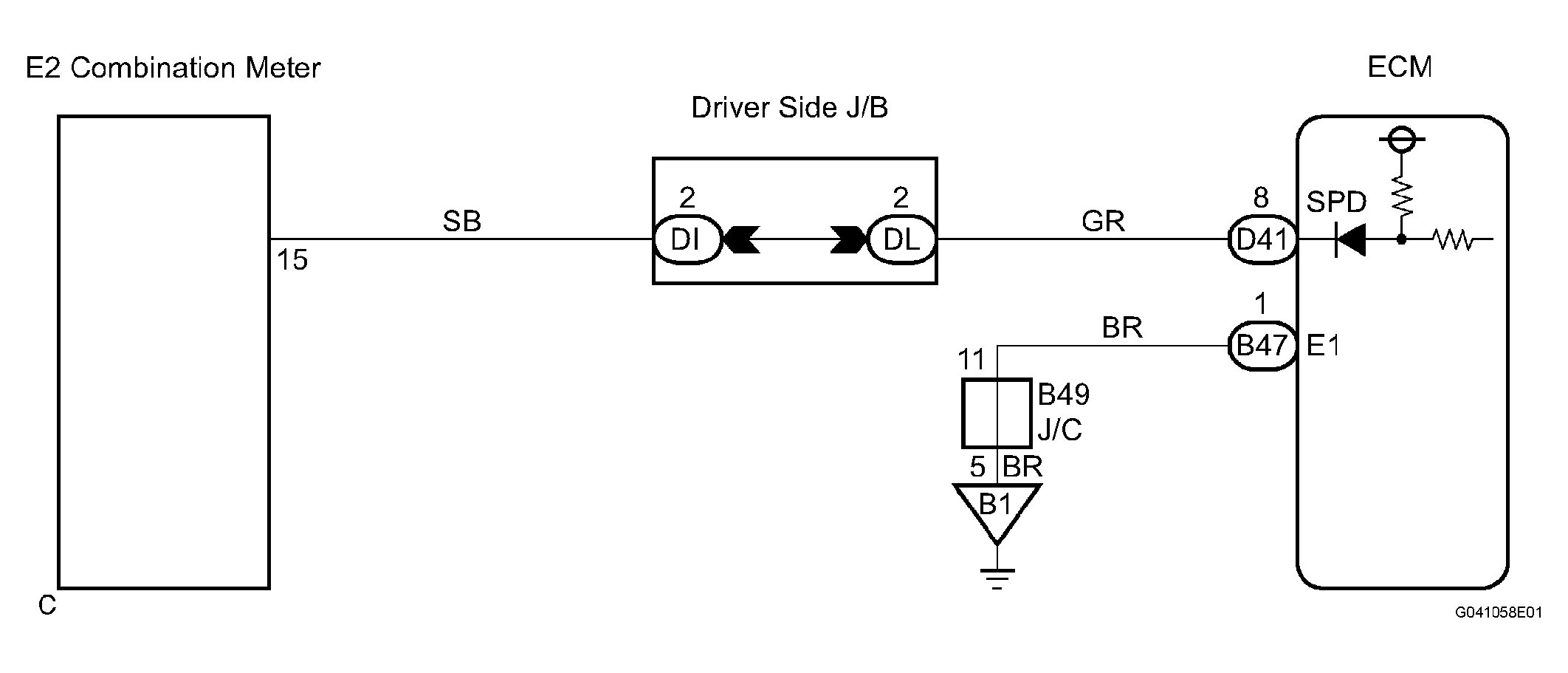

Fig 1: Vehicle Speed Sensor Wiring Diagram

G04375057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
