Oil Pump: Reassembly

INSTALL OIL PUMP COVER

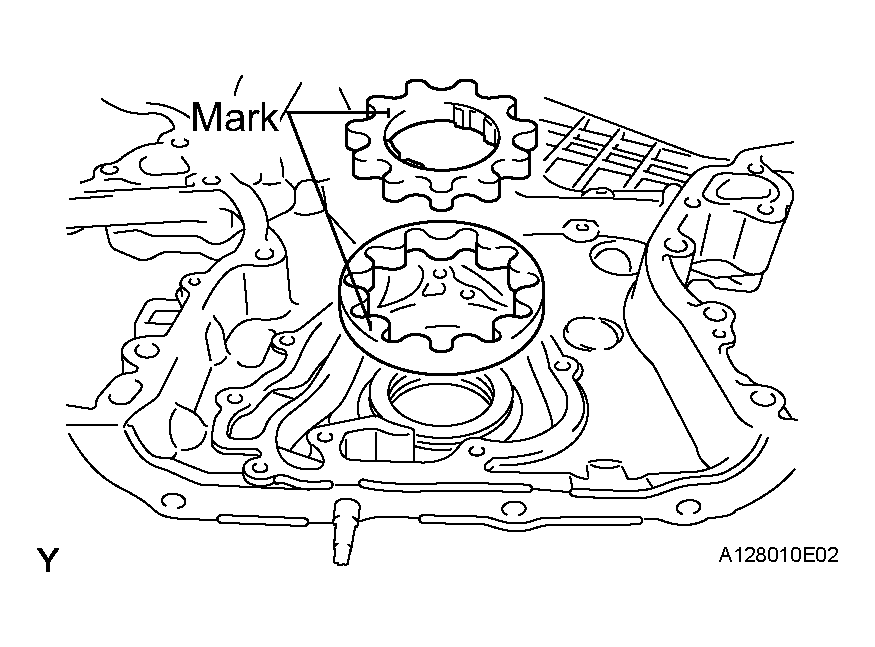

1. Coat the drive and driven rotors with engine oil and place them into the timing chain cover with the marks facing outward (oil pump cover side). Check that the rotors revolve smoothly.

  Fig 1: Installing Oil Pump Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

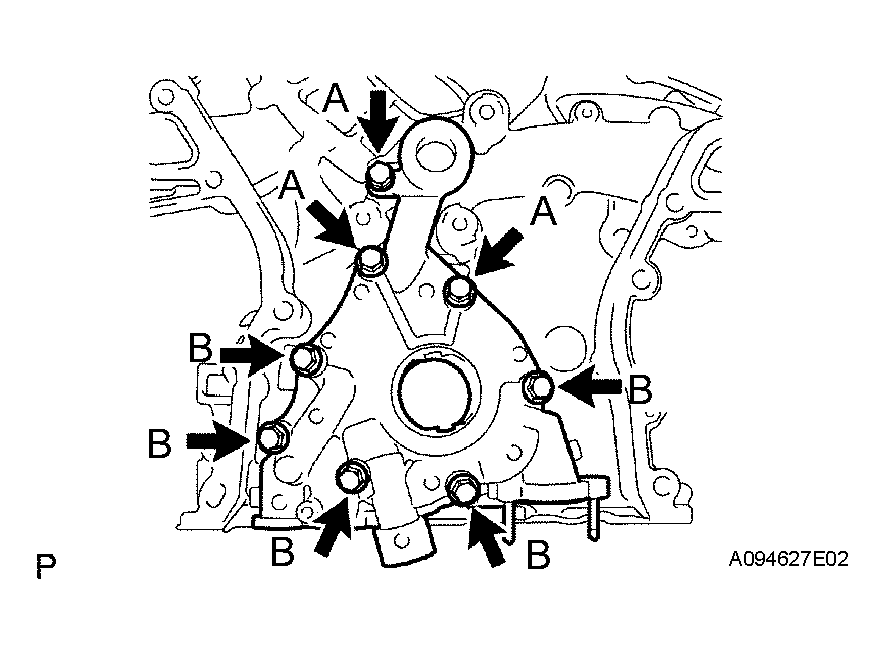

2. Install the oil pump cover with the 8 bolts.
  Torque: 9.1 N*m (93 kgf*cm, 81 in.*lbf)

  HINT:

  Bolt length:
  - 22 mm (0.87 in.) for bolt A
  - 40 mm (1.58 in.) for bolt B

    Fig 2: Installing Oil Pump Cover With Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL PUMP RELIEF VALVE
1. Coat the oil pump relief valve with engine oil.
2. Insert the relief valve and relief valve spring into the oil pump cover hole.
3. Using a 27 mm socket wrench, install the plug.
  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
