Oil Pump: Disassembly

  1. REMOVE OIL PUMP RELIEF VALVE
    1. Using a 27 mm socket wrench, remove the relief valve plug.
    2. Remove the valve spring and oil pump relief valve.
      Fig 1: Removing Oil Pump Relief Valve
      G04377133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE OIL PUMP COVER
    1. Remove the 8 bolts, oil pump cover, drive rotor and driven rotor.

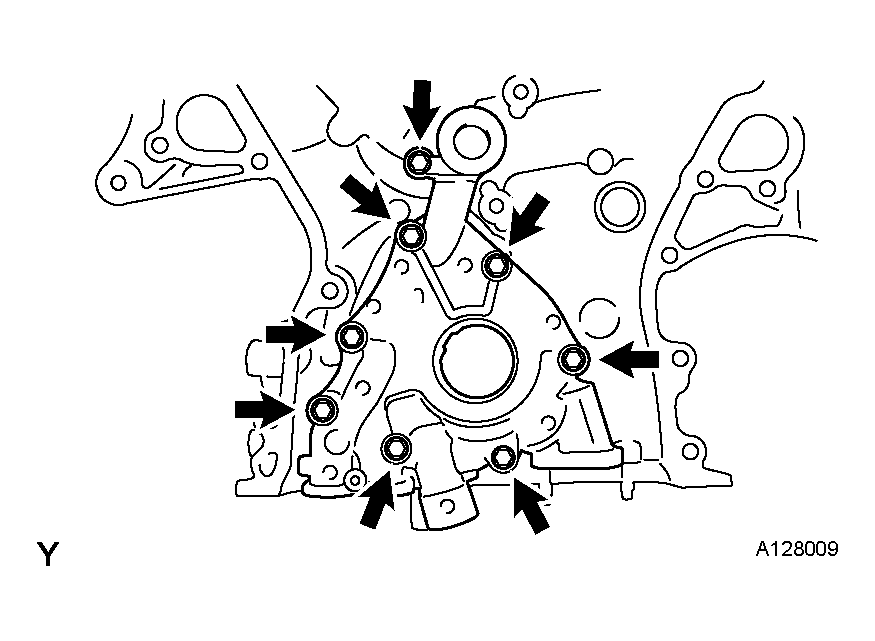

      Fig 2: Removing Bolts, Oil Pump Cover
      G04377134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
