Water Pump: Components

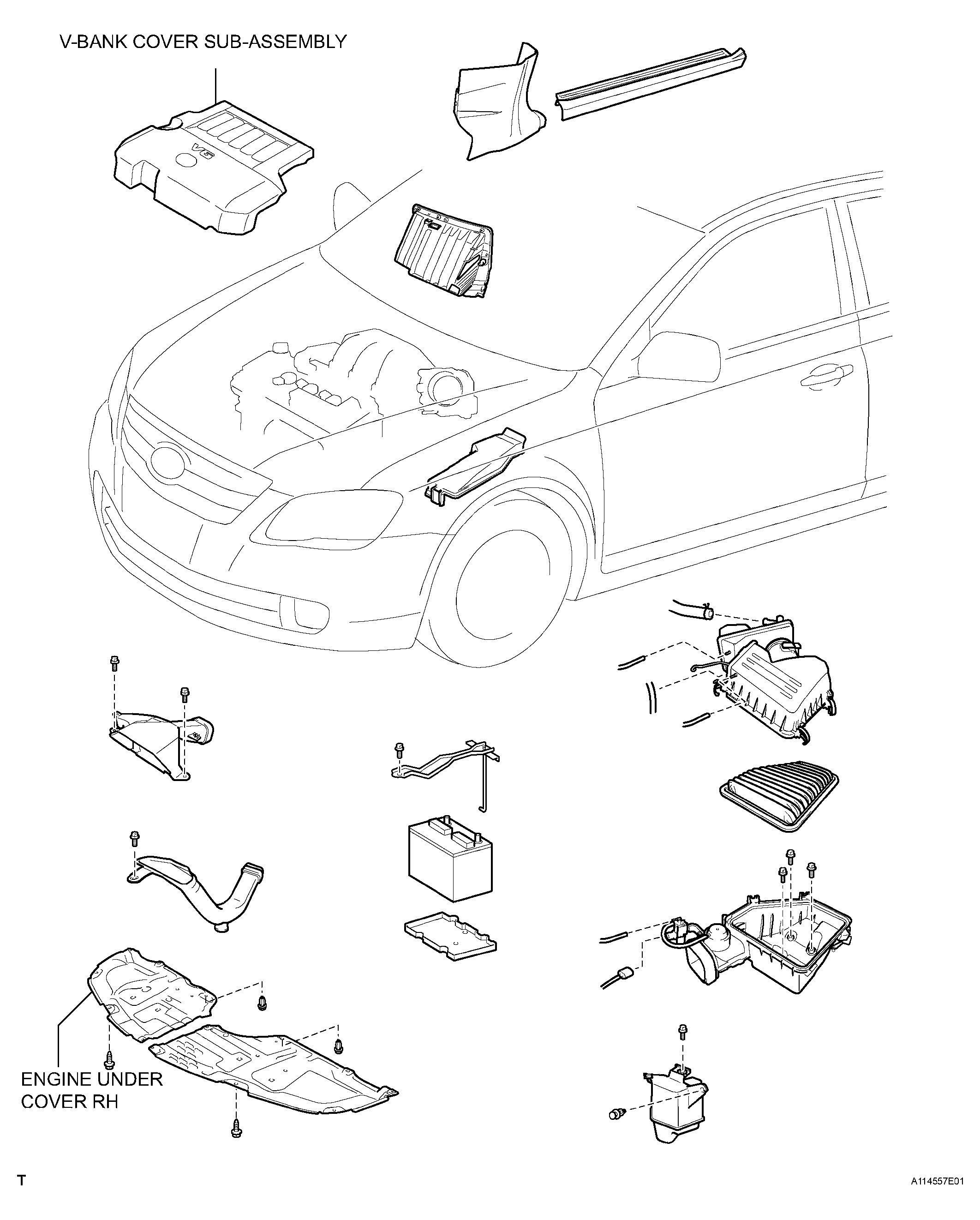

Fig 1: Identifying Water Pump Components (1 Of 7)
G04375273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

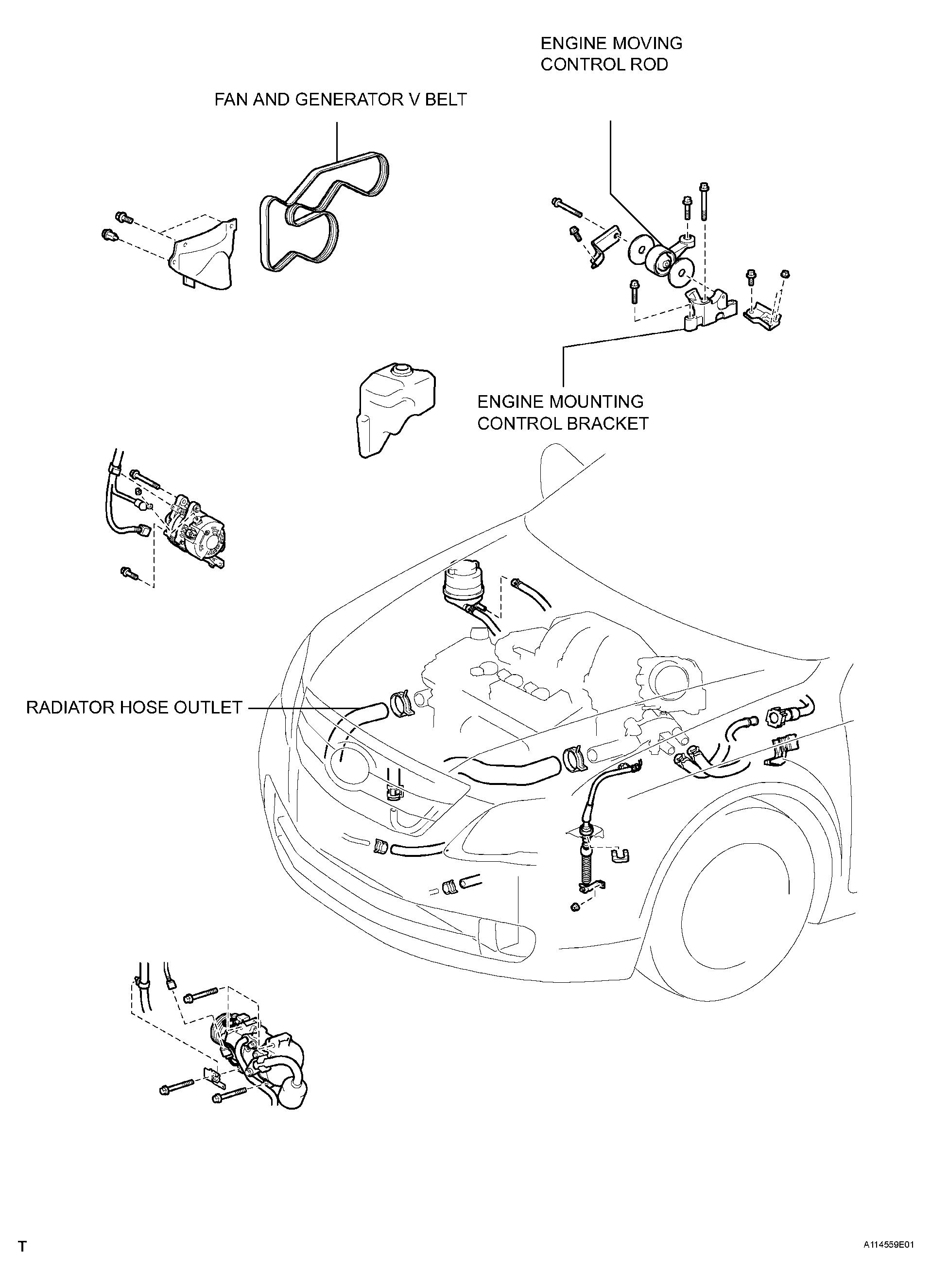

Fig 2: Identifying Water Pump Components (2 Of 7)
G04375274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

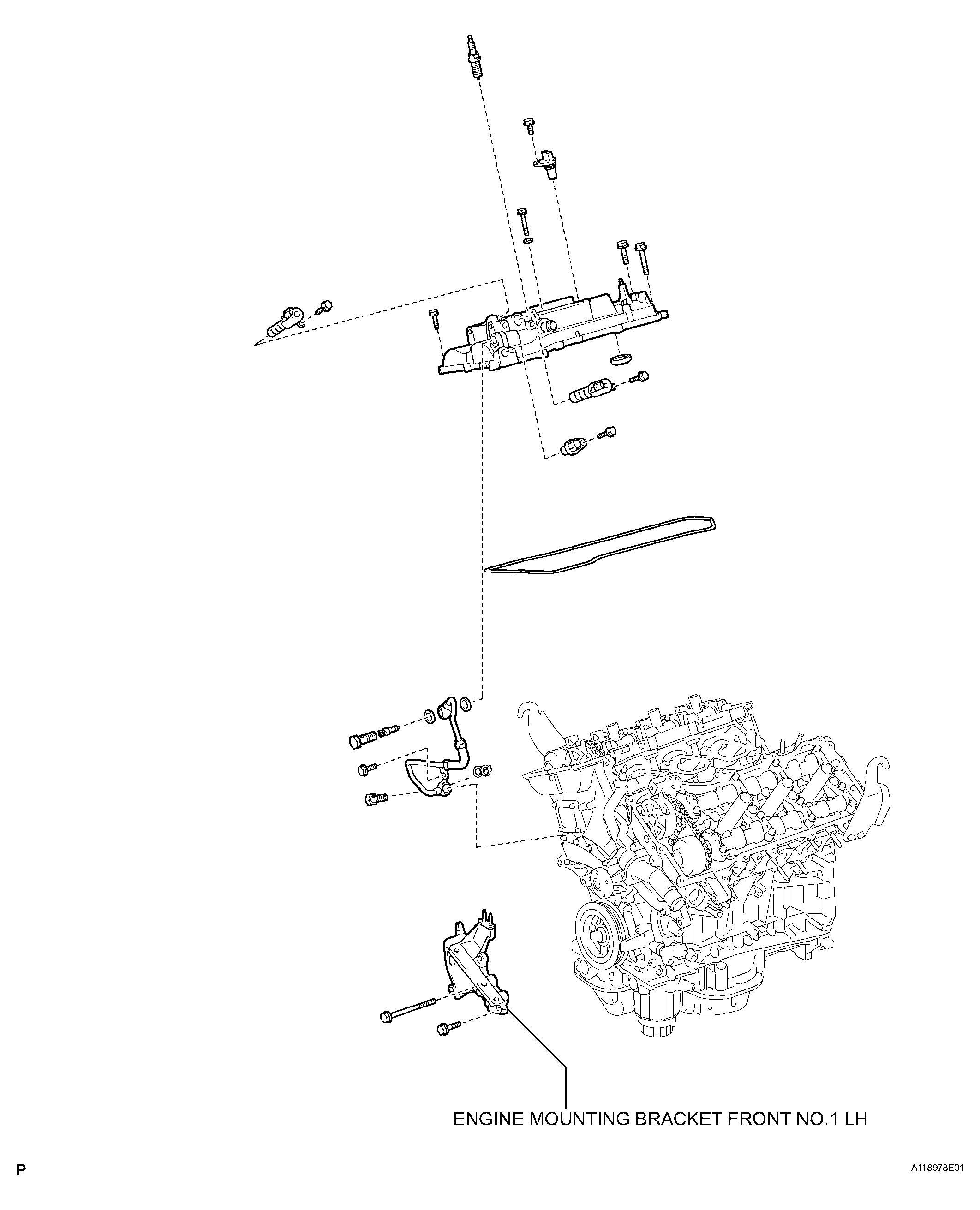

Fig 3: Identifying Water Pump Components (3 Of 7)
G04375275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

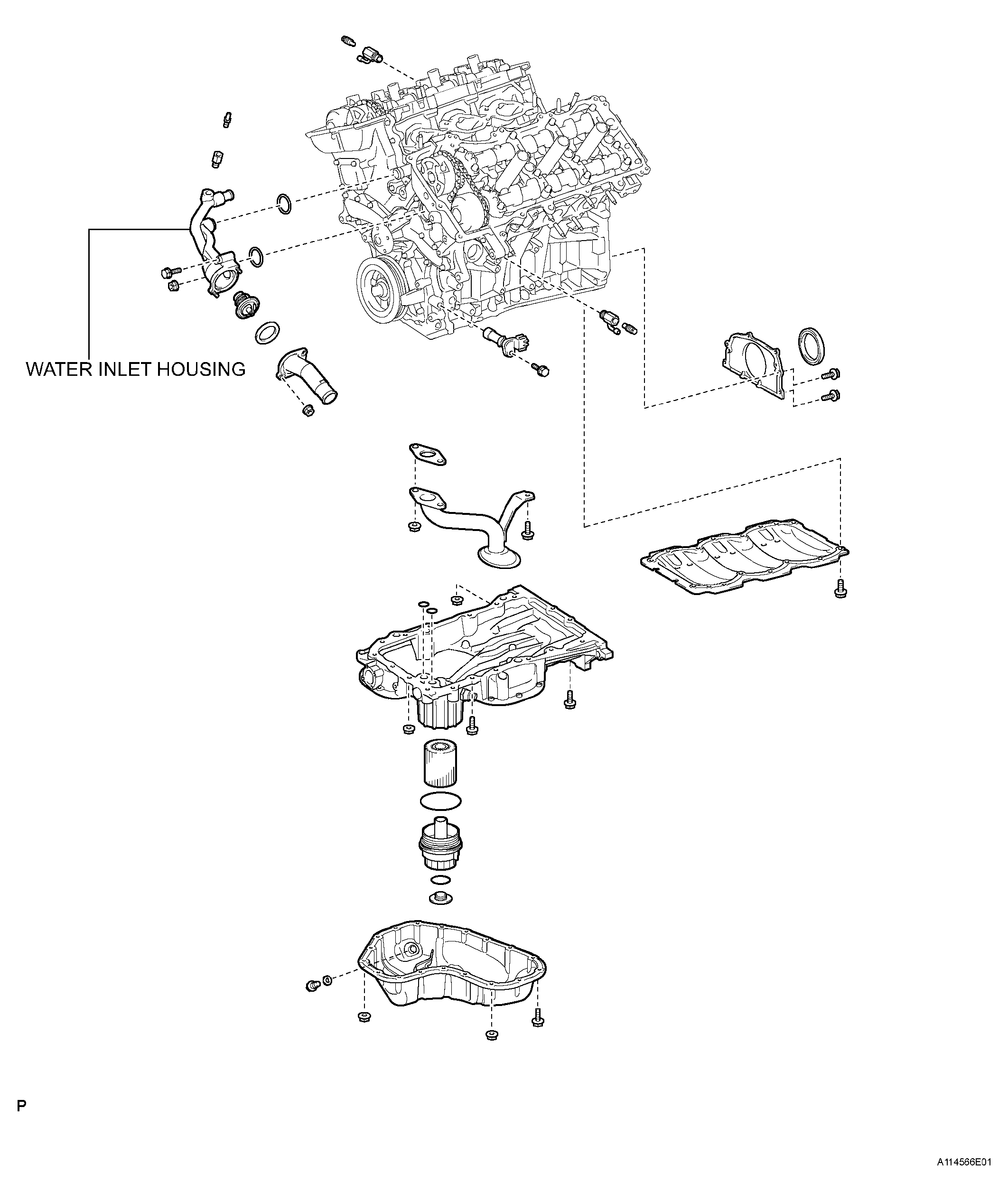

Fig 4: Identifying Water Pump Components (4 Of 7)
G04375276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

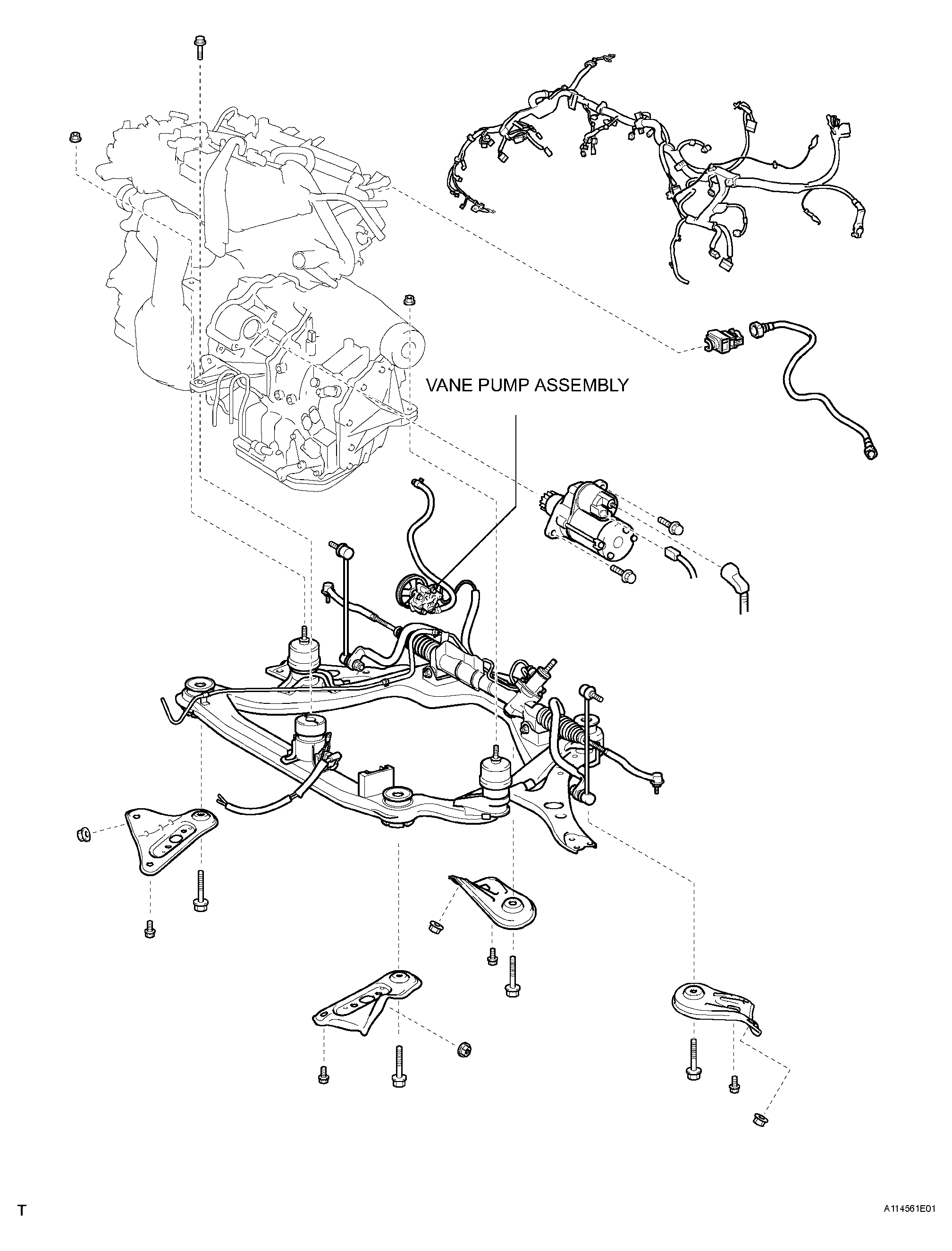

Fig 5: Identifying Water Pump Components (5 Of 7)
G04375277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

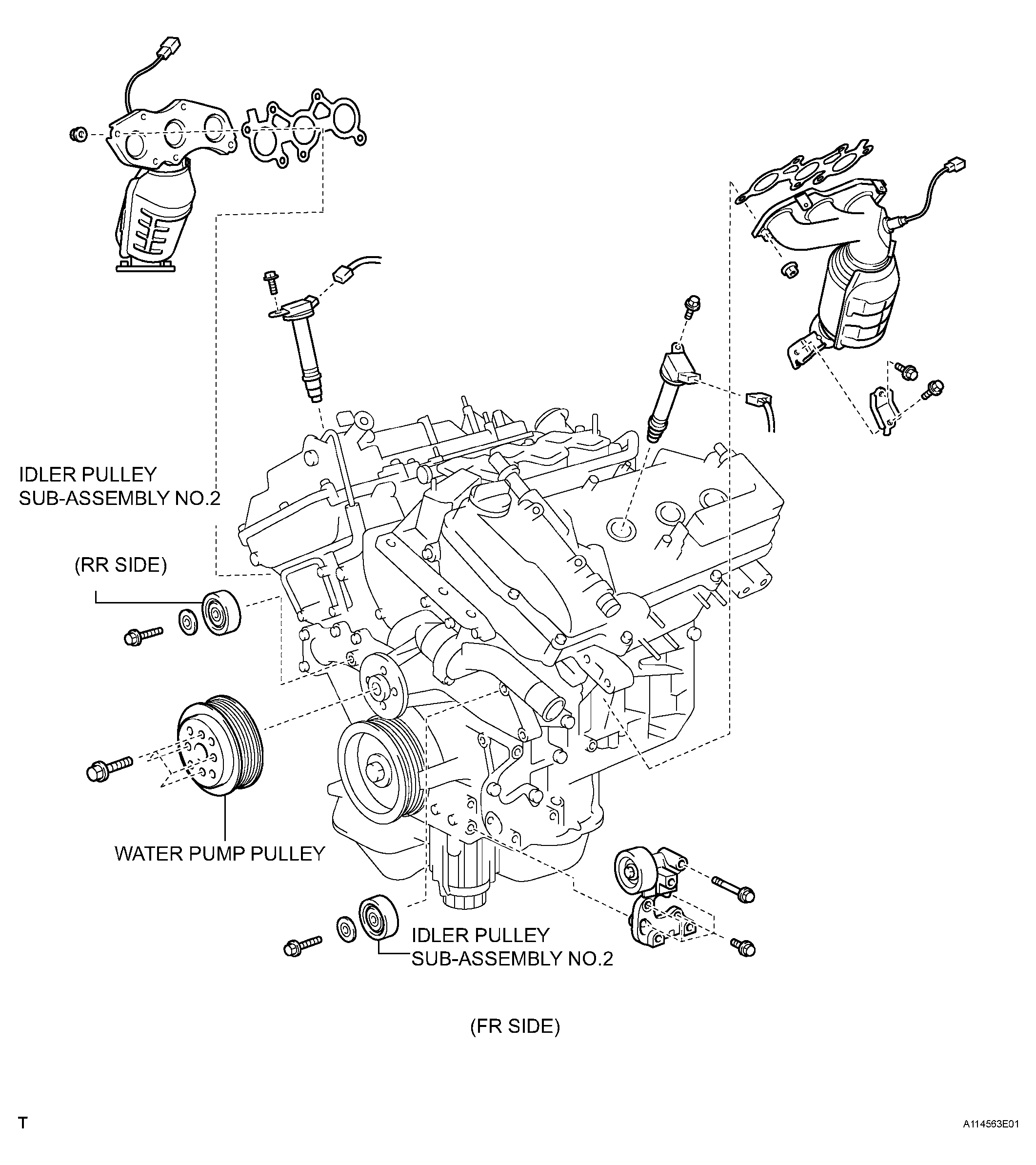

Fig 6: Identifying Water Pump Components (6 Of 7)
G04375278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

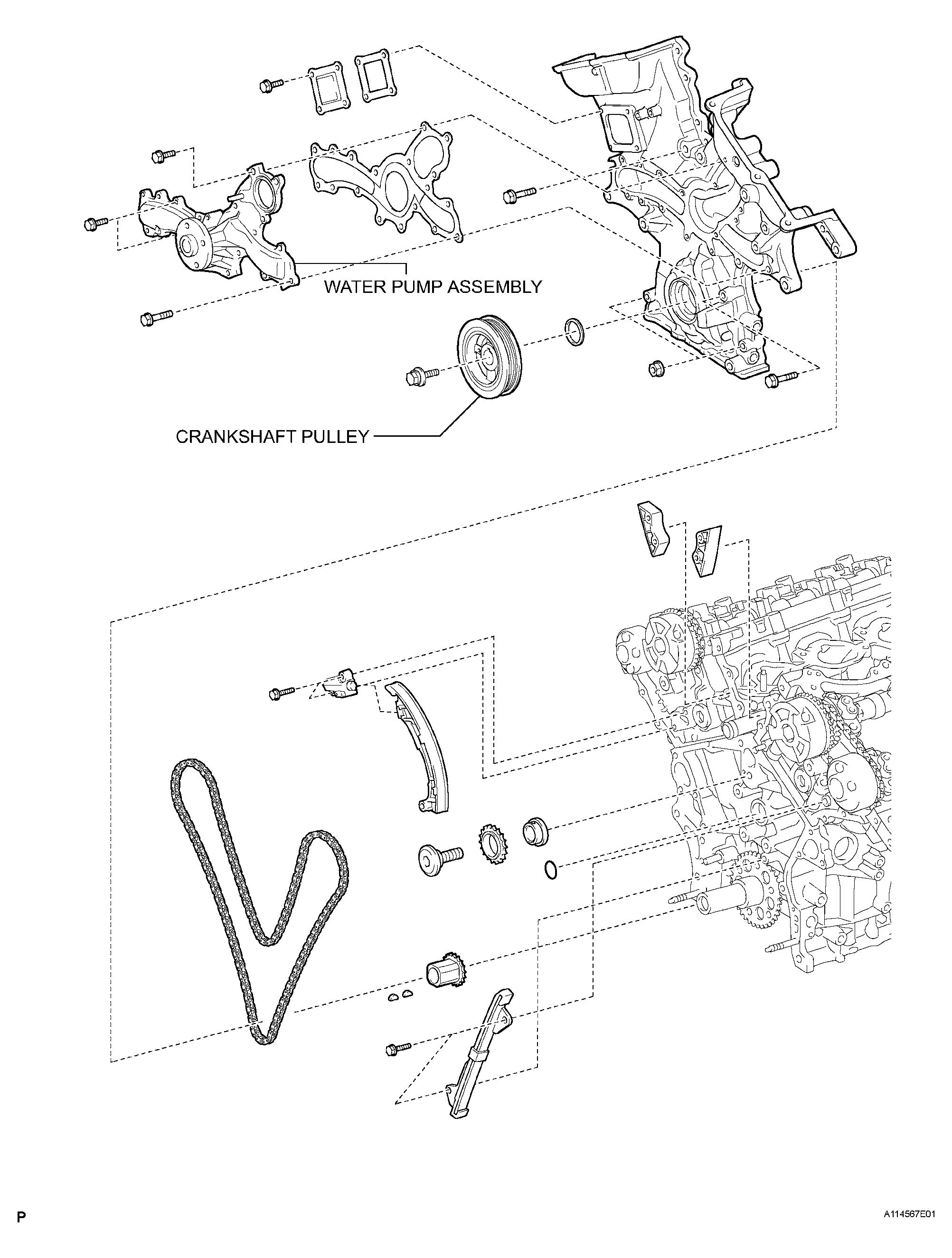

Fig 7: Identifying Water Pump Components (7 Of 7)
G04375279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
